- Browning offers one of the largest selection of application shaft ready sprockets in the industry
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
D80Q16

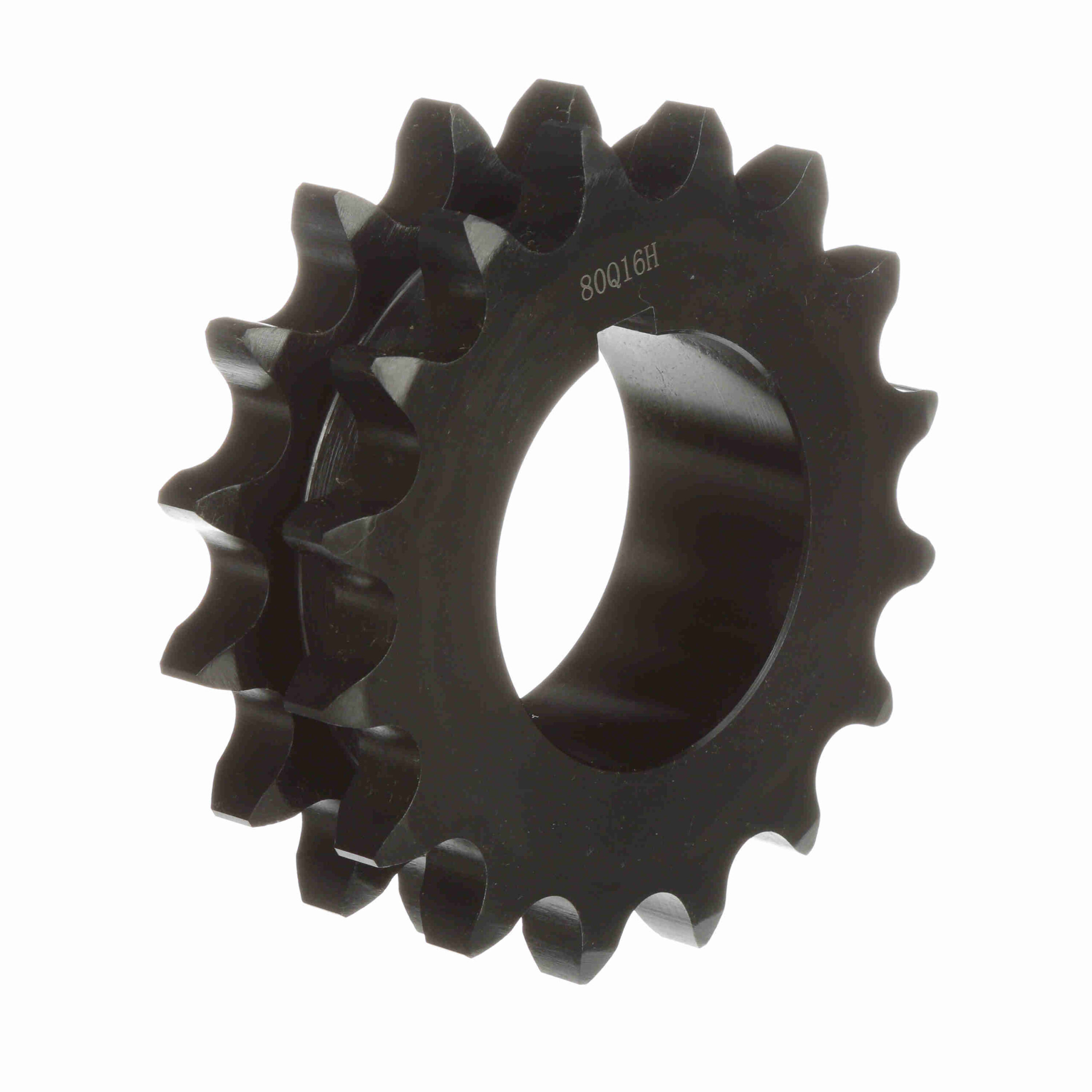

Browning Steel Bushed Bore Roller Chain Sprocket – D80Q16
$498.18
Out of stock
Out of stock
| Number of teeth: | 16 | Material: | Steel |
|---|---|---|---|
| Chain Used: | No. 80, 1 in. Pitch ANSI Chain | Chain Pitch (in): | 1 in |
| Bore (Max) (in): | 2.6875 in | Product Type: | Bushed Roller Chain Sprocket |
| Bushing Used: | Split Taper | Bore (Min) (in): | 0.75 in |
| Pitch Diameter (in): | 5.1258 in | Overall Length (in): | 2.78125 in |
| Outside Diameter (in): | 5.627 in | Bore Type: | Bushed Bore |
| Number of Strands/Width: | 2 | Tooth Width (in): | 0.557 in |
| Length Through Bore (in): | 2.5 in | Hub Diameter (in): | 4.125 in |
| Minimum Bore (in): | 0.75 | Maximum Bore (in): | 2.6875 |
| Hardened Teeth: | No | Hub Projection (in): | 0.844 |
| Pitch Type: | Single | Width Across Tooth Sets: | 1.71 |
| Overall Width (in): | 2.78125 in | UPC: | 662289219605 |
| Weight: | 5.07 LB | Packaged Length: | 6.10 Inches |
| Packaged Width: | 5.90 Inches | Packaged Height: | 2.50 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | China |
