- Browning offers one of the largest selection of application shaft ready sprockets in the industry
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
D60Q22

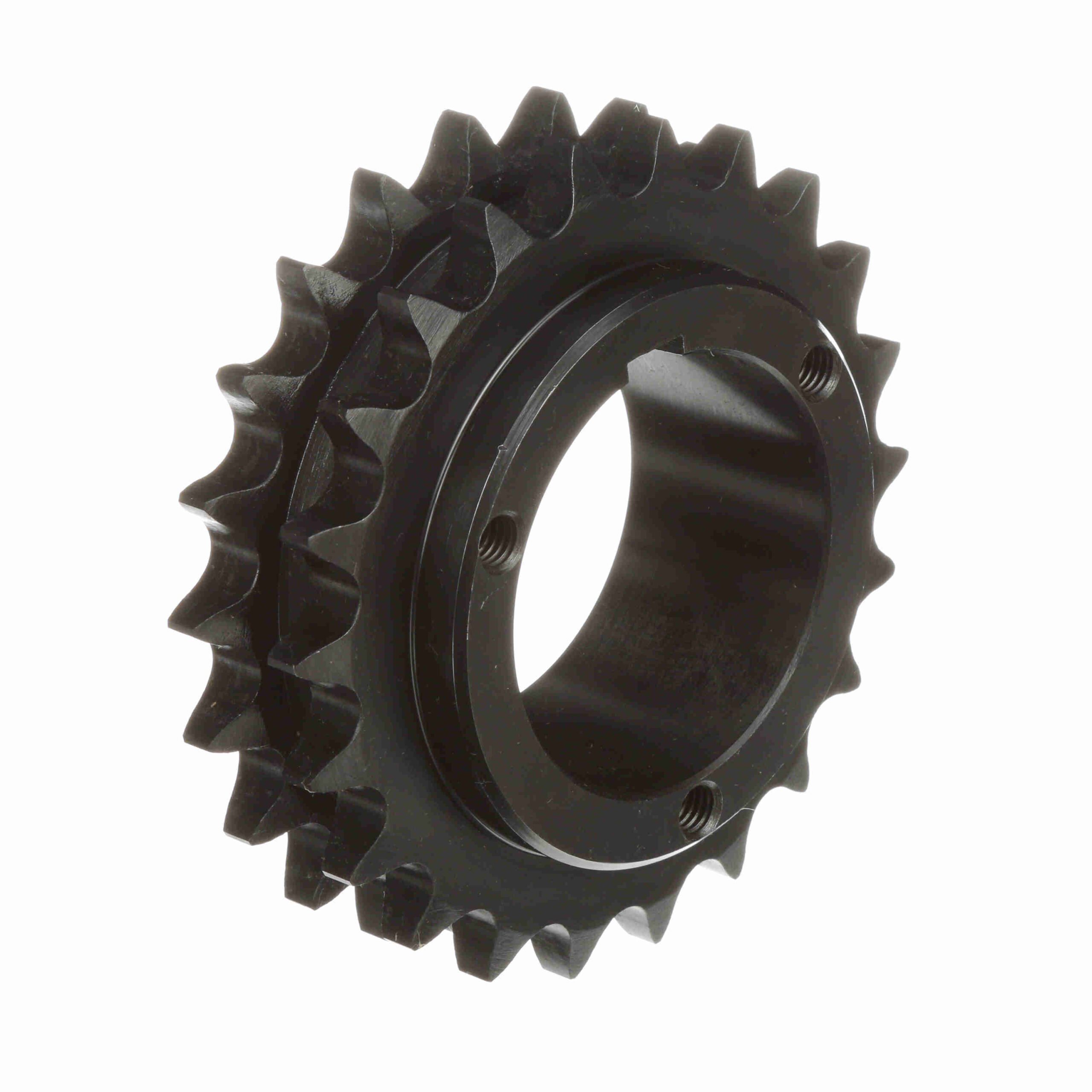

Browning Steel Bushed Bore Roller Chain Sprocket – D60Q22
$453.95
Availability: 2 in stock
Availability: 2 in stock
| Number of teeth: | 22 | Product Type: | Bushed Roller Chain Sprocket |
|---|---|---|---|
| Chain Used: | No. 60, 3/4 in. Pitch ANSI Chain | Pitch Diameter (in): | 5.27 in |
| Bore (Min) (in): | 0.75 in | Chain Pitch (in): | 0.75 in |
| Bushing Used: | Split Taper | Material: | Steel, Hardened Teeth |
| Bore (Max) (in): | 2.6875 in | Outside Diameter (in): | 5.666 in |
| Overall Length (in): | 2.828125 in | Bore Type: | Bushed Bore |
| Number of Strands/Width: | 2 | Hub Diameter (in): | 4.125 in |
| Maximum Bore (in): | 2.6875 | Minimum Bore (in): | 0.75 |
| Width Across Tooth Sets: | 1.341 | Number of Hubs: | 1 |
| Pitch Type: | Single | UPC: | 662289269396 |
| Weight: | 5.35 LB | Packaged Length: | 6.40 Inches |
| Packaged Width: | 6.00 Inches | Packaged Height: | 2.50 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | China |
