- Browning offers one of the largest selection of application shaft ready sprockets in the industry
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
D60P13

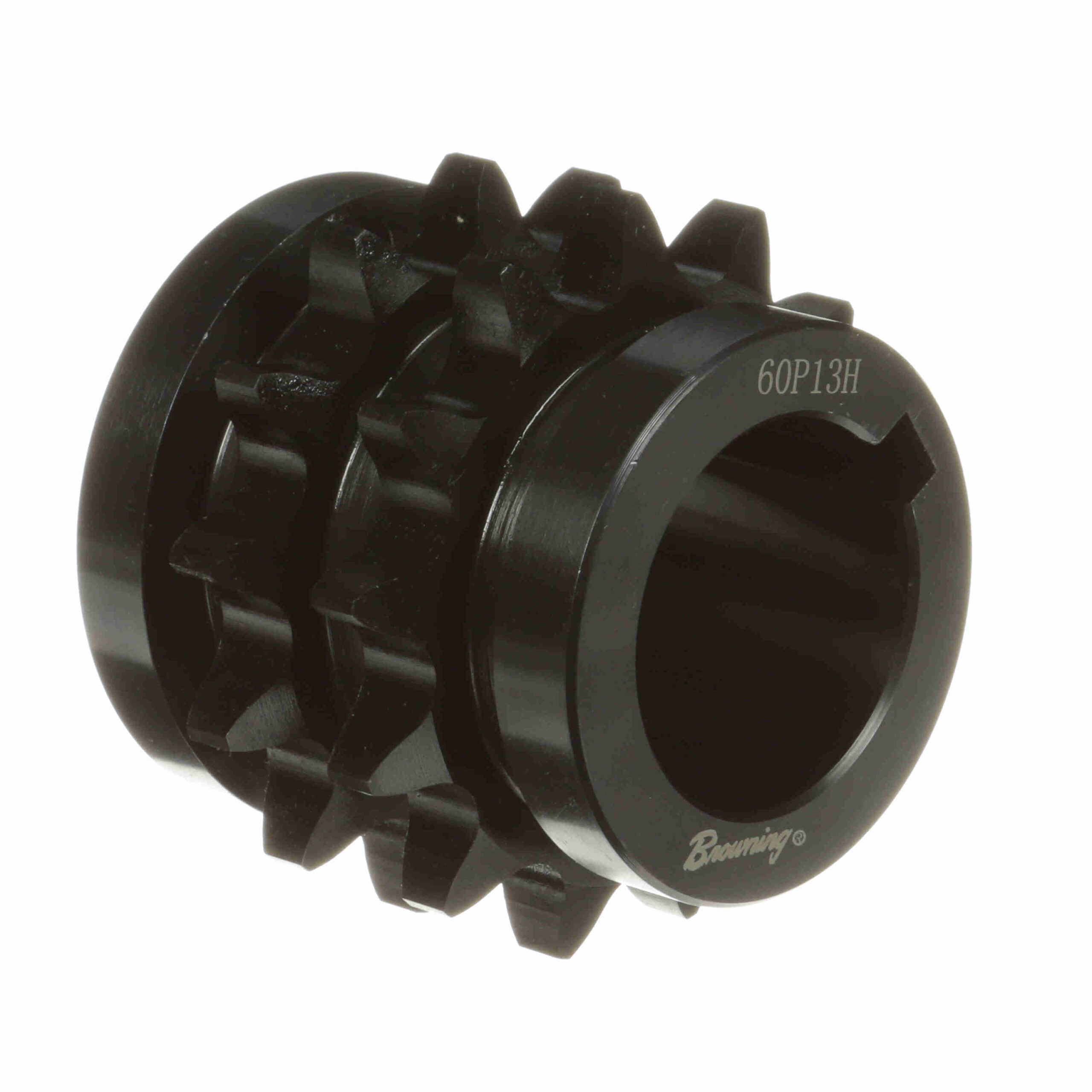

Browning Steel Bushed Bore Roller Chain Sprocket – D60P13
$344.94
Out of stock
Out of stock
| Material: | Steel, Hardened Teeth | Chain Pitch (in): | 0.75 in |
|---|---|---|---|
| Bore (Max) (in): | 1.75 in | Number of teeth: | 13 |
| Bushing Used: | Split Taper | Chain Used: | No. 60, 3/4 in. Pitch ANSI Chain |
| Bore (Min) (in): | 0.5 in | Product Type: | Bushed Roller Chain Sprocket |
| Pitch Diameter (in): | 3.134 in | Overall Length (in): | 3.765625 in |
| Outside Diameter (in): | 3.493 in | Bore Type: | Bushed Bore |
| Number of Strands/Width: | 2 | Hub Diameter (in): | 3 in |
| Maximum Bore (in): | 1.75 | Minimum Bore (in): | 0.5 |
| Number of Hubs: | 1 | Pitch Type: | Single |
| Width Across Tooth Sets: | 1.341 | UPC: | 662289169313 |
| Weight: | 2.45 LB | Packaged Length: | 3.88 Inches |
| Packaged Width: | 3.88 Inches | Packaged Height: | 3.19 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | China |
