- Browning offers one of the largest selection of application shaft ready sprockets in the industry
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
D50Q60

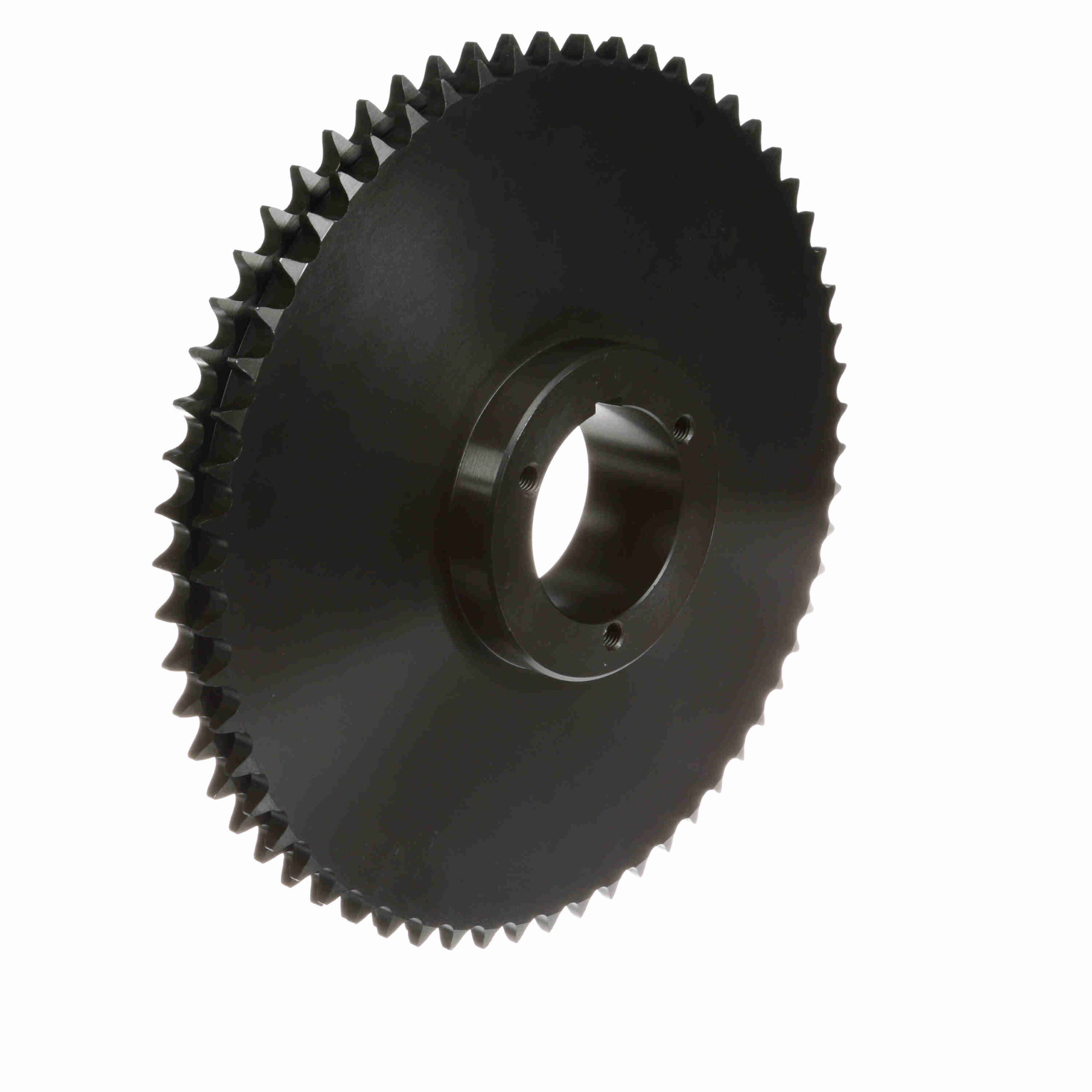

Browning Steel Bushed Bore Roller Chain Sprocket – D50Q60
$1,252.61
Out of stock
Out of stock
| Bushing Used: | Split Taper | Pitch Diameter (in): | 11.9421 in |
|---|---|---|---|
| Bore (Max) (in): | 2.6875 in | Number of teeth: | 60 |
| Material: | Steel | Chain Used: | No. 50, 5/8 in. Pitch ANSI Chain |
| Product Type: | Bushed Roller Chain Sprocket | Bore (Min) (in): | 0.75 in |
| Chain Pitch (in): | 0.625 in | Outside Diameter (in): | 12.301 in |
| Bore Type: | Bushed Bore | Overall Length (in): | 2.828125 in |
| Number of Strands/Width: | 2 | Hub Diameter (in): | 4.125 in |
| Minimum Bore (in): | 0.75 | Maximum Bore (in): | 2.6875 |
| Width Across Tooth Sets: | 1.045 | Pitch Type: | Single |
| Number of Hubs: | 1 | UPC: | 662289259236 |
| Weight: | 30.45 LB | Packaged Length: | 12.75 Inches |
| Packaged Width: | 1.75 Inches | Packaged Height: | 12.75 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | China |
