- Browning offers one of the largest selection of application shaft ready sprockets in the industry
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
D40Q30

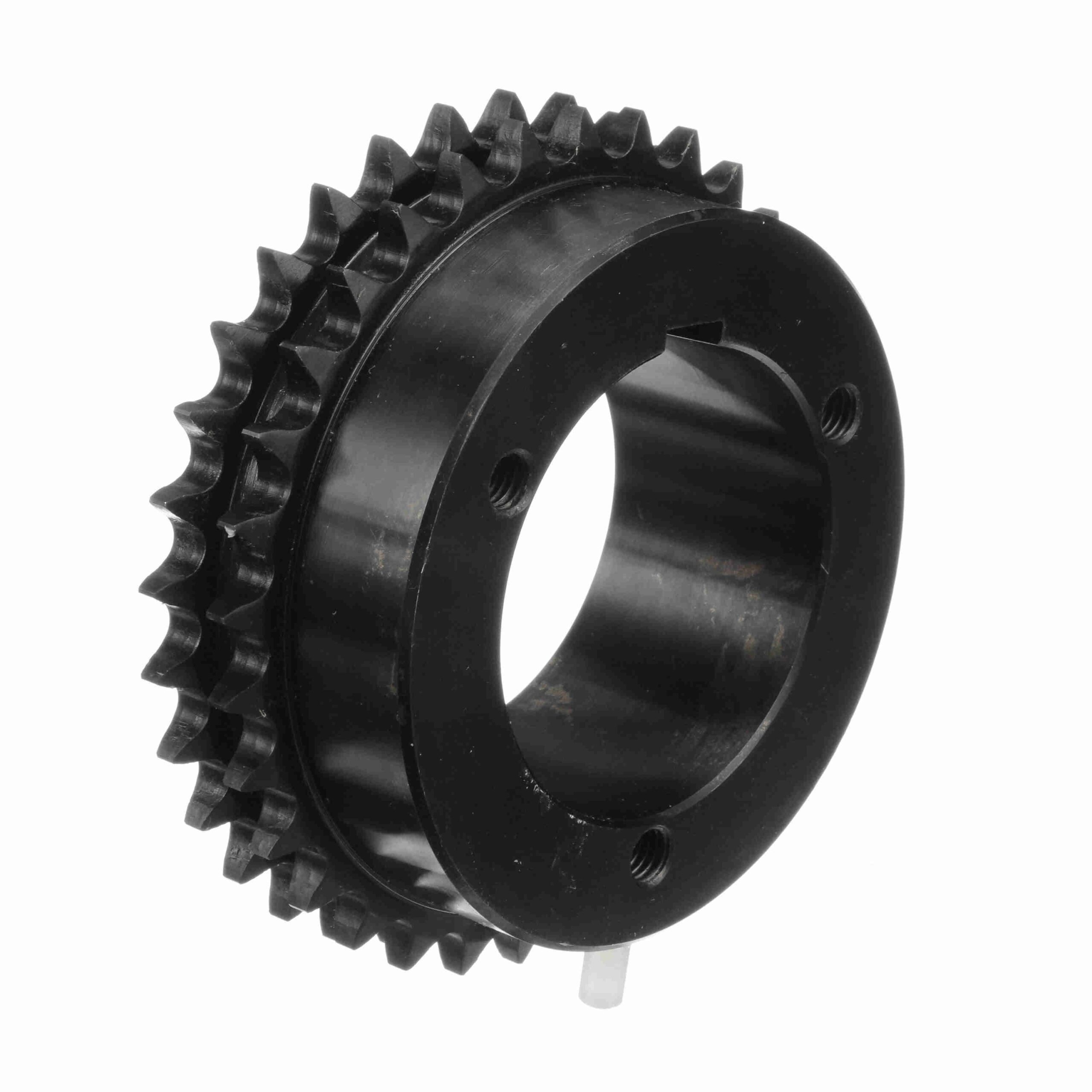

Browning Steel Bushed Bore Roller Chain Sprocket – D40Q30
$288.08
Out of stock
Out of stock
| Bore (Max) (in): | 2.6875 in | Chain Pitch (in): | 0.5 in |
|---|---|---|---|
| Material: | Steel, Hardened Teeth | Bore (Min) (in): | 0.75 in |
| Number of teeth: | 30 | Chain Used: | No. 40, 1/2 in. Pitch ANSI Chain |
| Pitch Diameter (in): | 4.783 in | Product Type: | Bushed Roller Chain Sprocket |
| Bushing Used: | Split Taper | Outside Diameter (in): | 5.057 in |
| Bore Type: | Bushed Bore | Overall Length (in): | 2.792375 in |
| Number of Strands/Width: | 2 | Hub Diameter (in): | 4.125 in |
| Maximum Bore (in): | 2.6875 | Minimum Bore (in): | 0.75 |
| Number of Hubs: | 1 | Width Across Tooth Sets: | 0.841 |
| Pitch Type: | Single | UPC: | 662289278947 |
| Weight: | 3.68 LB | Packaged Length: | 5.20 Inches |
| Packaged Width: | 5.00 Inches | Packaged Height: | 2.10 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | China |
