- Browning offers one of the largest selection of application shaft ready sprockets in the industry
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
D40P28

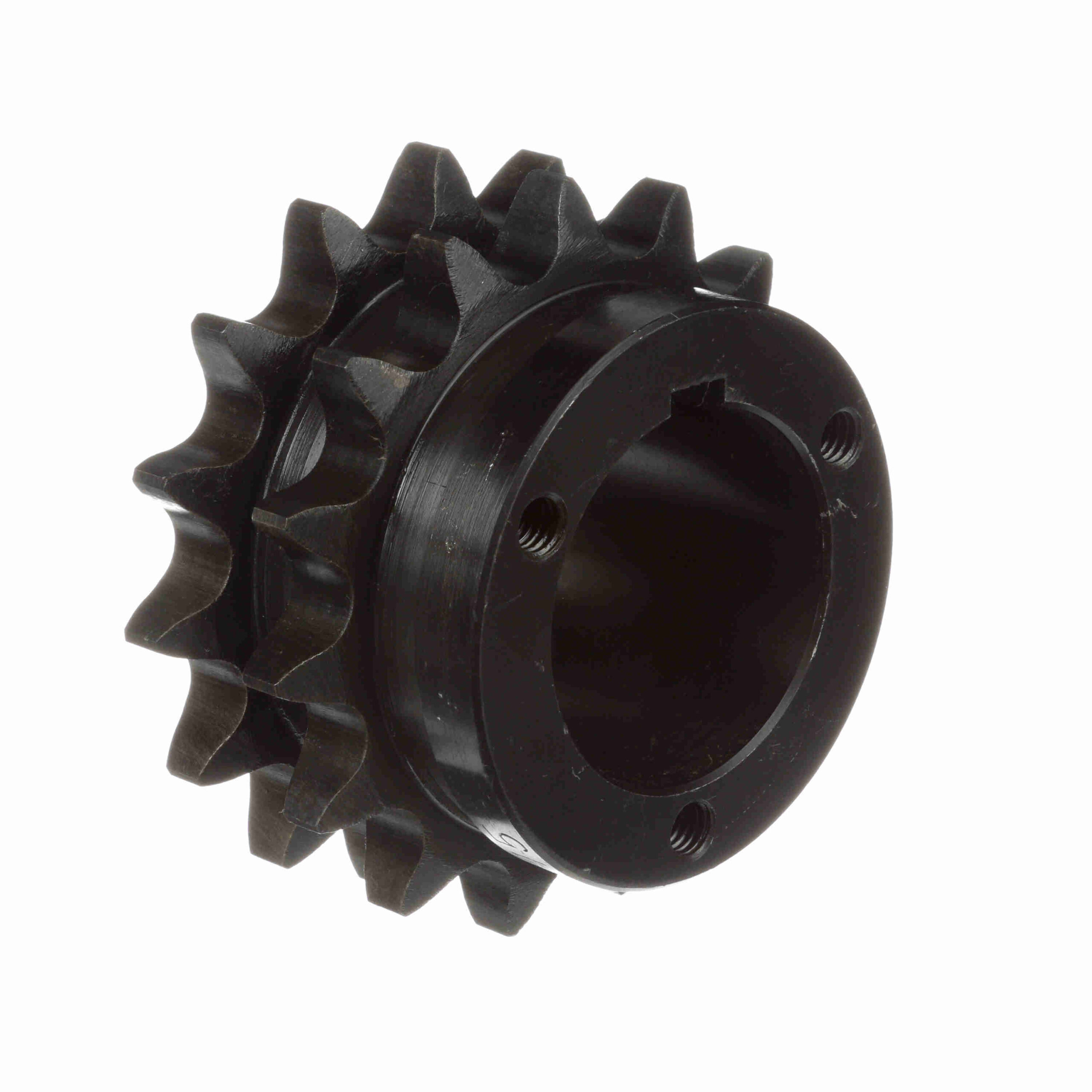

Browning Steel Bushed Bore Roller Chain Sprocket – D40P28
$458.44
Out of stock
Out of stock
| Bore (Min) (in): | 0.5 in | Chain Used: | No. 40, 1/2 in. Pitch ANSI Chain |
|---|---|---|---|
| Pitch Diameter (in): | 4.466 in | Bore (Max) (in): | 1.75 in |
| Product Type: | Bushed Roller Chain Sprocket | Bushing Used: | Split Taper |
| Material: | Steel, Hardened Teeth | Number of teeth: | 28 |
| Chain Pitch (in): | 0.5 in | Outside Diameter (in): | 4.738 in |
| Overall Length (in): | 2.142725 in | Bore Type: | Bushed Bore |
| Number of Strands/Width: | 2 | Hub Diameter (in): | 3 in |
| Maximum Bore (in): | 1.75 | Minimum Bore (in): | 0.5 |
| Pitch Type: | Single | Number of Hubs: | 1 |
| Width Across Tooth Sets: | 0.841 | UPC: | 662289148912 |
| Weight: | 3.20 LB | Packaged Length: | 5.56 Inches |
| Packaged Width: | 5.56 Inches | Packaged Height: | 1.13 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | China |
