- Browning offers one of the largest selection of application shaft ready sprockets in the industry
- Made with Minimum bore, no keyseat or setscrew. This can be bored to size with keyseat and setscrew for a reasonable extra charge.
- Maximum Bore Shown will accommodate standard keyways and setscrews over keyway. Slightly larger bores are possible with no keyway, shallow keyway or setscrew at angle to keyway.
D40B32

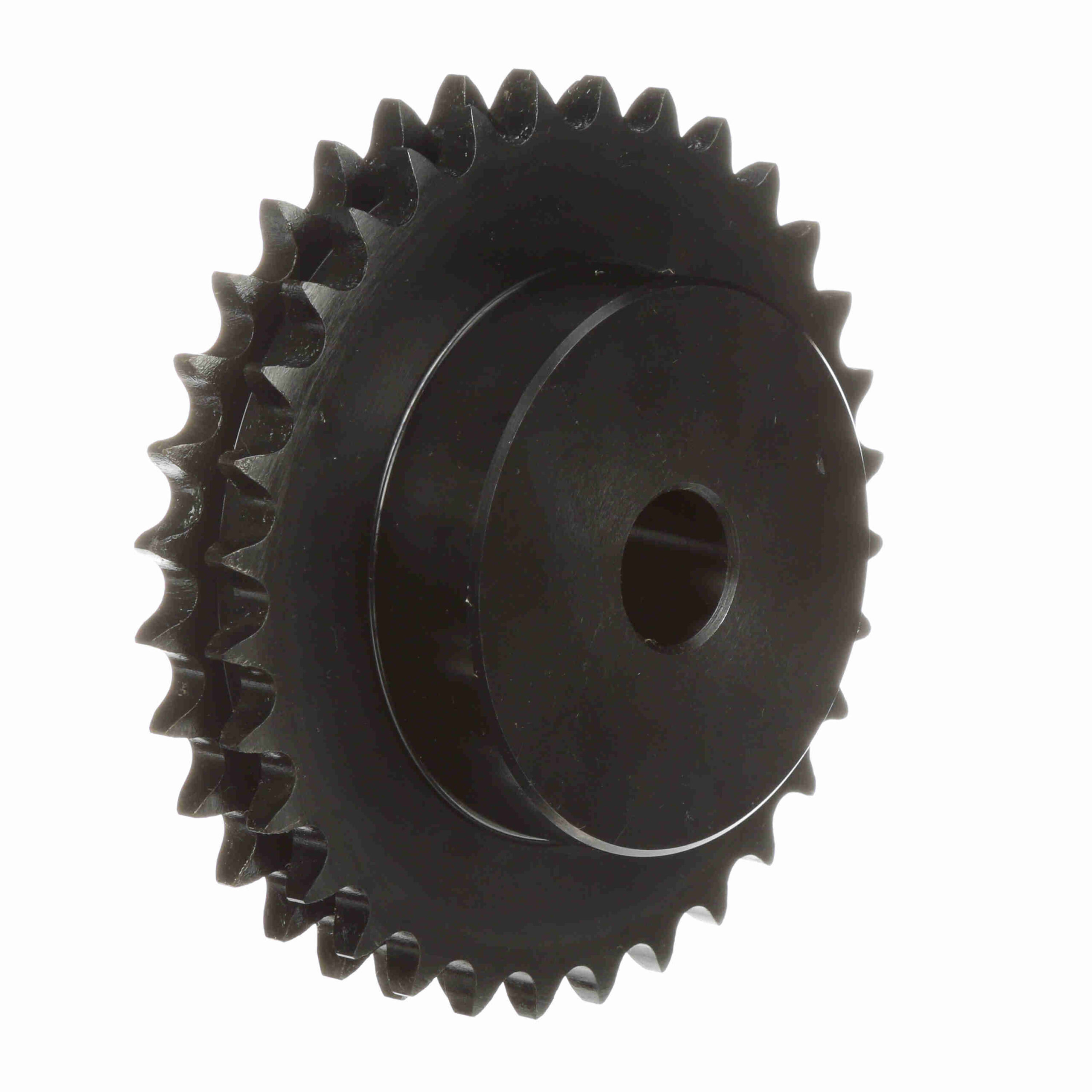

Browning Steel Minimum Plain Bore Roller Chain Sprocket – D40B32
Out of stock
| Chain Used: | No. 40, 1/2 in. Pitch ANSI Chain | Chain Pitch (in): | 0.5 in |
|---|---|---|---|
| Material: | Hardened Steel | Number of teeth: | 32 |
| Product Type: | Type "B" Minimum Bore Double Sprocket | Bore (Max) (in): | 2.25 in |
| Bore Type: | Minimum Plain Bore | Outside Diameter (in): | 5.38 in |
| Pitch Diameter (in): | 5.101 in | Bore (in): | 0.875 in |
| Number of Strands/Width: | 2 | Hub Type: | Type DB |
| Tooth Width (in): | 0.275 in | Hub Diameter (in): | 3.25 in |
| Length Through Bore (in): | 1.625 in | Minimum Bore (in): | 0.875 |
| Maximum Bore (in): | 2.25 | Hardened Teeth: | With Hardened Teeth |
| Pitch Type: | Double | Width Across Tooth Sets: | 0.841 |
| Hub Projection (in): | 0.78125 | Number of Hubs: | 1 |
| UPC: | 662289262021 | Weight: | 6.08 LB |
| Packaged Length: | 6.10 Inches | Packaged Width: | 6.20 Inches |
| Packaged Height: | 2.00 Inches | HTC: | 8483.90.1050 |
| Country of Origin: | China |
