- Browning offers one of the largest selection of application shaft ready sprockets in the industry
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
D100R19

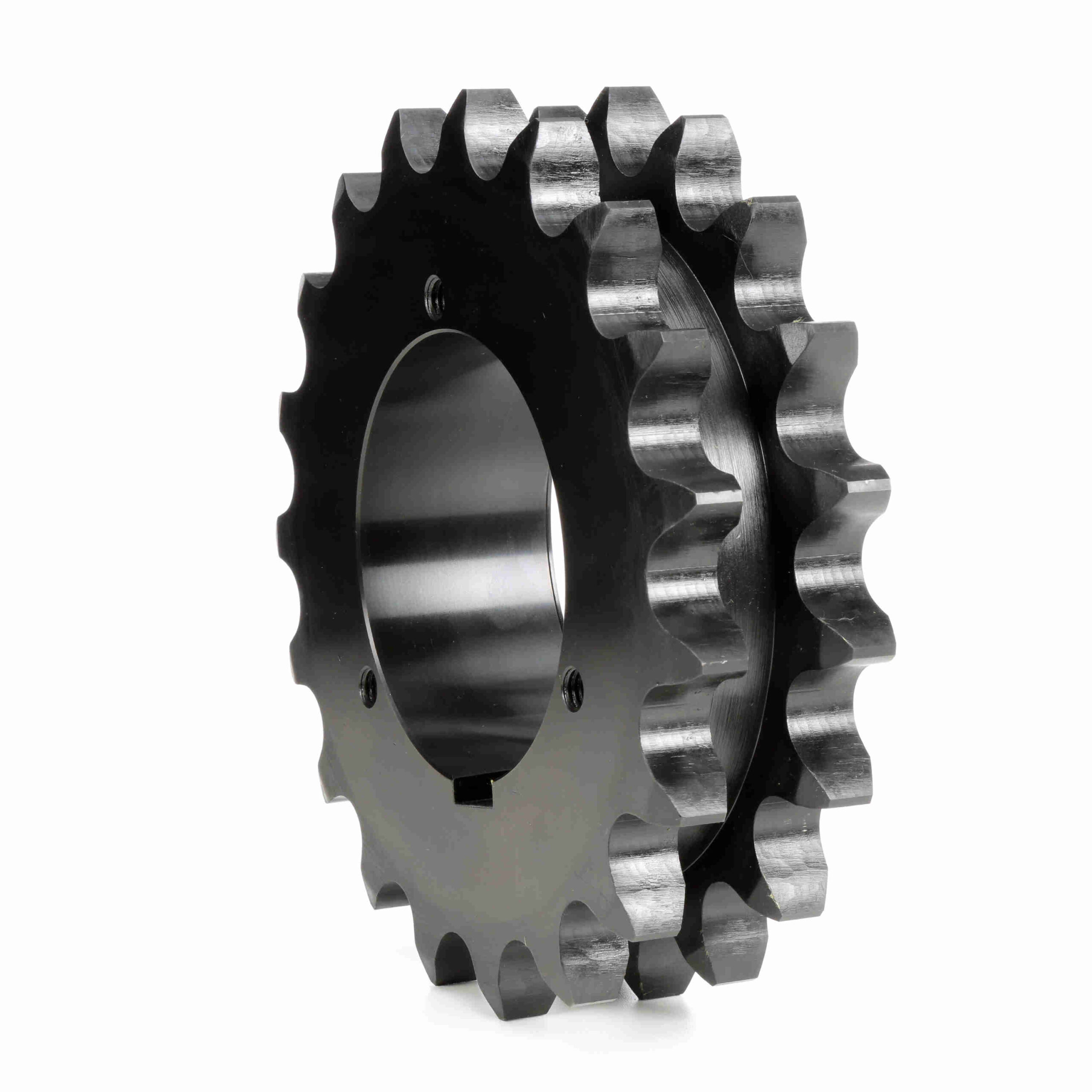

Browning Steel Bushed Bore Roller Chain Sprocket – D100R19
$1,262.85
Out of stock
Out of stock
| Material: | Steel | Bore (Min) (in): | 1.125 in |
|---|---|---|---|
| Bushing Used: | Split Taper | Pitch Diameter (in): | 7.5944 in |
| Product Type: | Bushed Roller Chain Sprocket | Chain Pitch (in): | 1.25 in |
| Bore (Max) (in): | 3.75 in | Chain Used: | No. 100, 1-1/4 in. Pitch ANSI Chain |
| Number of teeth: | 19 | Outside Diameter (in): | 8.241 in |
| Bore Type: | Bushed Bore | Overall Length (in): | 3.211375 in |
| Number of Strands/Width: | 2 | Hub Diameter (in): | 5.375 in |
| Minimum Bore (in): | 1.125 | Maximum Bore (in): | 3.75 |
| Width Across Tooth Sets: | 2.077 | Pitch Type: | Single |
| UPC: | 662289189946 | Weight: | 15.44 LB |
| Packaged Length: | 10.80 Inches | Packaged Width: | 10.40 Inches |
| Packaged Height: | 2.60 Inches | HTC: | 8483.90.1050 |
| Country of Origin: | China |
