- Browning offers one of the largest selection of application shaft ready sprockets in the industry
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
D100Q15

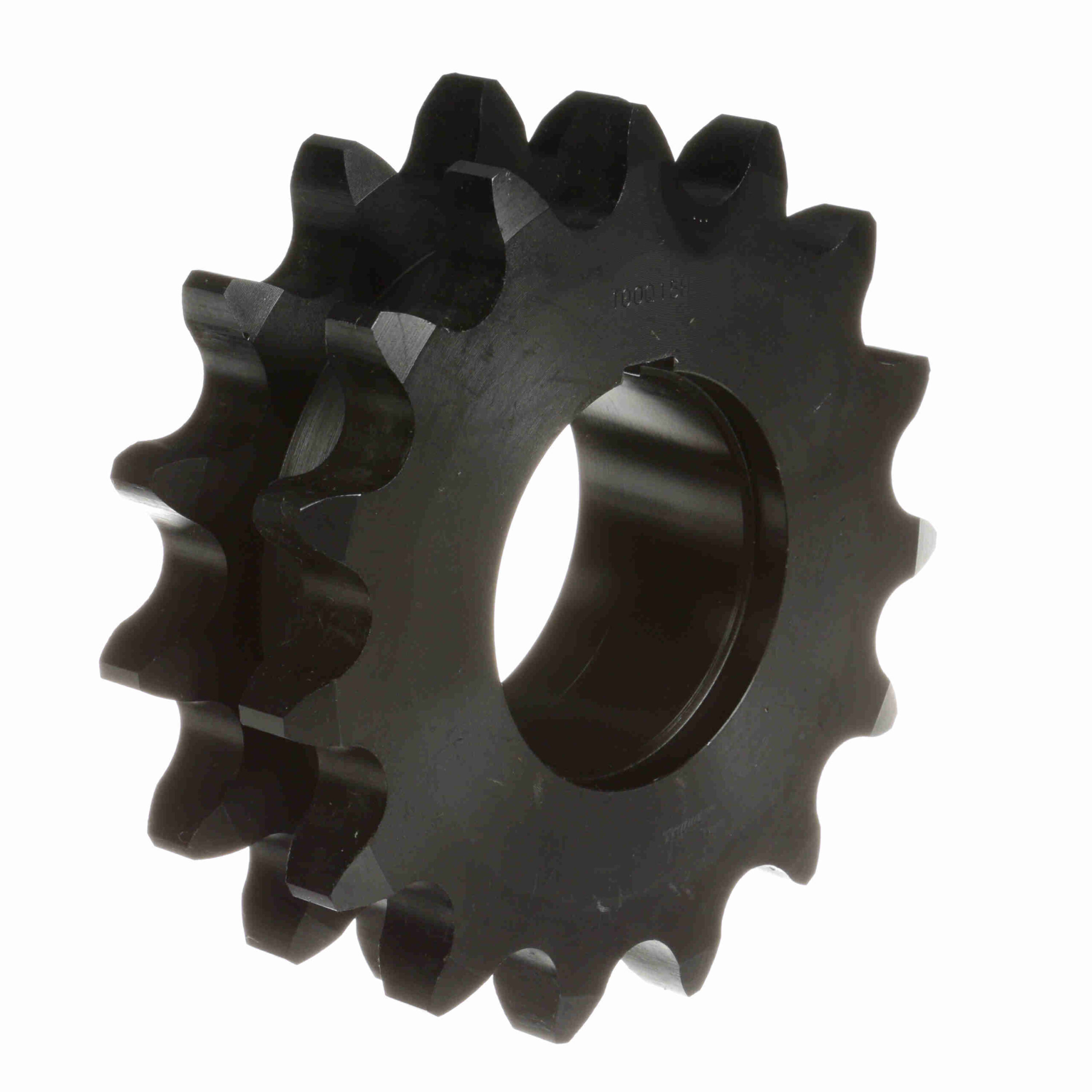

Browning Steel Bushed Bore Roller Chain Sprocket – D100Q15
$1,197.13
Availability: 2 in stock
Availability: 2 in stock
| Chain Pitch (in): | 1.25 in | Material: | Steel, Hardened Teeth |
|---|---|---|---|
| Bore (Min) (in): | 0.75 in | Number of teeth: | 15 |
| Chain Used: | No. 100, 1-1/4 in. Pitch ANSI Chain | Product Type: | Bushed Roller Chain Sprocket |
| Pitch Diameter (in): | 6.0122 in | Bushing Used: | Split Taper |
| Bore (Max) (in): | 2.6875 in | Overall Length (in): | 3.15625 in |
| Outside Diameter (in): | 6.631 in | Bore Type: | Bushed Bore |
| Number of Strands/Width: | 2 | Hub Diameter (in): | 4.125 in |
| Minimum Bore (in): | 0.75 | Maximum Bore (in): | 2.6875 |
| Width Across Tooth Sets: | 2.077 | Pitch Type: | Single |
| UPC: | 662289179831 | Weight: | 9.73 LB |
| Packaged Length: | 7.40 Inches | Packaged Width: | 7.20 Inches |
| Packaged Height: | 2.30 Inches | HTC: | 8483.90.1050 |
| Country of Origin: | China |
