- Browning offers one of the largest selection of application shaft ready sprockets in the industry
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
D100Q14

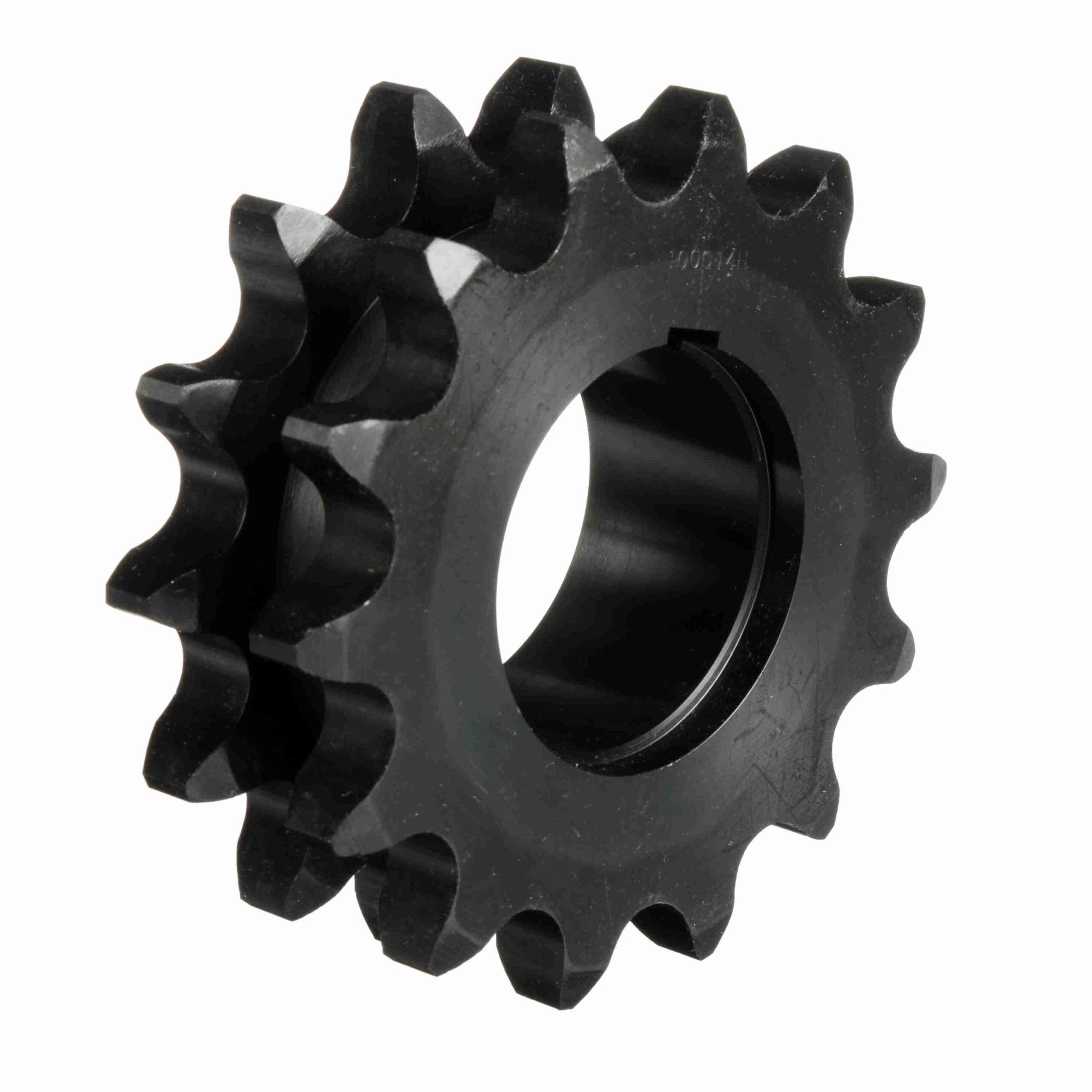

Browning Steel Bushed Bore Roller Chain Sprocket – D100Q14
$747.99
Out of stock
Out of stock
| Chain Used: | No. 100, 1-1/4 in. Pitch ANSI Chain | Bore (Max) (in): | 2.6875 in |
|---|---|---|---|
| Chain Pitch (in): | 1.25 in | Material: | Steel, Hardened Teeth |
| Number of teeth: | 14 | Bushing Used: | Split Taper |
| Product Type: | Bushed Roller Chain Sprocket | Pitch Diameter (in): | 5.6174 in |
| Bore (Min) (in): | 0.75 in | Outside Diameter (in): | 6.227 in |
| Overall Length (in): | 3.15625 in | Bore Type: | Bushed Bore |
| Number of Strands/Width: | 2 | Hub Diameter (in): | 4.125 in |
| Maximum Bore (in): | 2.6875 | Minimum Bore (in): | 0.75 |
| Pitch Type: | Single | Width Across Tooth Sets: | 2.077 |
| UPC: | 662289249886 | Weight: | 8.36 LB |
| Packaged Length: | 8.40 Inches | Packaged Width: | 8.60 Inches |
| Packaged Height: | 2.40 Inches | HTC: | 8483.90.1050 |
| Country of Origin: | China |
