- Three-Piece Commercial Construction
- Heat Treated, Chrome Plated Ball
- Heat Treated, Plated Alloy steel housing
- Male External Threads
- Delrin Race
CTMD 8

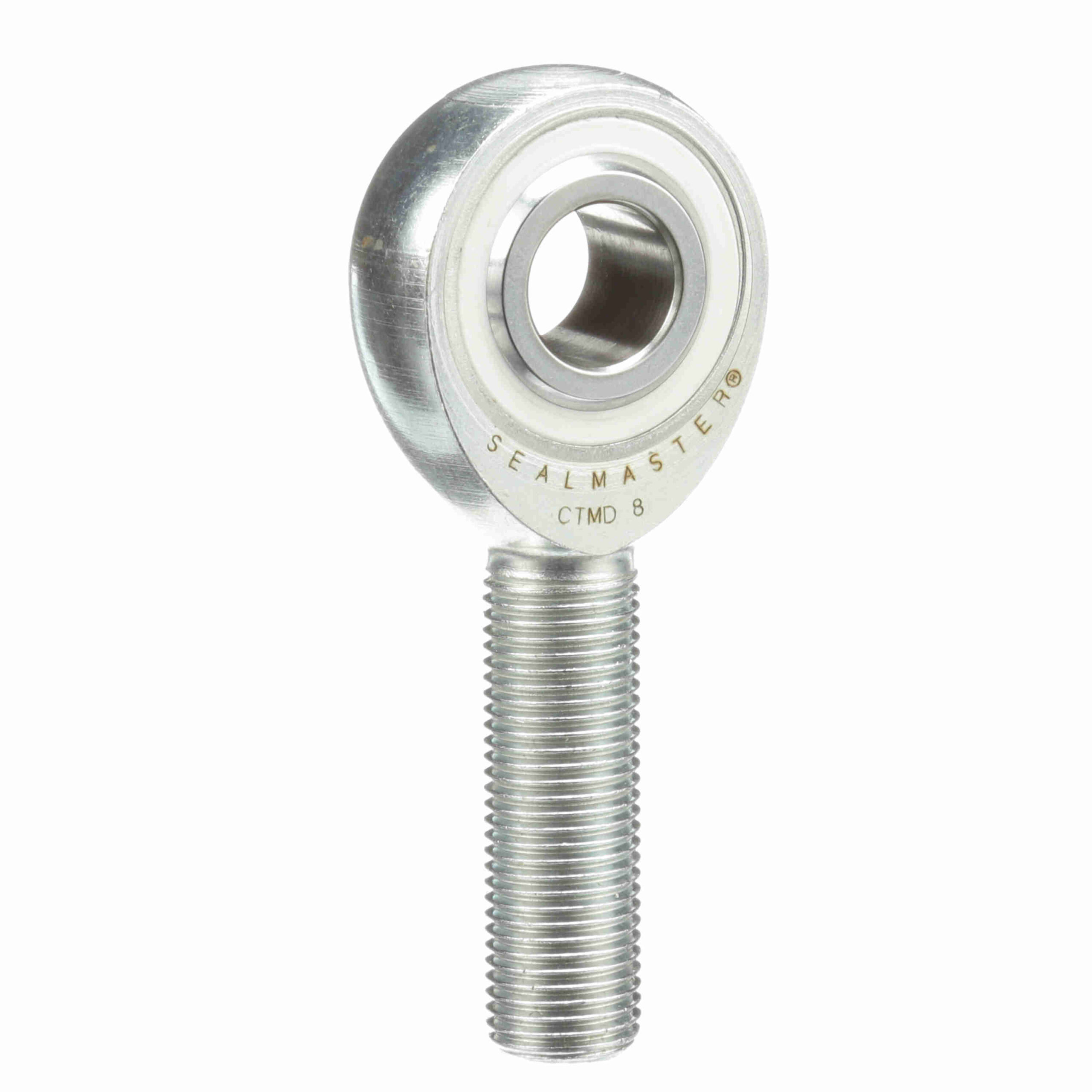

Sealmaster Male Rod End Bearing – Three-Piece Rod End DELRIN Race – CTMD 8
$26.47
Availability: 21 in stock
Availability: 21 in stock
| Outer Material: | Carbon Steel - Corrosion Resistant Plating | Lubrication Type: | Self Lubricating |
|---|---|---|---|
| Ball Material: | Alloy Steel - Heat Treated - Chrome Plated | Thread Type: | UNF |
| Zerk Fitting SW: | N | Liner: | DELRIN* Liner |
| Bearing Type: | Rod End | Configuration: | Male |
| Race Material: | DELRIN | Construction: | Three-Piece Rod End |
| Product Selection Available SW: | Y | Series: | Commercial |
| Housing Style: | Male Rod End | Maximum Ambient Temperature: | 150 |
| Misalignment Angle - a Deg. +/-: | 6 | Product Type: | CTMD |
| Axial Load: | 342 | Relubricatable: | Self |
| Thread: | RH | Lubrication: | No Zerk Fitting |
| Type: | Male Rod End | Max Static Radial Load: | 3, 420 |
| Class: | Commercial | Lubrication Method: | Self Lubricating |
| UPC: | 662288725831 | Weight: | 0.24 LB |
| Packaged Length: | 3.09 Inches | Packaged Width: | 1.31 Inches |
| Packaged Height: | 0.63 Inches | HTC: | 8483.30.8055 |
| Country of Origin: | Mexico |
