- High phosphorous electroless nickel plated 52100 steel for exceptional corrosion resistance
- High performance triple lip contact seal design provides multi-directional sealing with 304 stainless steel body and flinger to minimize contamination ingress and retain lubrication
- High strength composite with reinforced stainless steel bolt ferrules for high load capacity and increased strength around the bolt holes.
- Solid construction with machined base was designed for minimal gaps and no fillers
- Skwezloc® Concentric locking for near perfect concentricity with fluoropolymer coated collar and corrosion resistant cap screw
- Exclusive locking pin and dimple system provides a direct lubricant into the bearing cavity and ball path instead of around a lubrication groove, prevents outer ring rotation.
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Tapered Lands ensures that lubricant will be easily redirected back to the raceway.
- USDA H1 complaint food grade grease
CRTBC-PN23T

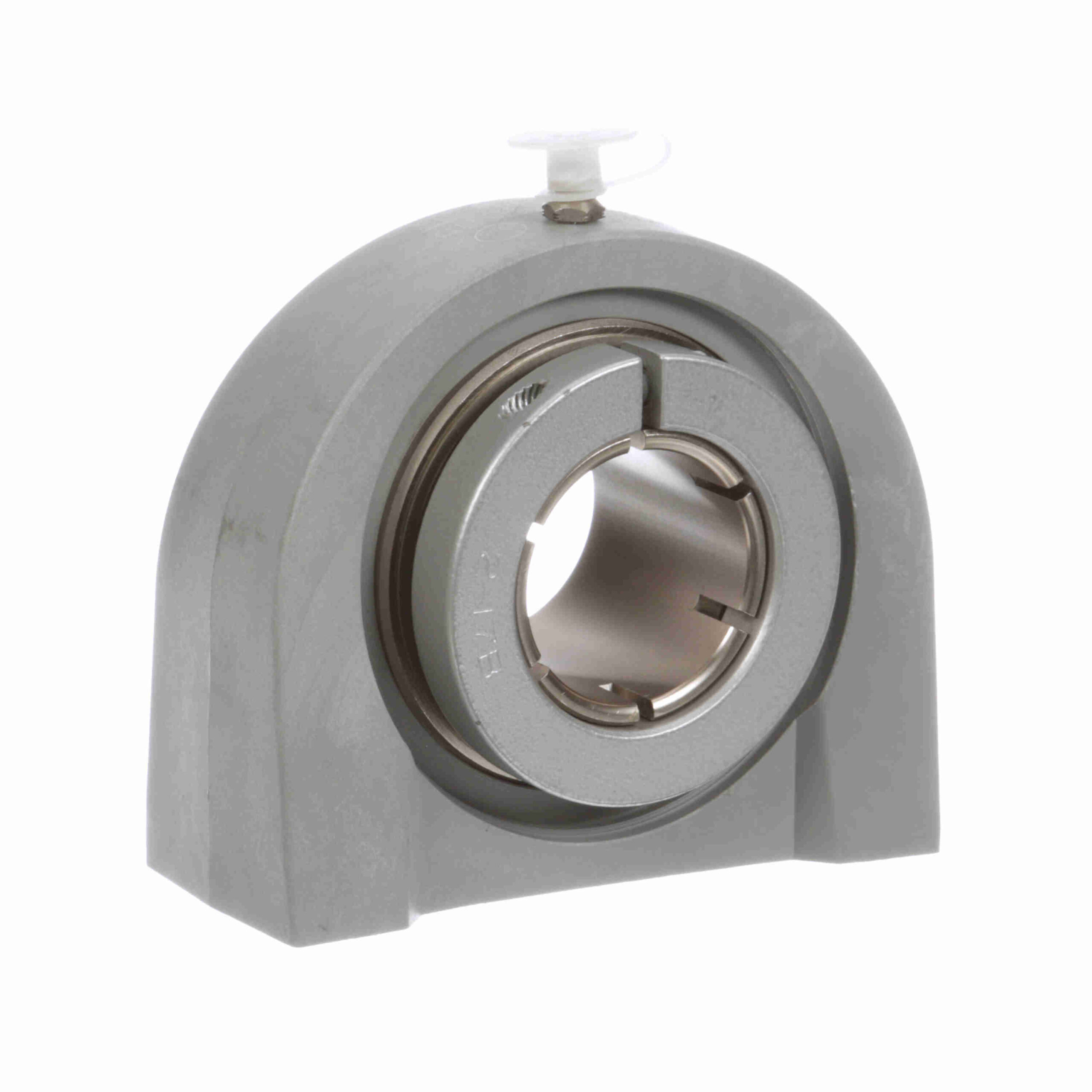

Sealmaster Mounted Composite Tapped Base Pillow Block Ball Bearing – 52100 Bearing Steel, Phosphorus Nickel Coated – Concentric Lock – Corrosion Resistant – CRTBC-PN23T
$1,477.93
Out of stock
Out of stock
| Rolling Element: | Ball Bearing | Insert Material: | 52100 Bearing Steel, Phosphorus Nickel Coated |
|---|---|---|---|
| Seal Type: | Multi-Lip Contact Seal | Measure Units: | Inch |
| Housing Base: | Solid | Internal Clearance: | Standard |
| Radial Dynamic Load Capacity (lb): | 5, 782 lb | Bore Shape: | Straight |
| Misalignment: | ±2.0° Misalignment - Static Only | Housing Construction: | One Piece |
| Replaceable Insert: | Yes | Outer Ring Land Profile: | Standard |
| End Cap: | Yes | Options: | Corrosion Resistant |
| Misalignment Type: | Static Only | Platform: | PN Gold |
| Housing Color: | Light Gray | Bearing Insert Coating: | Phosphorus Nickel Coated |
| Certifications: | IP69K | Radial Static Load Capacity (lb): | 3, 493 lb |
| Cage Material: | PPS | Housing Type: | Pillow Block, Tapped Base |
| Maximum Speed (RPM): | 2000 rpm | Fixed vs. Expansion: | Fixed |
| Retainer Type: | Land Riding Retainer | Lubrication Type: | Calcium Sulfonate NLGI 2 NSF H1 Food Grade Grease |
| Housing Material: | Composite | Duty/Series: | Standard Duty |
| Grease Fitting Thread Size: | 1/4-28 NF | Housing Style: | Pillow Block |
| Locking Type: | Concentric | Ability to Relubricate: | Yes |
| Maximum Operating Temperature (F): | 220 °F | Insert Number: | PN-23T |
| Inner Race Heat Treat Method: | Zone-Hardened | UPC: | 662461000000 |
| Weight: | 2.27 LB | Packaged Length: | 5 Inches |
| Packaged Width: | 2 Inches | Packaged Height: | 5 Inches |
| HTC: | 8483.20.8040 | Country of Origin: | United States of America |
