- High phosphorous electroless nickel plated 52100 steel for exceptional corrosion resistance
- High performance triple lip contact seal design provides multi-directional sealing with 304 stainless steel body and flinger to minimize contamination ingress and retain lubrication
- High quality solid base designed investment cast passivated 316 stainless steel casting providing the highest amount corrosion resistance currently available for stainless steel housings.
- Solid construction with machined base was designed for minimal gaps and no fillers
- Zone hardened inner ring with 120° spacing setscrew lock with corrosion resistant setscrews
- Exclusive locking pin and dimple system provides a direct lubricant into the bearing cavity and ball path instead of around a lubrication groove, prevents outer ring rotation.
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Tapered Lands ensures that lubricant will be easily redirected back to the raceway.
- USDA H1 complaint food grade grease
CRPS-PN209

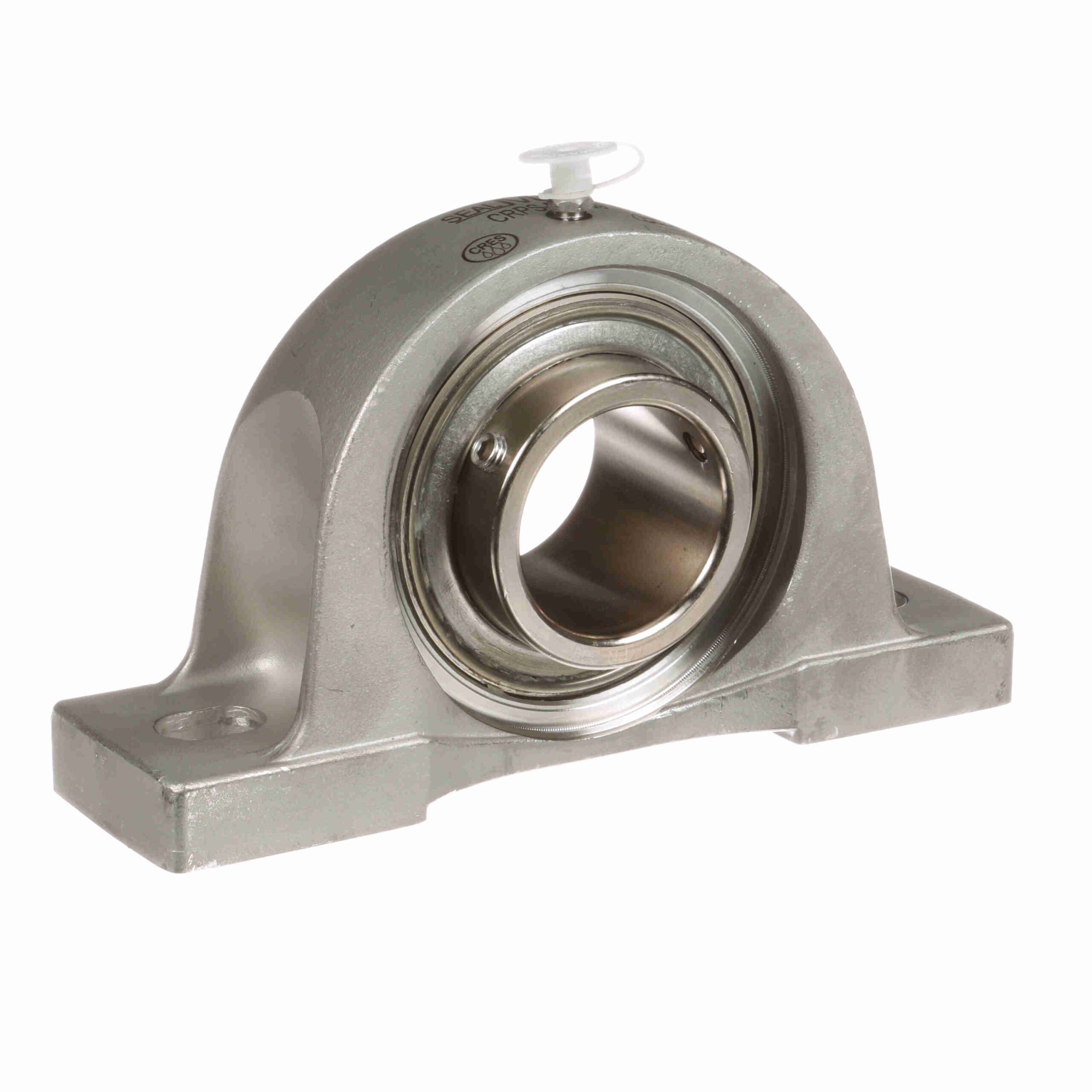

Sealmaster Mounted Stainless Steel Two Bolt Pillow Block Ball Bearing – 52100 Bearing Steel, Phosphorus Nickel Coated – Setscrew Lock – Corrosion Resistant – CRPS-PN209
$1,122.66
Out of stock
Out of stock
| Measure Units: | Metric | Insert Material: | 52100 Bearing Steel, Phosphorus Nickel Coated |
|---|---|---|---|
| Internal Clearance: | Standard | Rolling Element: | Ball Bearing |
| Housing Base: | Solid | Seal Type: | Multi-Lip Contact Seal |
| Bore Shape: | Straight | Radial Dynamic Load Capacity (lb): | 7, 901 lb |
| Housing Construction: | One Piece | Misalignment: | ±2.0° Misalignment - Static Only |
| Set Screw Thread: | 5/16-24 UNF X .313 | Bearing Insert Coating: | Phosphorus Nickel Coated |
| Replaceable Insert: | Yes | Platform: | PN Gold |
| Housing Color: | Silver | Options: | Corrosion Resistant |
| Outer Ring Land Profile: | Standard | End Cap: | Yes |
| Misalignment Type: | Static Only | Certifications: | IP69K |
| Radial Static Load Capacity (lb): | 5, 139 lb | Cage Material: | PPS |
| Housing Style: | Pillow Block | Retainer Type: | Land Riding Retainer |
| Fixed vs. Expansion: | Fixed | Housing Material: | Stainless Steel |
| Duty/Series: | Standard Duty | Lubrication Type: | Calcium Sulfonate NLGI 2 NSF H1 Food Grade Grease |
| Locking Type: | Setscrew | Grease Fitting Thread Size: | 1/4-28 NF |
| Housing Type: | Pillow Block, Two Bolt | Maximum Speed (RPM): | 1600 rpm |
| Insert Number: | PN-209 | Ability to Relubricate: | Yes |
| Maximum Operating Temperature (F): | 220 °F | Inner Race Heat Treat Method: | Zone-Hardened |
| UPC: | 662461000000 | Weight: | 7.12 LB |
| Packaged Length: | 5.19 Inches | Packaged Width: | 2.13 Inches |
| Packaged Height: | 7.81 Inches | HTC: | 8483.20.8040 |
| Country of Origin: | United States of America |
