- High phosphorous electroless nickel plated 52100 steel for exceptional corrosion resistance
- High performance triple lip contact seal design provides multi-directional sealing with 304 stainless steel body and flinger to minimize contamination ingress and retain lubrication
- High quality solid base designed investment cast passivated 316 stainless steel casting providing the highest amount corrosion resistance currently available for stainless steel housings.
- Solid construction with machined base was designed for minimal gaps and no fillers
- Zone hardened inner ring with 120° spacing setscrew lock with corrosion resistant setscrews
- Exclusive locking pin and dimple system provides a direct lubricant into the bearing cavity and ball path instead of around a lubrication groove, prevents outer ring rotation.
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Tapered Lands ensures that lubricant will be easily redirected back to the raceway.
- USDA H1 complaint food grade grease
CRPS-PN19

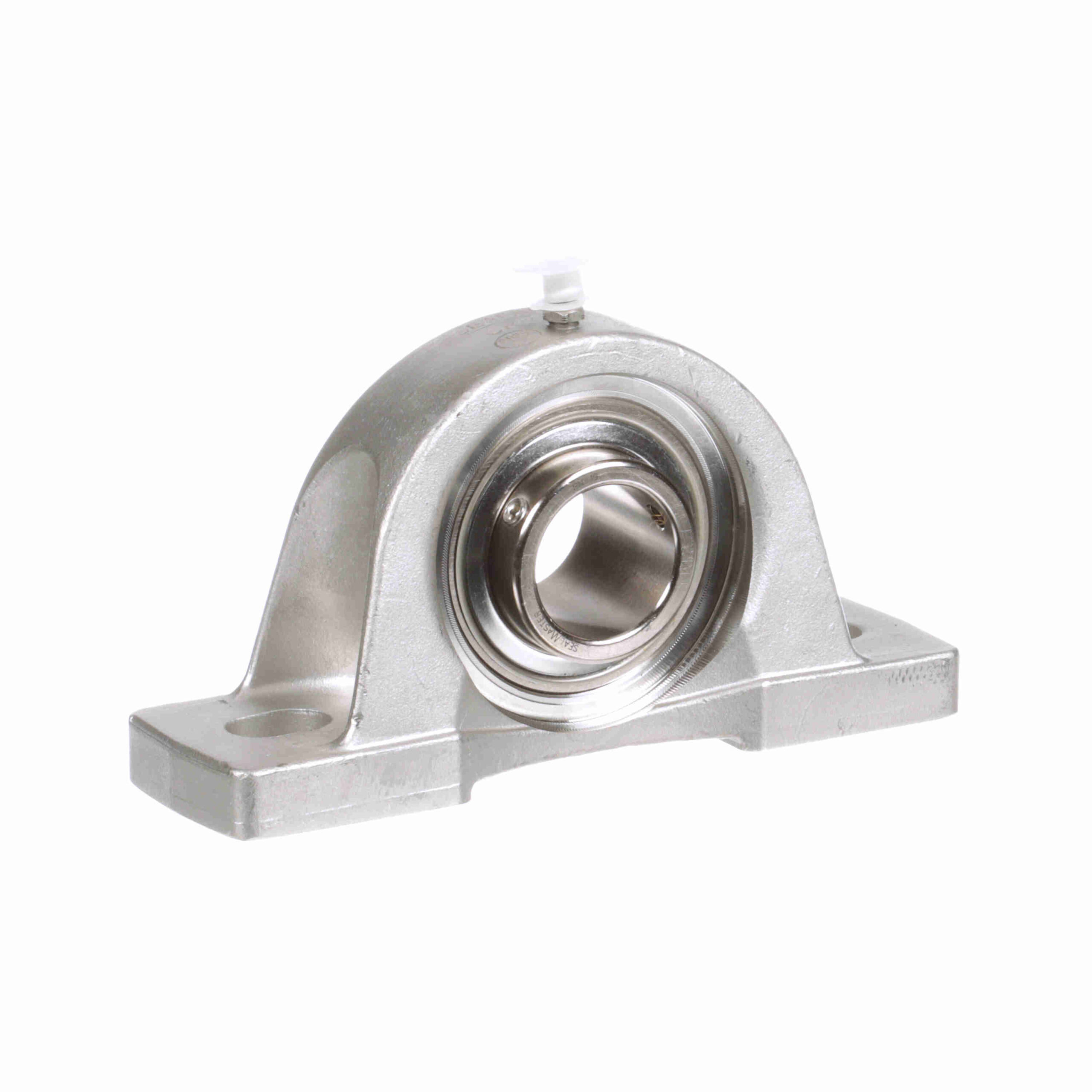

Sealmaster Mounted Stainless Steel Two Bolt Pillow Block Ball Bearing – 52100 Bearing Steel, Phosphorus Nickel Coated – Setscrew Lock – Corrosion Resistant – CRPS-PN19
$345.75
Out of stock
Out of stock
| Housing Type: | Pillow Block, Two Bolt | Insert No.: | PN-19 |
|---|---|---|---|
| Duty Series: | Standard Duty | Maximum Operating Temperature: | 220 °F |
| Rolling Element: | Ball Bearing | Measure Units: | Inch |
| Insert Material: | 52100 Bearing Steel, Phosphorus Nickel Coated | Seal Type: | Multi-Lip Contact Seal |
| Housing Base: | Solid | Speed (Max): | 2300 |
| Housing Material: | Stainless Steel | Retainer Type: | Land Riding Retainer |
| Expansion: | No | Internal Clearance: | Standard |
| Bore Shape: | Straight | Radial Dynamic Load Capacity (lb): | 4, 381 |
| Relubricatable: | Yes | Set Screw Thread: | 1/4-28 UNF X .19 |
| Housing Construction: | One Piece | Inner-Race Heat-Treat Method: | Zone-Hardened |
| Lubrication: | Calcium Sulfonate NLGI 2 NSF H1 Food Grade Grease | Locking Type: | Setscrew |
| Misalignment: | ±2.0° Misalignment - Static Only | Options: | Corrosion Resistant |
| Bearing Insert Coating: | Phosphorus Nickel Coated | Platform: | PN Gold |
| Outer Ring Land Profile: | Standard | Misalignment Type: | Static Only |
| Housing Color: | Silver | Replaceable Insert: | Yes |
| End Cap: | Yes | Certifications: | IP69K |
| Radial Static Load Capacity (lb): | 2, 567 | Cage Material: | PPS |
| Grease Fitting Thread Size: | 1/4-28 NF | UPC: | 662461337646 |
| Weight: | 3.60 LB | Packaged Length: | 4.38 Inches |
| Packaged Width: | 2.06 Inches | Packaged Height: | 6.81 Inches |
| HTC: | 8483.20.8040 | Country of Origin: | United States of America |
