- High phosphorous electroless nickel plated 52100 steel for exceptional corrosion resistance
- High performance triple lip contact seal design provides multi-directional sealing with 304 stainless steel body and flinger to minimize contamination ingress and retain lubrication
- Fluoropolymer coated cast iron housing for corrosion resistance.
- Skwezloc® Concentric locking for near perfect concentricity with fluoropolymer coated collar and corrosion resistant cap screw
- Exclusive locking pin and dimple system provides a direct lubricant into the bearing cavity and ball path instead of around a lubrication groove, prevents outer ring rotation.
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Tapered Lands ensures that lubricant will be easily redirected back to the raceway.
- USDA H1 complaint food grade grease
CRPLF-PN16T

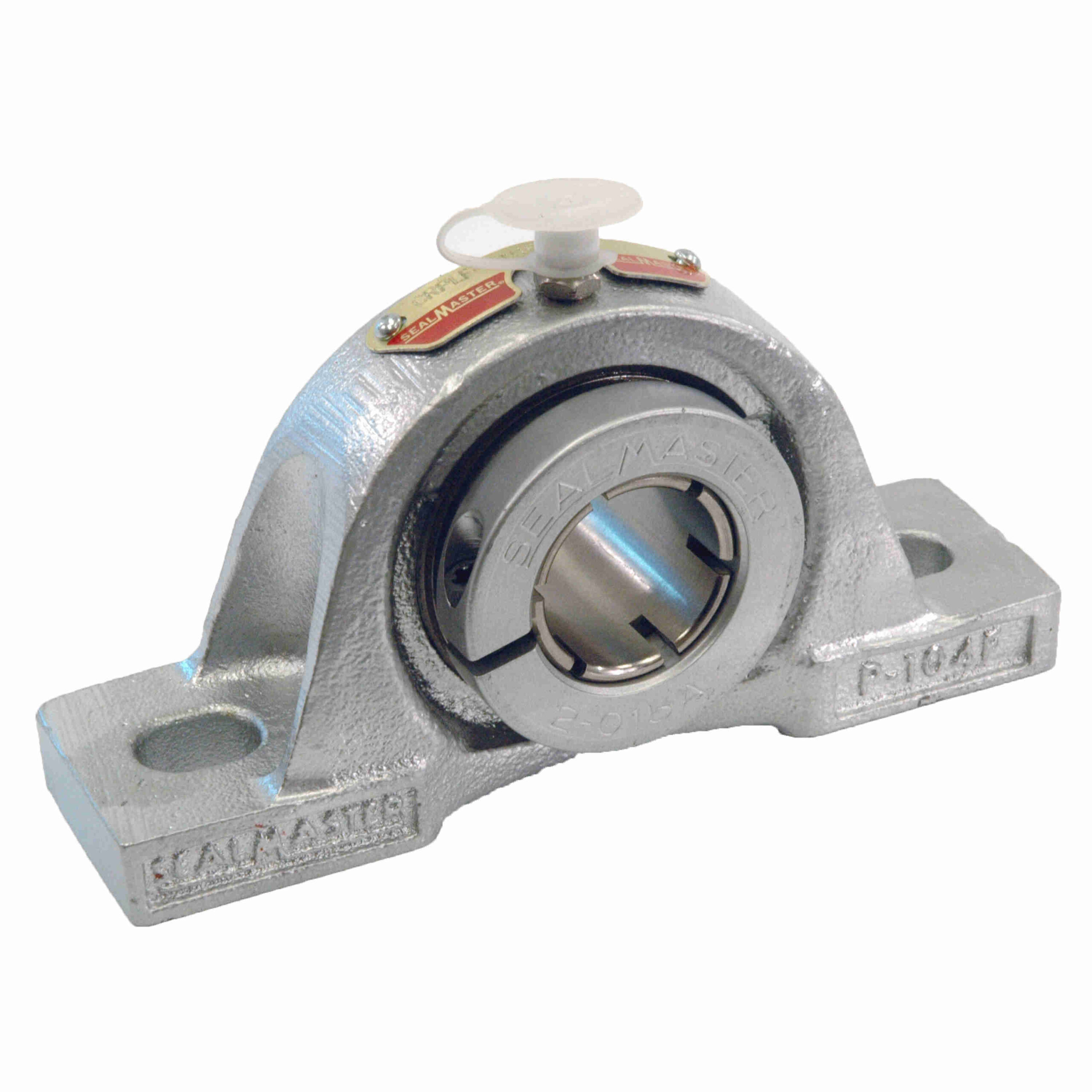

Sealmaster Mounted Flouropolymer Coated Cast Iron Two Bolt Pillow Block Ball Bearing – 52100 Bearing Steel, Phosphorus Nickel Coated – Concentric Lock – Corrosion Resistant – CRPLF-PN16T
$630.93
Out of stock
Out of stock
| Seal Type: | Multi-Lip Contact Seal | Internal Clearance: | Standard |
|---|---|---|---|
| Measure Units: | Inch | Insert Material: | 52100 Bearing Steel, Phosphorus Nickel Coated |
| Housing Base: | Solid | Rolling Element: | Ball Bearing |
| Bore Shape: | Straight | Radial Dynamic Load Capacity (lb): | 2, 801 lb |
| Housing Construction: | One Piece | Misalignment: | ±2.0° Misalignment - Static Only |
| Outer Ring Land Profile: | Standard | Platform: | PN Gold |
| Housing Color: | Silver/Gray | Options: | Corrosion Resistant |
| Bearing Insert Coating: | Phosphorus Nickel Coated | Replaceable Insert: | Yes |
| End Cap: | Yes | Misalignment Type: | Static Only |
| Certifications: | IP69K | Radial Static Load Capacity (lb): | 1, 651 lb |
| Cage Material: | PPS | Lubrication Type: | Calcium Sulfonate NLGI 2 NSF H1 Food Grade Grease |
| Housing Material: | Flouropolymer Coated Cast Iron | Housing Style: | Pillow Block |
| Duty/Series: | Standard Duty | Housing Type: | Pillow Block, Two Bolt |
| Retainer Type: | Land Riding Retainer | Locking Type: | Concentric |
| Maximum Speed (RPM): | 2700 rpm | Fixed vs. Expansion: | Fixed |
| Ability to Relubricate: | Yes | Insert Number: | PN-16T |
| Maximum Operating Temperature (F): | 220 °F | Inner Race Heat Treat Method: | Zone-Hardened |
| UPC: | 662461000000 | Weight: | 2.05 LB |
| Packaged Length: | 3.5 Inches | Packaged Width: | 1.69 Inches |
| Packaged Height: | 5.75 Inches | HTC: | 8483.20.8040 |
| Country of Origin: | United States of America |
