- High phosphorous electroless nickel plated 52100 steel for exceptional corrosion resistance
- High performance triple lip contact seal design provides multi-directional sealing with 304 stainless steel body and flinger to minimize contamination ingress and retain lubrication
- High strength composite with reinforced stainless steel bolt ferrules for high load capacity and increased strength around the bolt holes.
- Solid construction with machined base was designed for minimal gaps and no fillers
- Zone hardened inner ring with 120° spacing setscrew lock with corrosion resistant setscrews
- Exclusive locking pin and dimple system provides a direct lubricant into the bearing cavity and ball path instead of around a lubrication groove, prevents outer ring rotation.
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Reduced maintenance design with plug and includes Sealmaster® Tapered Lands ensures that lubricant will be easily redirected back to the raceway.
- USDA H1 complaint food grade grease
CRPC-PN16 RMW

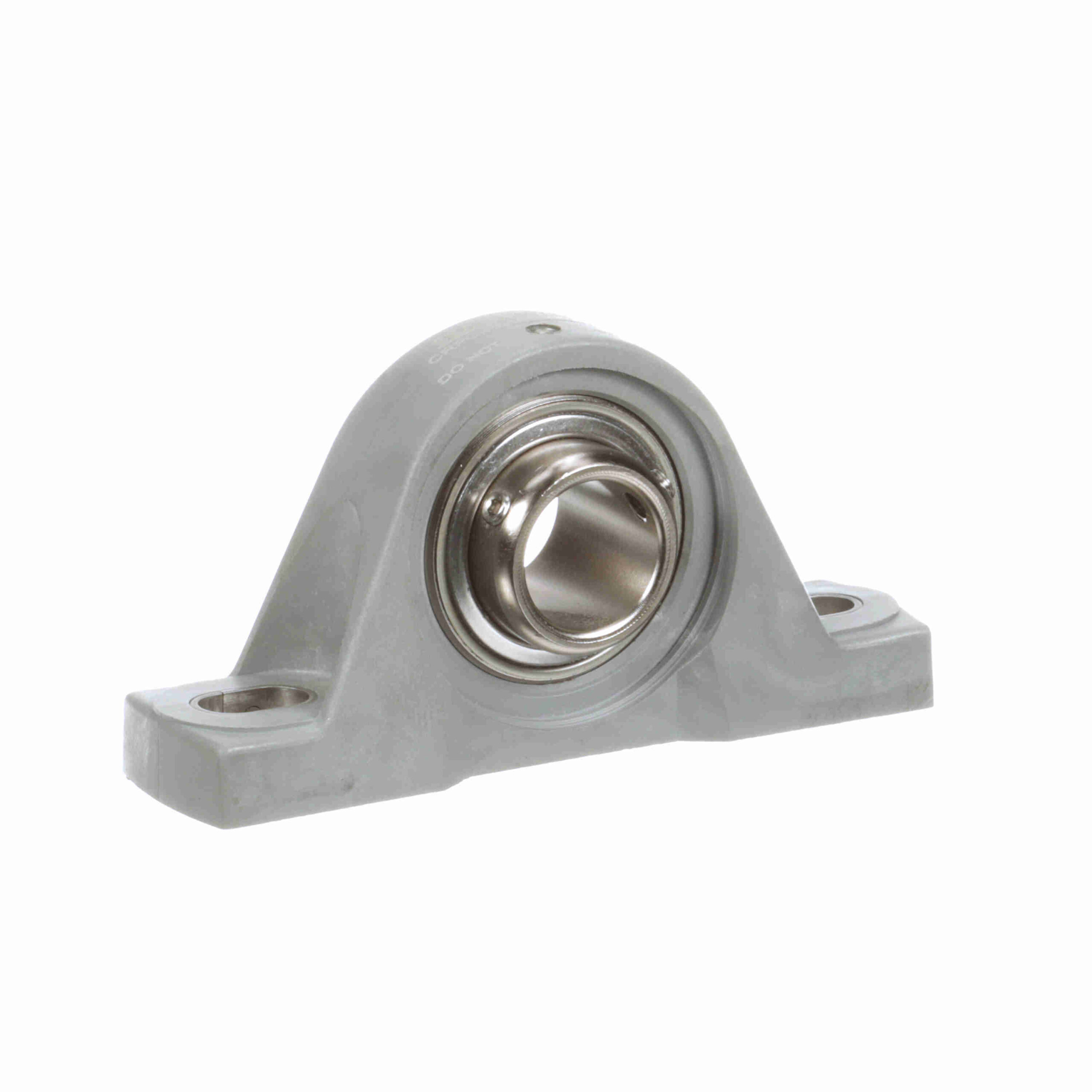

Sealmaster Mounted Composite Two Bolt Pillow Block Ball Bearing – 52100 Bearing Steel, Phosphorus Nickel Coated – Setscrew Lock – Corrosion Resistant – Reduced Maintenance – Lubed for Life – CRPC-PN16 RMW
$219.88
Out of stock
Out of stock
| Duty Series: | Standard Duty | Expansion: | No |
|---|---|---|---|
| Housing Base: | Solid | Internal Clearance: | Standard |
| Housing Material: | Composite | Rolling Element: | Ball Bearing |
| Insert No.: | PN-16 | Measure Units: | Inch |
| Maximum Operating Temperature: | 220 °F | Insert Material: | 52100 Bearing Steel, Phosphorus Nickel Coated |
| Retainer Type: | Land Riding Retainer | Seal Type: | Multi-Lip Contact Seal |
| Housing Type: | Pillow Block, Two Bolt | Speed (Max): | 2700 |
| Bore Shape: | Straight | Radial Dynamic Load Capacity (lb): | 2, 801 |
| Set Screw Thread: | 1/4-28 UNF X .19 | Relubricatable: | No |
| Misalignment: | ±2.0° Misalignment - Static Only | Housing Construction: | One Piece |
| Inner-Race Heat-Treat Method: | Zone-Hardened | Locking Type: | Setscrew |
| Lubrication: | Calcium Sulfonate NLGI 2 NSF H1 Food Grade Grease | Misalignment Type: | Static Only |
| Bearing Insert Coating: | Phosphorus Nickel Coated | Options: | Corrosion Resistant - Reduced Maintenance - Lubed for Life |
| Outer Ring Land Profile: | Tapered Lands | End Cap: | Yes |
| Replaceable Insert: | Yes | Platform: | PN Gold |
| Housing Color: | Light Gray | Certifications: | IP69K |
| Radial Static Load Capacity (lb): | 1, 651 | Cage Material: | PPS |
| Grease Fitting Thread Size: | 1/4-28 NF | UPC: | 662461350799 |
| Weight: | 0.83 LB | Packaged Length: | 3.5 Inches |
| Packaged Width: | 1.69 Inches | Packaged Height: | 5.75 Inches |
| HTC: | 8483.20.8040 | Country of Origin: | United States of America |
