- High phosphorous electroless nickel plated 52100 steel for exceptional corrosion resistance
- High performance triple lip contact seal design provides multi-directional sealing with 304 stainless steel body and flinger to minimize contamination ingress and retain lubrication
- High quality solid base designed investment cast passivated 316 stainless steel casting providing the highest amount corrosion resistance currently available for stainless steel housings.
- Solid construction with machined base was designed for minimal gaps and no fillers
- Zone hardened inner ring with 120? spacing setscrew lock with corrosion resistant setscrews
- Exclusive locking pin and dimple system provides a direct lubricant into the bearing cavity , ball path instead of around a lubrication groove, prevents outer ring rotation.
- Unique land riding retainer design provides superior pocket clearance that allows for 360? grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Tapered Lands ensures that lubricant will be easily redirected back to the raceway.
- USDA H1 complaint food grade grease
CRFTS-PN16

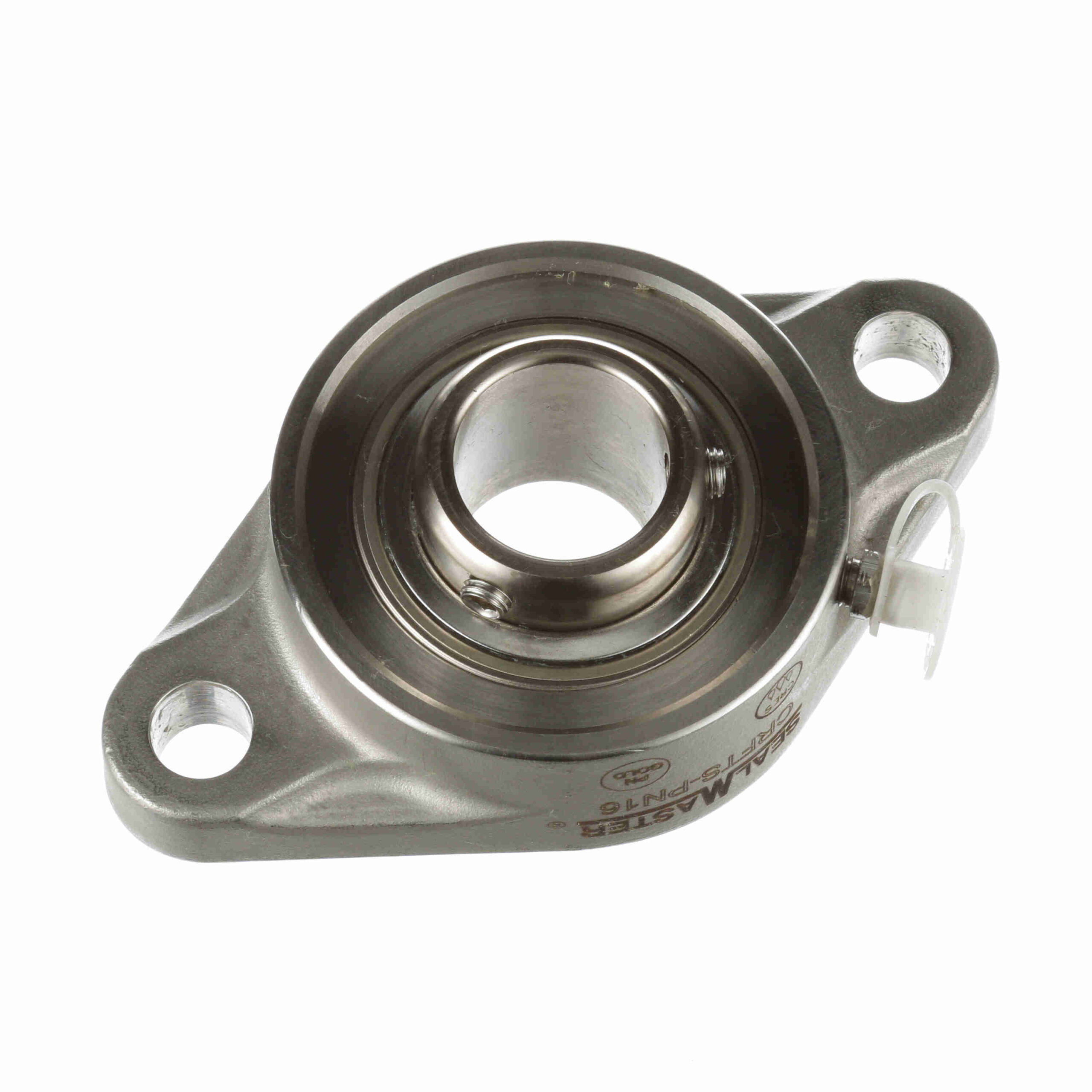

Sealmaster Mounted Stainless Steel Two Bolt Flange Ball Bearing – 52100 Bearing Steel, Phosphorus Nickel Coated – Setscrew Lock – Corrosion Resistant – CRFTS-PN16
$252.52
Out of stock
Out of stock
| Measure Units: | Inch | Seal Type: | Multi-Lip Contact Seal |
|---|---|---|---|
| Insert Material: | 52100 Bearing Steel; Phosphorus Nickel Coated | Inner-Race Heat-Treat Method: | Zone-Hardened |
| Housing Material: | Stainless Steel | Insert No.: | PN-16 |
| Maximum Operating Temperature: | 220 °F | Expansion: | No |
| Duty Series: | Standard Duty | Retainer Type: | Land Riding Retainer |
| Rolling Element: | Ball Bearing | Housing Base: | Solid |
| Pilot Configuration: | No Pilot | Relubricatable: | Yes |
| Speed (Max): | 2700 | Internal Clearance: | Standard |
| Housing Construction: | One Piece | Lubrication: | Calcium Sulfonate NLGI 2 NSF H1 Food Grade Grease |
| Misalignment: | ±2.0° Misalignment - Static Only | Radial Dynamic Load Capacity (lb): | 2, 801 |
| Housing Type: | Flange; Two Bolt | Locking Type: | Setscrew |
| Set Screw Thread: | 5/16-24 UNF X .25 | Bore Shape: | Straight |
| End Cap: | Yes | Bearing Insert Coating: | Phosphorus Nickel Coated |
| Replaceable Insert: | Yes | Housing Color: | Silver |
| Platform: | PN Gold | Options: | Corrosion Resistant |
| Outer Ring Land Profile: | Standard | Backside Shield/Seal: | Optional backside shield available order separate |
| Misalignment Type: | Static Only | Certifications: | IP69K |
| Radial Static Load Capacity (lb): | 1, 651 | Cage Material: | PPS |
| Grease Fitting Thread Size: | 1/4-28 NF | UPC: | 662461335772 |
| Weight: | 1.60 LB | Packaged Length: | 4 Inches |
| Packaged Width: | 1.5 Inches | Packaged Height: | 3.94 Inches |
| HTC: | 8483.20.4040 |
