- High phosphorous electroless nickel plated 52100 steel for exceptional corrosion resistance
- High performance triple lip contact seal design provides multi-directional sealing with 304 stainless steel body and flinger to minimize contamination ingress and retain lubrication
- High quality solid base designed investment cast passivated 316 stainless steel casting providing the highest amount corrosion resistance currently available for stainless steel housings.
- Solid construction with machined base was designed for minimal gaps and no fillers
- Zone hardened inner ring with 120° spacing setscrew lock with corrosion resistant setscrews
- Exclusive locking pin and dimple system provides a direct lubricant into the bearing cavity and ball path instead of around a lubrication groove, prevents outer ring rotation.
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Reduced maintenance design with plug and includes Sealmaster® Tapered Lands ensures that lubricant will be easily redirected back to the raceway.
- USDA H1 complaint food grade grease
CRFS-PN24 RMW

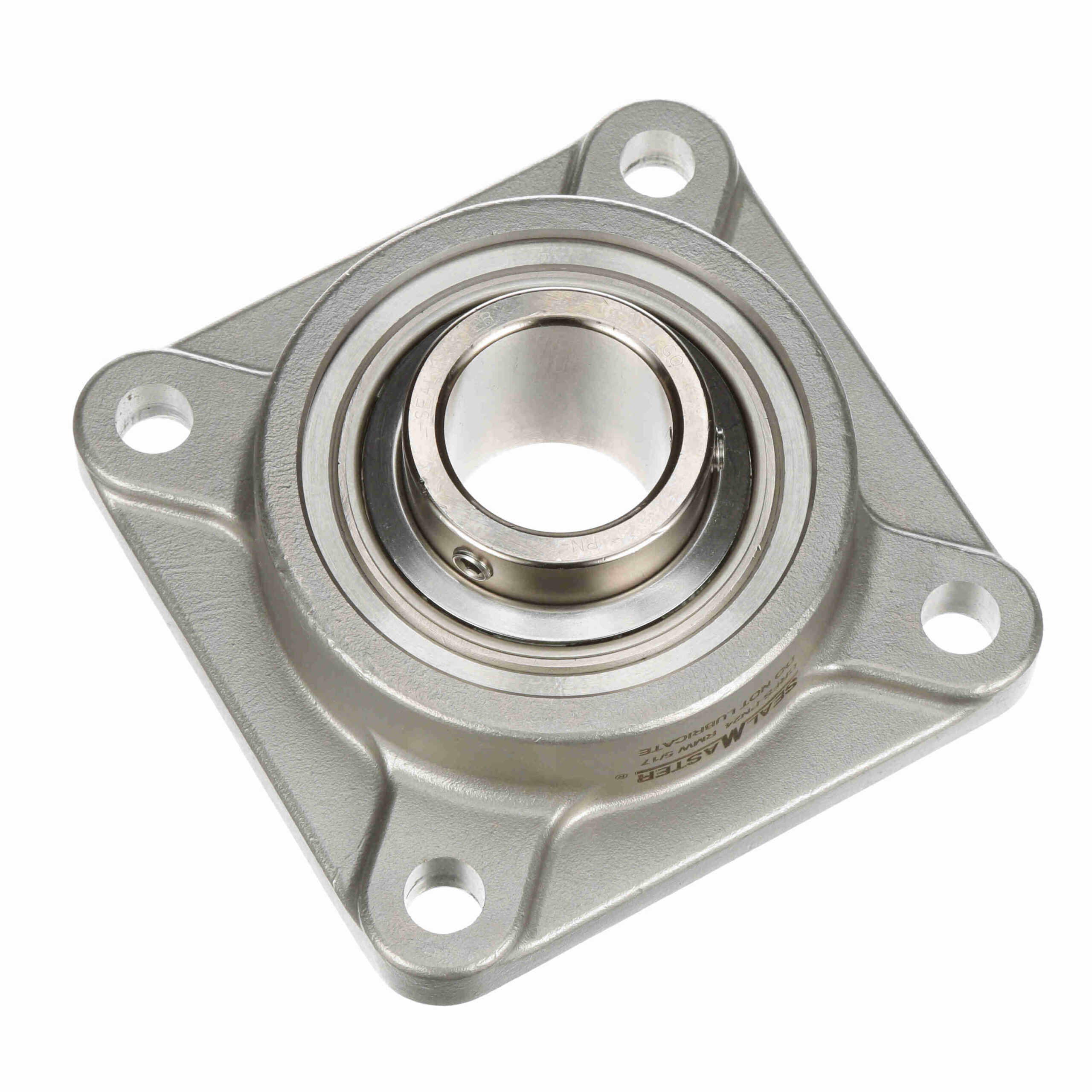

Sealmaster Mounted Stainless Steel Four Bolt Flange Ball Bearing – 52100 Bearing Steel, Phosphorus Nickel Coated – Setscrew Lock – Corrosion Resistant – Reduced Maintenance – Lubed for Life – CRFS-PN24 RMW
$425.33
Out of stock
Out of stock
| Bore Shape: | Straight | Expansion: | No |
|---|---|---|---|
| Insert No.: | PN-24 | Measure Units: | Inch |
| Housing Type: | Flange, Four Bolt | Housing Base: | Solid |
| Insert Material: | 52100 Bearing Steel, Phosphorus Nickel Coated | Seal Type: | Multi-Lip Contact Seal |
| Housing Material: | Stainless Steel | Maximum Operating Temperature: | 220 °F |
| Rolling Element: | Ball Bearing | Duty Series: | Standard Duty |
| Retainer Type: | Land Riding Retainer | Inner-Race Heat-Treat Method: | Zone-Hardened |
| Radial Dynamic Load Capacity (lb): | 7, 340 | Pilot Configuration: | No Pilot |
| Relubricatable: | No | Set Screw Thread: | 5/16-24 |
| Misalignment: | ±2.0° Misalignment - Static Only | Speed (Max): | 1750 |
| Internal Clearance: | Standard | Lubrication: | Calcium Sulfonate NLGI 2 NSF H1 Food Grade Grease |
| Locking Type: | Setscrew | Housing Construction: | One Piece |
| End Cap: | Yes | Housing Color: | Silver |
| Bearing Insert Coating: | Phosphorus Nickel Coated | Misalignment Type: | Static Only |
| Outer Ring Land Profile: | Tapered Lands | Replaceable Insert: | Yes |
| Backside Shield/Seal: | Optional backside shield available order separate | Platform: | PN Gold |
| Options: | Corrosion Resistant - Reduced Maintenance - Lubed for Life | T Core: | 3.5 |
| Certifications: | IP69K | Radial Static Load Capacity (lb): | 4, 467 |
| Cage Material: | PPS | UPC: | 662461337479 |
| Weight: | 5.42 LB | Packaged Length: | 5.5 Inches |
| Packaged Width: | 2.13 Inches | Packaged Height: | 5.5 Inches |
| HTC: | 8483.20.4040 | Country of Origin: | United States of America |
