- High phosphorous electroless nickel plated 52100 steel for exceptional corrosion resistance
- High performance triple lip contact seal design provides multi-directional sealing with 304 stainless steel body and flinger to minimize contamination ingress and retain lubrication
- High quality solid base designed investment cast passivated 316 stainless steel casting providing the highest amount corrosion resistance currently available for stainless steel housings.
- Solid construction with machined base was designed for minimal gaps and no fillers
- Skwezloc? Concentric locking for near perfect concentricity with fluoropolymer coated collar and corrosion resistant cap screw
- Exclusive locking pin and dimple system provides a direct lubricant into the bearing cavity , ball path instead of around a lubrication groove, prevents outer ring rotation.
- Unique land riding retainer design provides superior pocket clearance that allows for 360? grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Reduced maintenance design with plug and includes Sealmaster? Tapered Lands ensures that lubricant will be easily redirected back to the raceway.
- USDA H1 complaint food grade grease
CRBFS-PN20RT RMW

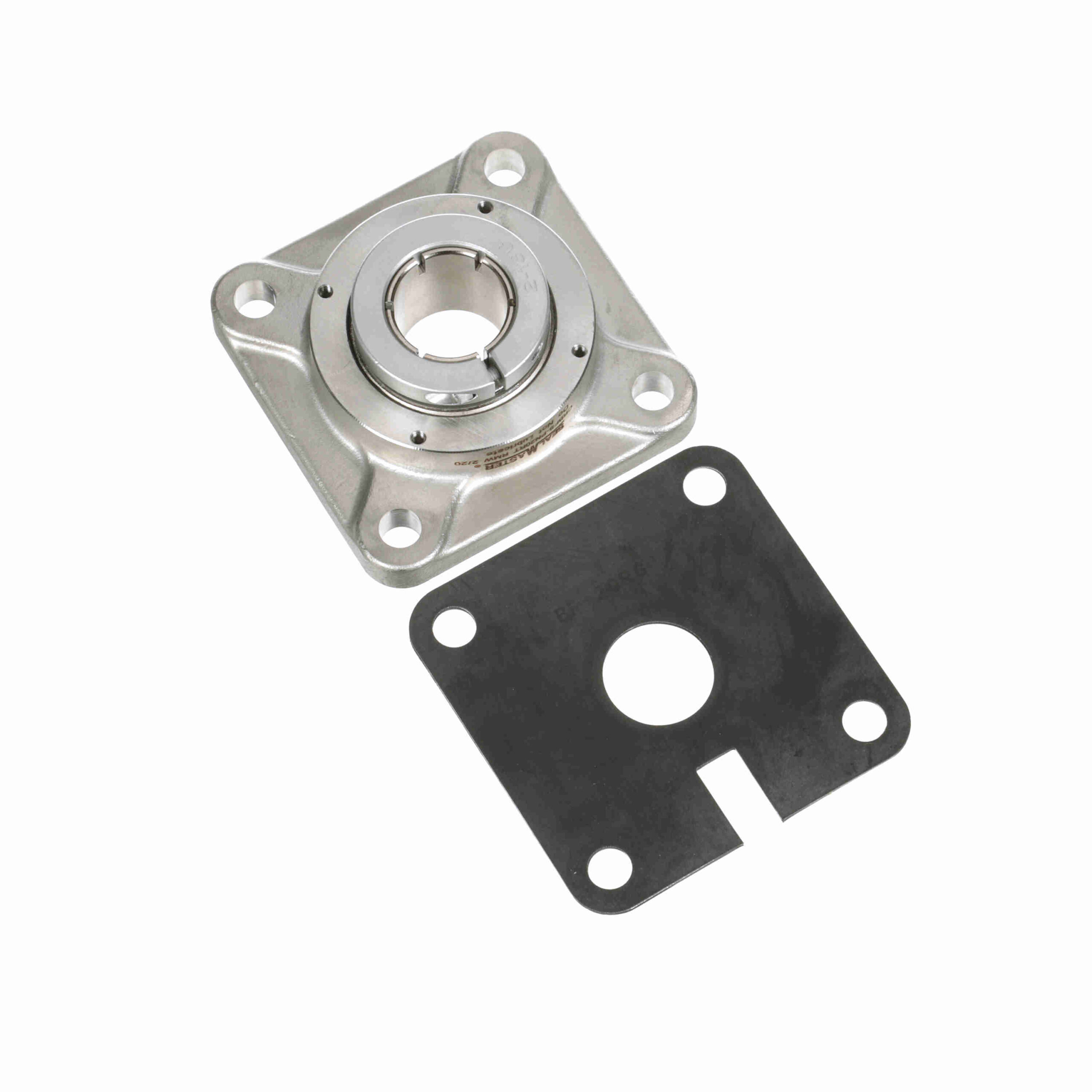

Sealmaster Mounted Stainless Steel Four Bolt Flange Ball Bearing – 52100 Bearing Steel, Phosphorus Nickel Coated – Concentric Lock – Corrosion Resistant – Reduced Maintenance – Lubed for Life – CRBFS-PN20RT RMW
$362.43
Out of stock
Out of stock
| Housing Type: | Flange; Four Bolt | Bore Shape: | Straight |
|---|---|---|---|
| Retainer Type: | Land Riding Retainer | Insert No.: | PN-20RT |
| Housing Material: | Stainless Steel | Measure Units: | Inch |
| Inner-Race Heat-Treat Method: | Zone-Hardened | Housing Base: | Solid |
| Seal Type: | Multi-Lip Contact Seal | Insert Material: | 52100 Bearing Steel; Phosphorus Nickel Coated |
| Expansion: | No | Duty Series: | Standard Duty |
| Maximum Operating Temperature: | 220 °F | Rolling Element: | Ball Bearing |
| Radial Dynamic Load Capacity (lb): | 4, 381 | Relubricatable: | No |
| Pilot Configuration: | No Pilot | Locking Type: | Concentric |
| Misalignment: | ±2.0° Misalignment - Static Only | Housing Construction: | One Piece |
| Lubrication: | Calcium Sulfonate NLGI 2 NSF H1 Food Grade Grease | Speed (Max): | 2300 |
| Internal Clearance: | Standard | Bearing Insert Coating: | Phosphorus Nickel Coated |
| Housing Color: | Silver | Backside Shield/Seal: | Backside Shield included loose in box |
| Platform: | PN Gold | Misalignment Type: | Static Only |
| Options: | Corrosion Resistant - Reduced Maintenance - Lubed for Life | Replaceable Insert: | Yes |
| End Cap: | Yes | Outer Ring Land Profile: | Tapered Lands |
| T Core: | 2.875 | Certifications: | IP69K |
| Radial Static Load Capacity (lb): | 2, 567 | Cage Material: | PPS |
| UPC: | 662461368794 | Weight: | 3.39 LB |
| Packaged Length: | 4.5 Inches | Packaged Width: | 1.69 Inches |
| Packaged Height: | 4.56 Inches | HTC: | 8483.20.4040 |
| Country of Origin: | United States of America |
