- Stud type cam follower
- Cylindrical outside diameter
- Needle rolling elements
- Slot hole
- LUBRI-DISC® seal
- Heavy stud configuration

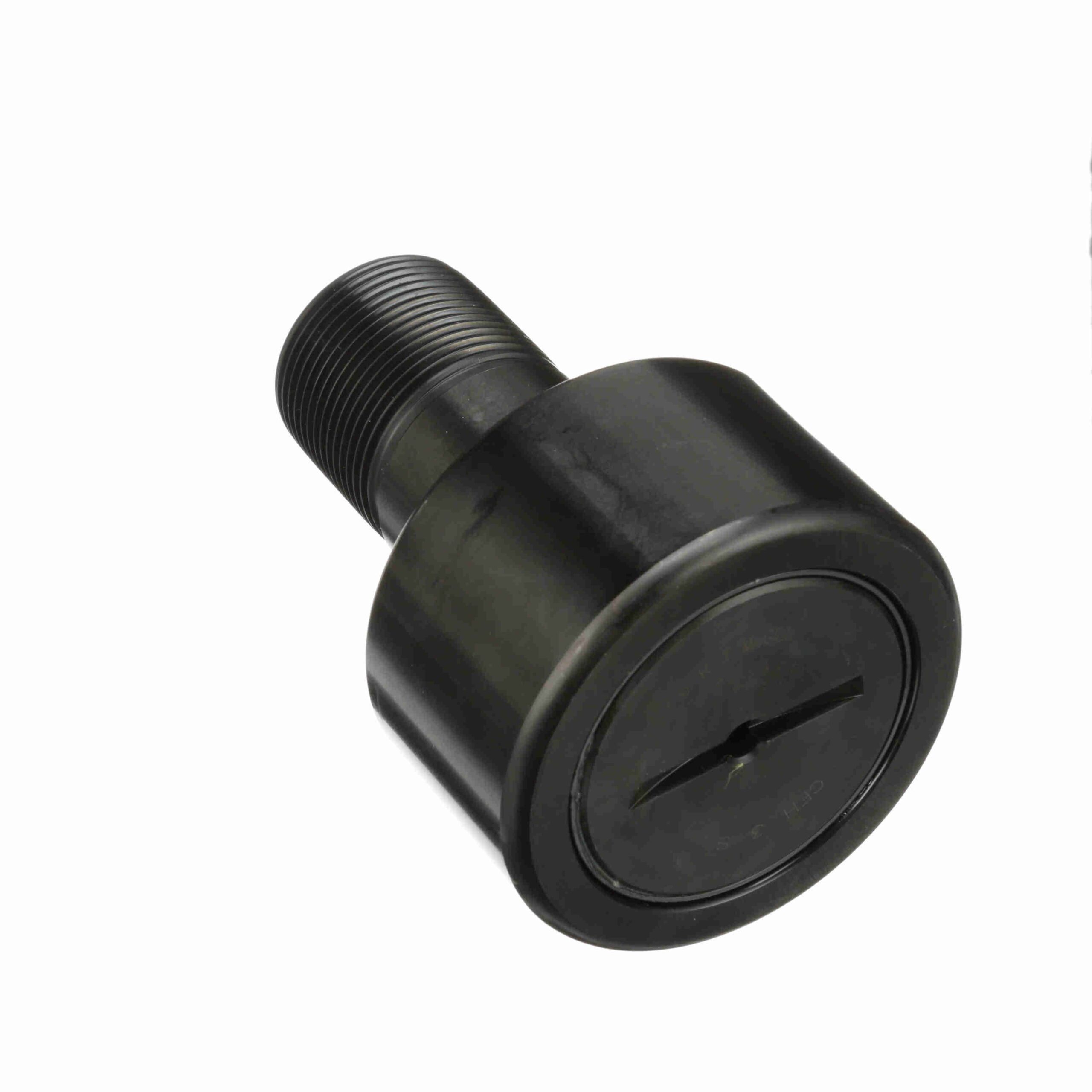

CFH 3 S
McGill Heavy Stud CAMROL® Cylindrical Inch Cam Follower – Stud Mount Roller – Screwdriver Slot – Sealed – CFH 3 S
$198.29
Availability: 52 in stock
Availability: 52 in stock
| Adjustment: | None | Sealing: | Sealed |
|---|---|---|---|
| Limiting Speed: | 950 | O.D. Configuration: | Cylindrical |
| Series: | Inch CAMROL® | Hex/Slot: | Screwdriver Slot |
| Rolling Element: | Needle Roller - Full Complement | Material: | Bearing Steel, Black Oxide Finish |
| Platform: | CAMROL® | Stud Type: | Heavy Stud |
| Tolerance Class: | P0 Equivalent | Static Load Rating: | 32 |
| Dynamic Load Rating (lb): | 15, 720 lb | Roller Shape: | Cylindrical |
| Clamping Torque (in-lbf): | 5, 000 lbs | Ability to Relubricate: | Yes |
| UPC: | 726166039226 | Weight: | 4.38 LB |
| Packaged Length: | 3.25 Inches | Packaged Width: | 3.25 Inches |
| Packaged Height: | 4.5 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
