- Stud type cam follower
- Cylindrical outside diameter
- Needle rolling elements
- Hex hole
- LUBRI-DISC® seal
- Heavy stud configuration
CFH 1 5/8 SB

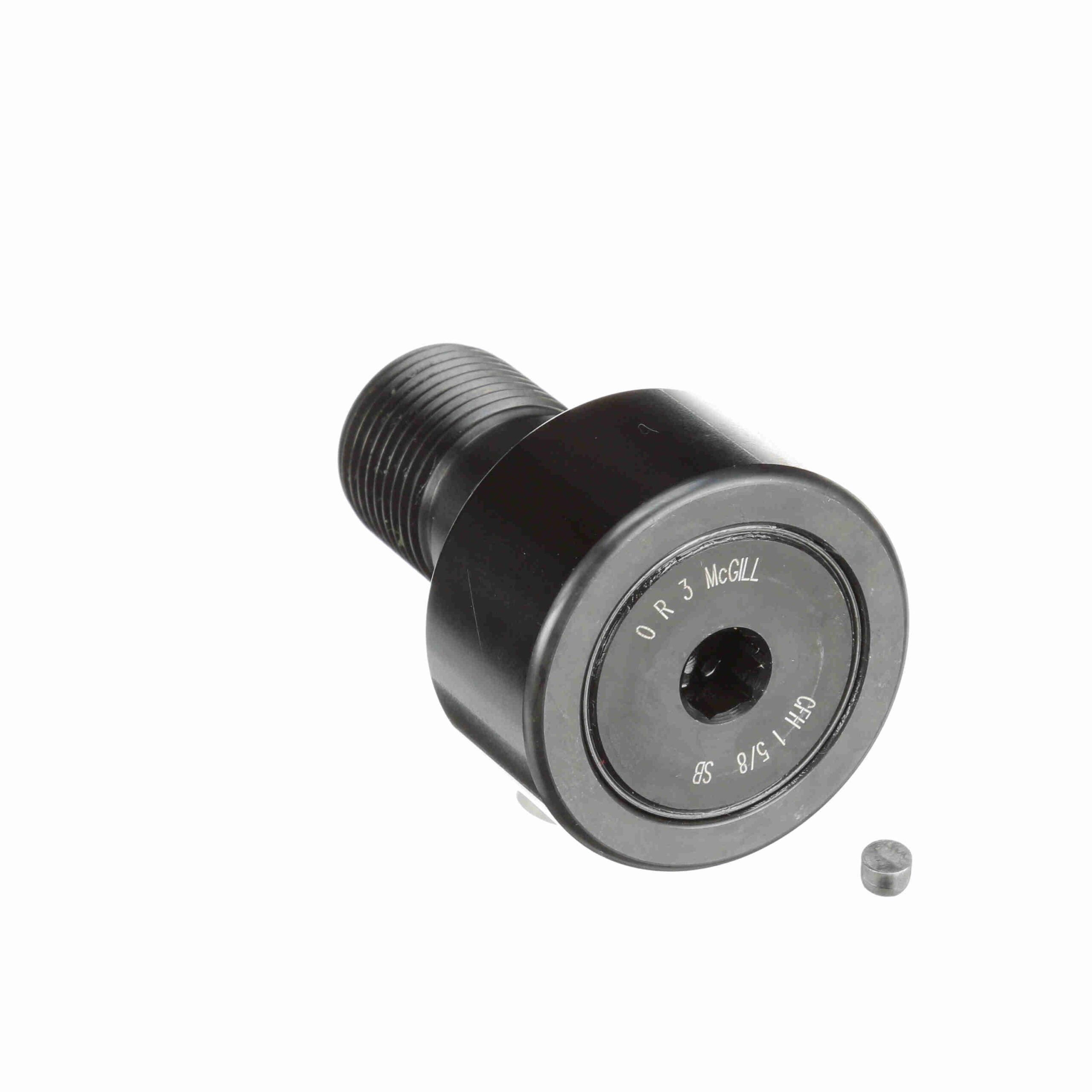

McGill Heavy Stud CAMROL® Cylindrical Inch Cam Follower – Stud Mount Roller – Hex Hole – Sealed – CFH 1 5/8 SB
$50.95
Availability: 132 in stock
Availability: 132 in stock
| Sealing: | Sealed | Rolling Element: | Needle Roller - Full Complement |
|---|---|---|---|
| Limiting Speed: | 2 | Series: | Inch CAMROL® |
| O.D. Configuration: | Cylindrical | Adjustment: | None |
| Hex/Slot: | Hex Hole | Material: | Bearing Steel, Black Oxide Finish |
| Stud Type: | Heavy Stud | Roller Shape: | Cylindrical |
| Static Load Rating: | 11 | Platform: | CAMROL® |
| Dynamic Load Rating (lb): | 4, 840 lb | Tolerance Class: | P0 Equivalent |
| Lubrication Hole Location: | Stud side | Clamping Torque (in-lbf): | 1, 500 lbs |
| Ability to Relubricate: | Yes | UPC: | 726166036225 |
| Weight: | 0.69 LB | Packaged Length: | 1.68 Inches |
| Packaged Width: | 1.68 Inches | Packaged Height: | 2.62 Inches |
| HTC: | 8482.40.0000 |
