- Stud type cam follower
- Cylindrical outside diameter
- Needle rolling elements
- Hex hole
- LUBRI-DISC® seal
- Heavy stud configuration
CFH 1/2 SB

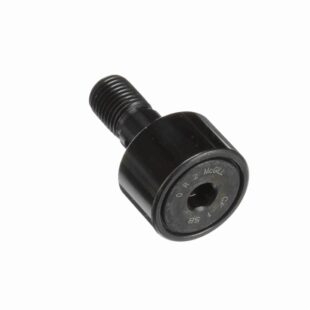

McGill Heavy Stud CAMROL® Cylindrical Inch Cam Follower – Stud Mount Roller – Hex Hole – Sealed – CFH 1/2 SB
$23.06
Availability: 467 in stock
Availability: 467 in stock
| O.D. Configuration: | Cylindrical | Hex/Slot: | Hex Hole |
|---|---|---|---|
| Limiting Speed: | 12 | Series: | Inch CAMROL® |
| Rolling Element: | Needle Roller - Full Complement | Sealing: | Sealed |
| Adjustment: | None | Material: | Bearing Steel, Black Oxide Finish |
| Platform: | CAMROL® | Static Load Rating: | 600 |
| Roller Shape: | Cylindrical | Stud Type: | Heavy Stud |
| Tolerance Class: | P0 Equivalent | Dynamic Load Rating (lb): | 680 lb |
| Ability to Relubricate: | No | Clamping Torque (in-lbf): | 35 lbs |
| UPC: | 726166030049 | Weight: | 0.04 LB |
| Packaged Length: | 4 Inches | Packaged Width: | 4 Inches |
| Packaged Height: | 3 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
