- Stud type cam follower
- Cylindrical outside diameter
- Needle rolling elements
- Hex hole
- LUBRI-DISC® seal
- Eccentric configuration

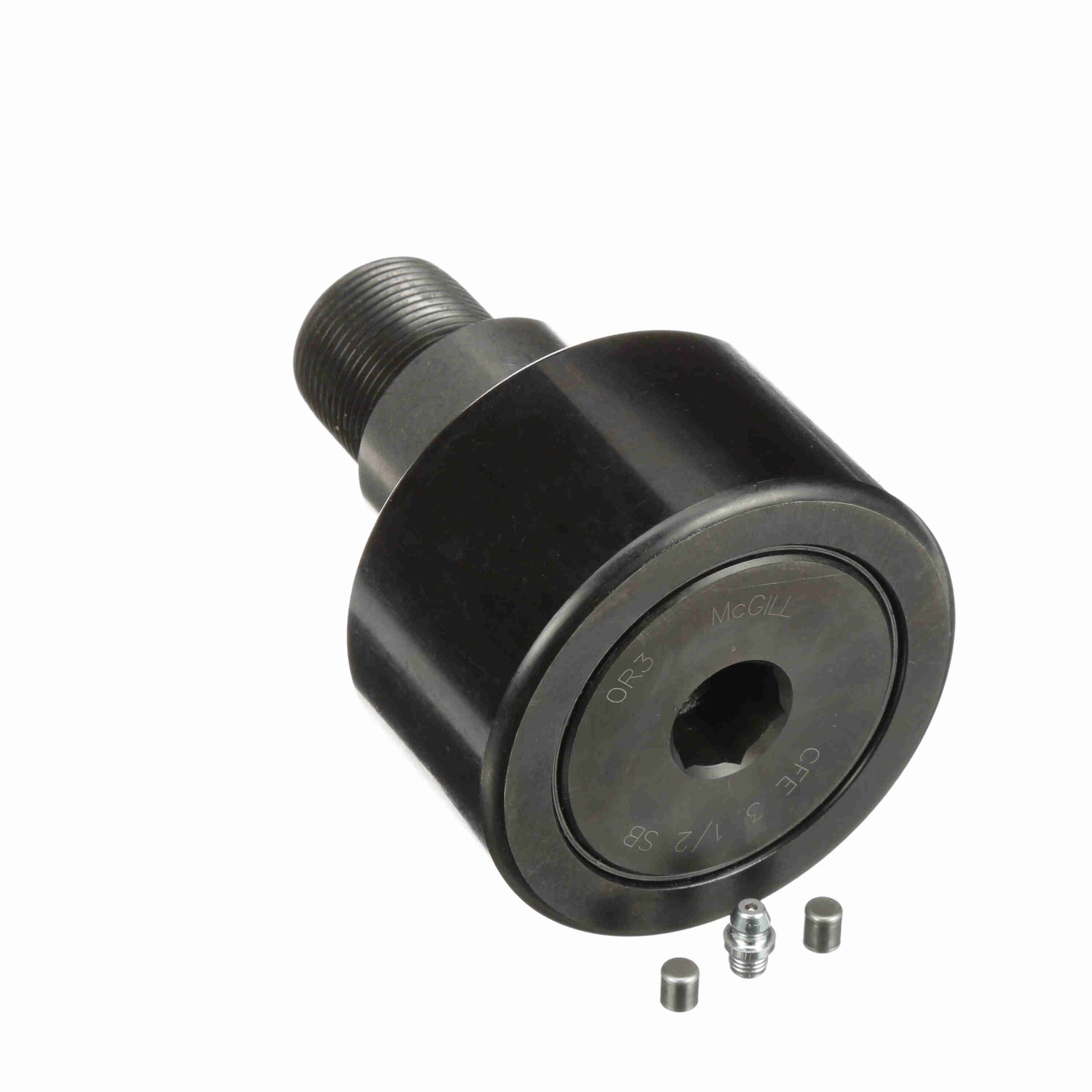

CFE 3 1/2 SB
McGill CAMROL® Cylindrical Inch Cam Follower – Stud Mount Roller – Hex Hole – Sealed – CFE 3 1/2 SB
$270.41
Availability: 20 in stock
Availability: 20 in stock
| Sealing: | Sealed | Dynamic Radial Rating: | 23 |
|---|---|---|---|
| Rolling Element: | Needle Roller - Full Complement | O.D. Configuration: | Cylindrical |
| Series: | Inch CAMROL® | Limiting Speed: | 820 |
| Hex/Slot: | Hex Hole | Adjustment: | Eccentric Bushing |
| Material: | Bearing Steel, Black Oxide Finish | Static Load Rating: | 21 |
| Tolerance Class: | P0 Equivalent | Roller Shape: | Cylindrical |
| Platform: | CAMROL® | Dynamic Load Rating (lb): | 22, 800 lb |
| Stud Type: | Standard Stud with Eccentric Bushing | Clamping Torque (in-lbf): | 4, 200 lbs |
| Ability to Relubricate: | Yes | UPC: | 726166039936 |
| Weight: | 6.43 LB | Packaged Length: | 3.5 Inches |
| Packaged Width: | 3.5 Inches | Packaged Height: | 5.06 Inches |
| HTC: | 8482.40.0000 | Country of Origin: | Mexico |
