- Stud type cam follower
- Cylindrical outside diameter
- Needle rolling elements
- Slot hole
- LUBRI-DISC® seal
- Eccentric configuration
CFE 2 1/2 S

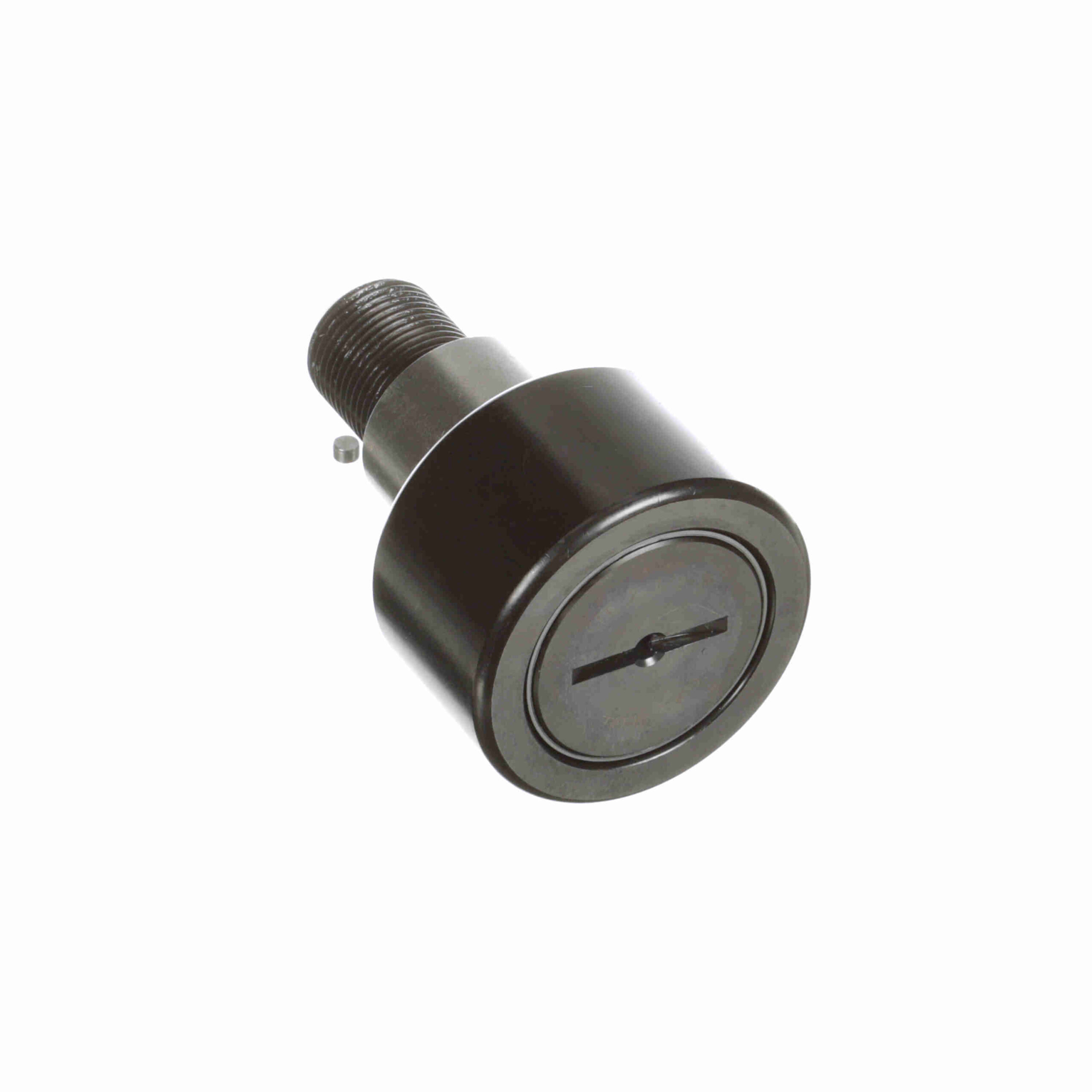

McGill CAMROL® Cylindrical Inch Cam Follower – Stud Mount Roller – Screwdriver Slot – Sealed – CFE 2 1/2 S
$199.26
Out of stock
Out of stock
| Series: | Inch CAMROL® | O.D. Configuration: | Cylindrical |
|---|---|---|---|
| Adjustment: | Eccentric Bushing | Limiting Speed: | 1 |
| Rolling Element: | Needle Roller - Full Complement | Hex/Slot: | Screwdriver Slot |
| Dynamic Radial Rating: | 12 | Sealing: | Sealed |
| Material: | Bearing Steel, Black Oxide Finish | Tolerance Class: | P0 Equivalent |
| Stud Type: | Standard Stud with Eccentric Bushing | Roller Shape: | Cylindrical |
| Static Load Rating: | 10 | Dynamic Load Rating (lb): | 11, 720 lb |
| Platform: | CAMROL® | Ability to Relubricate: | Yes |
| Clamping Torque (in-lbf): | 2, 250 lbs | UPC: | 726166038366 |
| Weight: | 2.72 LB | Packaged Length: | 2.81 Inches |
| Packaged Width: | 2.81 Inches | Packaged Height: | 3.93 Inches |
| HTC: | 8482.40.0000 | Country of Origin: | Mexico |
