- Stud type cam follower
- Cylindrical outside diameter
- Needle rolling elements
- Hex hole
- LUBRI-DISC® seal
CF 3 1/2 SB

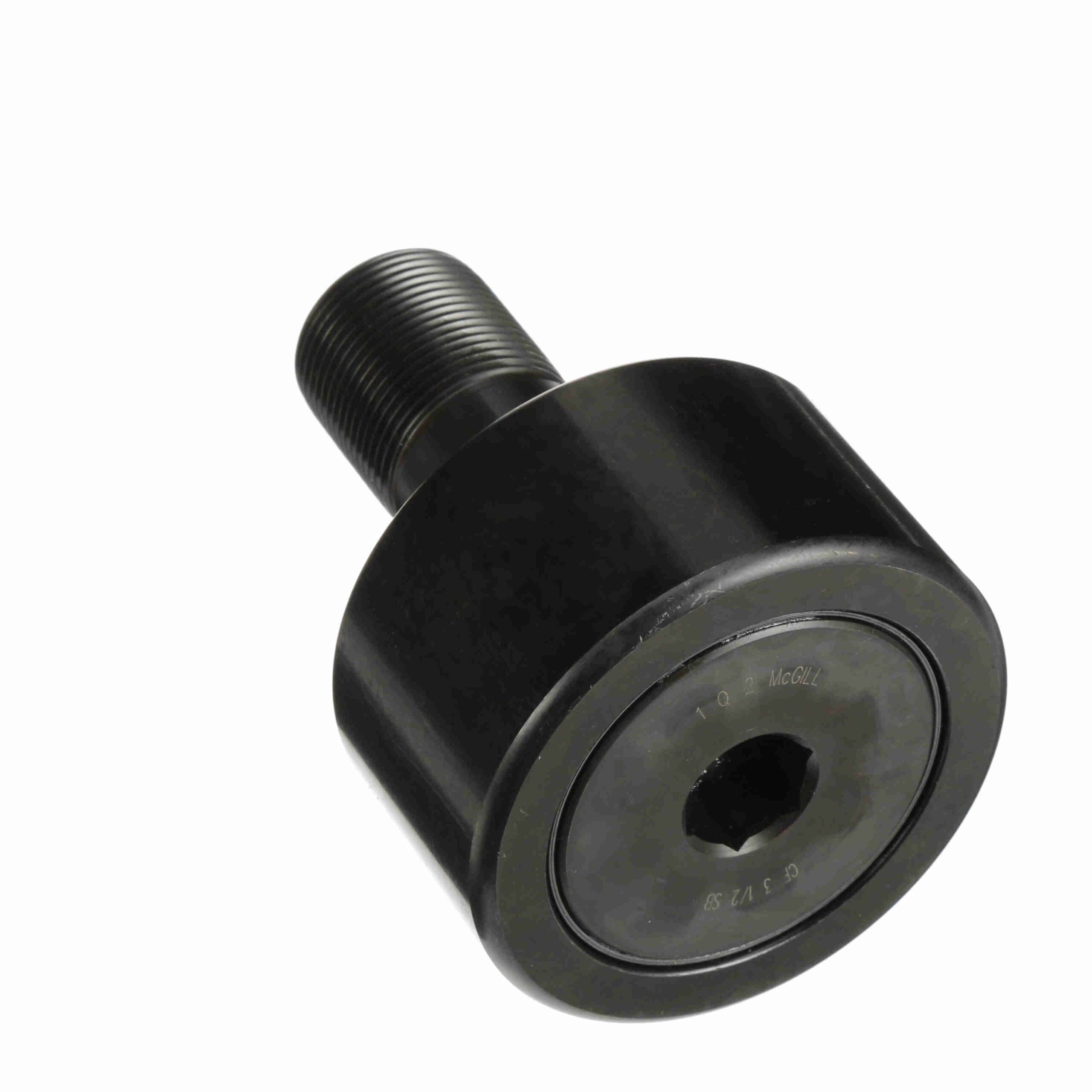

McGill CAMROL® Cylindrical Inch Cam Follower – Stud Mount Roller – Hex Hole – Sealed – CF 3 1/2 SB
$229.03
Availability: 115 in stock
Availability: 115 in stock
| Adjustment: | None | Sealing: | Sealed |
|---|---|---|---|
| Rolling Element: | Needle Roller - Full Complement | Hex/Slot: | Hex Hole |
| Limiting Speed: | 820 | Dynamic Radial Rating: | 23 |
| O.D. Configuration: | Cylindrical | Series: | Inch CAMROL® |
| Material: | Bearing Steel, Black Oxide Finish | Stud Type: | Standard Stud |
| Tolerance Class: | P0 Equivalent | Roller Shape: | Cylindrical |
| Static Load Rating: | 21 | Platform: | CAMROL® |
| Dynamic Load Rating (lb): | 22, 800 lb | Ability to Relubricate: | Yes |
| Clamping Torque (in-lbf): | 4, 200 lbs | UPC: | 726166039899 |
| Weight: | 6.04 LB | Packaged Length: | 3.5 Inches |
| Packaged Width: | 3.5 Inches | Packaged Height: | 5.06 Inches |
| HTC: | 8482.40.0000 | Country of Origin: | Mexico |
