- Stud type cam follower
- Cylindrical outside diameter
- Needle rolling elements
- Hex hole
- LUBRI-DISC® seal
CF 11/16 SB

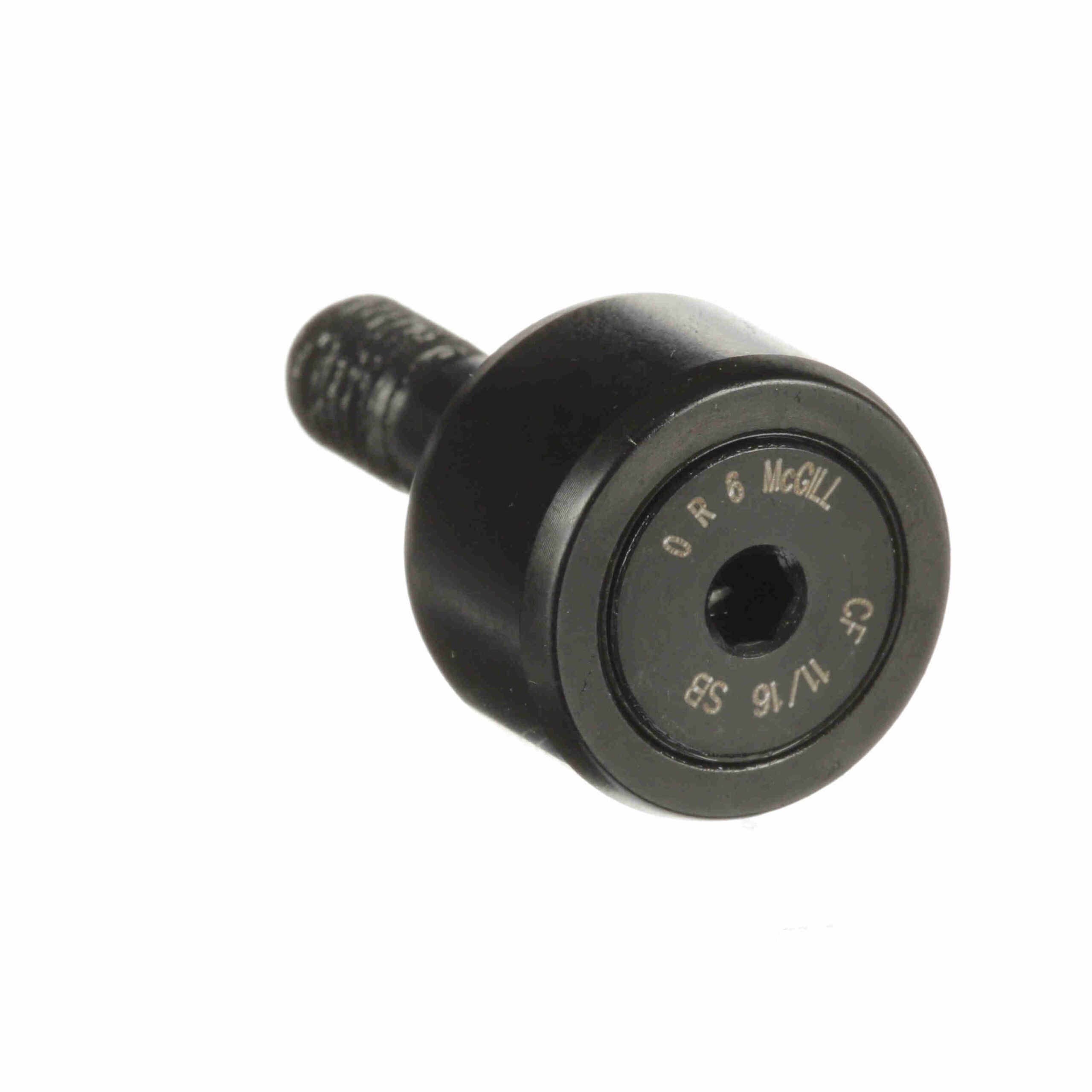

McGill CAMROL® Cylindrical Inch Cam Follower – Stud Mount Roller – Hex Hole – Sealed – CF 11/16 SB
$27.81
Availability: 1 in stock
Availability: 1 in stock
| Adjustment: | None | Series: | Inch CAMROL® |
|---|---|---|---|
| Dynamic Radial Rating: | 955 | Rolling Element: | Needle Roller - Full Complement |
| Hex/Slot: | Hex Hole | Limiting Speed: | 8 |
| O.D. Configuration: | Cylindrical | Sealing: | Sealed |
| Material: | Bearing Steel, Black Oxide Finish | Dynamic Load Rating (lb): | 955 lb |
| Tolerance Class: | P0 Equivalent | Roller Shape: | Cylindrical |
| Stud Type: | Standard Stud | Platform: | CAMROL® |
| Static Load Rating: | 1 | Lubrication Hole Location: | Stud side |
| Clamping Torque (in-lbf): | 35 lbs | Ability to Relubricate: | No |
| UPC: | 726166031510 | Weight: | 0.05 LB |
| Packaged Length: | 1.75 Inches | Packaged Width: | 1 Inches |
| Packaged Height: | 1.75 Inches | HTC: | 8482.40.0000 |
