- Stud type cam follower
- Cylindrical outside diameter
- Needle rolling elements
- Hex hole
- LUBRI-DISC® seal
CF 1 SB

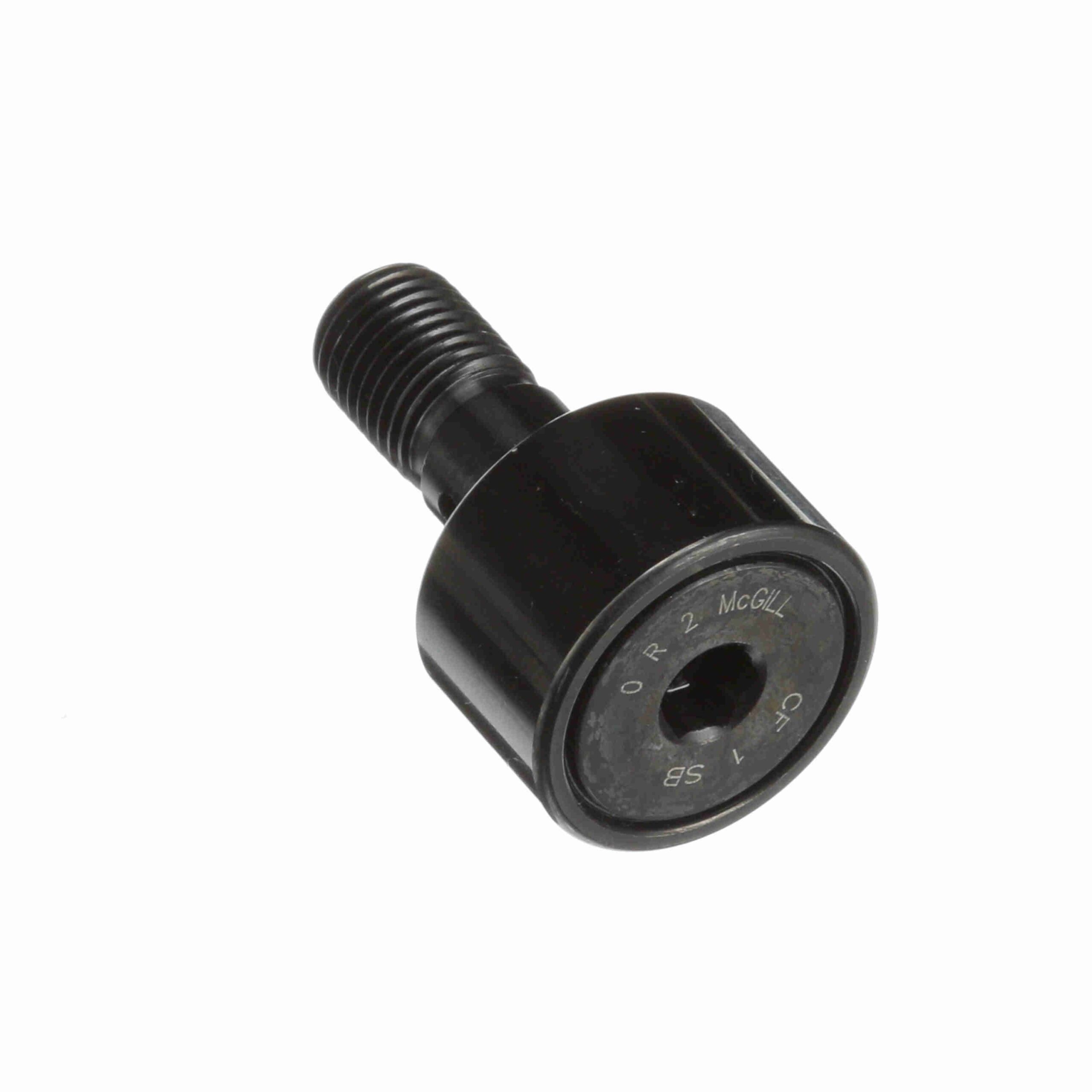

McGill CAMROL® Cylindrical Inch Cam Follower – Stud Mount Roller – Hex Hole – Sealed – CF 1 SB
$23.14
Availability: 1212 in stock
Availability: 1212 in stock
| Hex/Slot: | Hex Hole | O.D. Configuration: | Cylindrical |
|---|---|---|---|
| Rolling Element: | Needle Roller - Full Complement | Limiting Speed: | 5 |
| Adjustment: | None | Dynamic Radial Rating: | 2 |
| Sealing: | Sealed | Series: | Inch CAMROL® |
| Material: | Bearing Steel, Black Oxide Finish | Tolerance Class: | P0 Equivalent |
| Roller Shape: | Cylindrical | Static Load Rating: | 3 |
| Stud Type: | Standard Stud | Dynamic Load Rating (lb): | 2, 225 lb |
| Platform: | CAMROL® | Clamping Torque (in-lbf): | 250 lbs |
| Ability to Relubricate: | Yes | UPC: | 726166033187 |
| Weight: | 0.17 LB | Packaged Length: | 1.75 Inches |
| Packaged Width: | 1 Inches | Packaged Height: | 1.75 Inches |
| HTC: | 8482.40.0000 | Country of Origin: | Mexico |
