- Stud type cam follower
- Cylindrical outside diameter
- Needle rolling elements
- Slot hole
CF 1 7/8

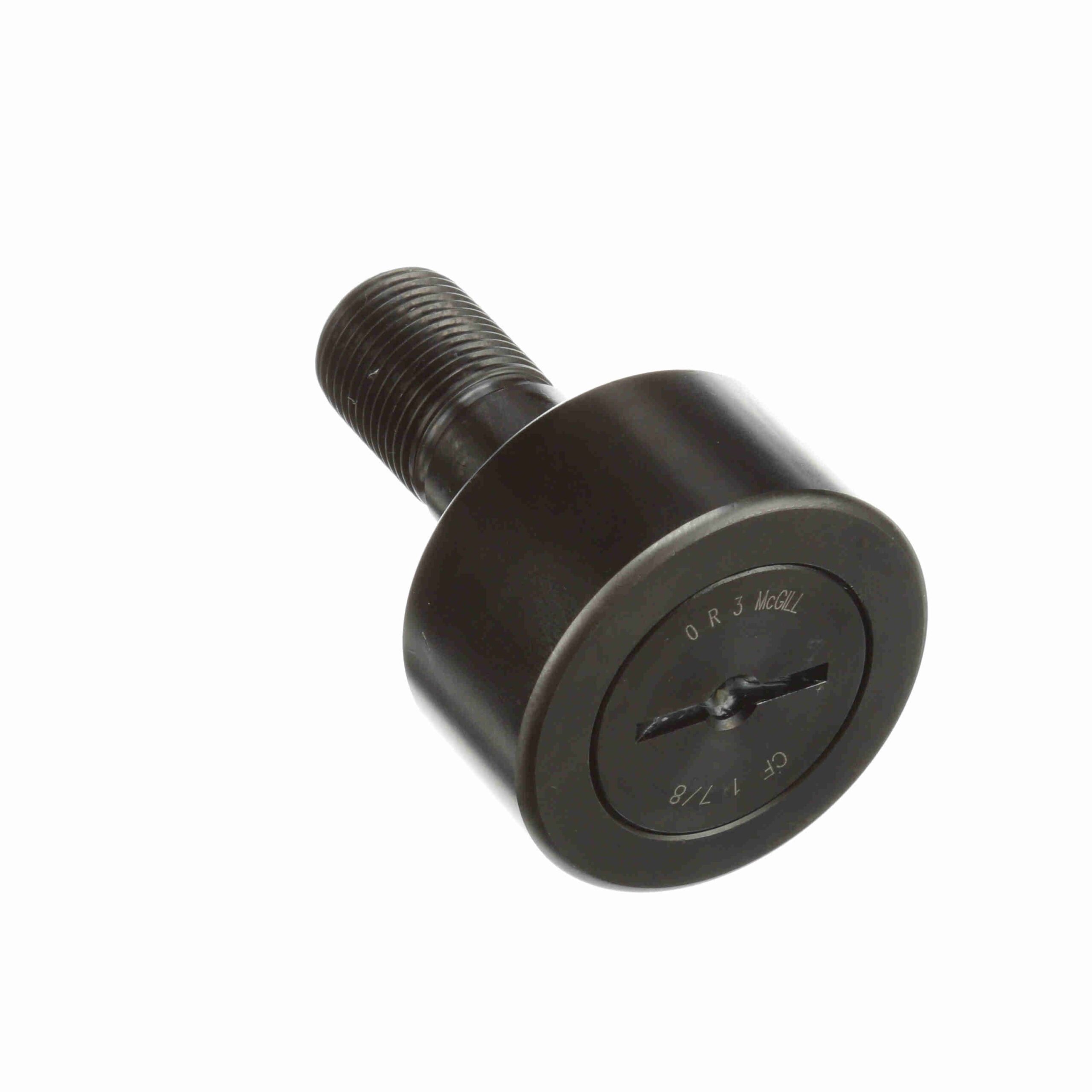

McGill CAMROL® Cylindrical Inch Cam Follower – Stud Mount Roller – Screwdriver Slot – CF 1 7/8
$39.38
Availability: 40 in stock
Availability: 40 in stock
| Sealing: | Unsealed | Adjustment: | None |
|---|---|---|---|
| O.D. Configuration: | Cylindrical | Series: | Inch CAMROL® |
| Dynamic Radial Rating: | 6 | Rolling Element: | Needle Roller - Full Complement |
| Hex/Slot: | Screwdriver Slot | Limiting Speed: | 2 |
| Material: | Bearing Steel, Black Oxide Finish | Tolerance Class: | P0 Equivalent |
| Dynamic Load Rating (lb): | 6, 385 lb | Static Load Rating: | 6 |
| Platform: | CAMROL® | Stud Type: | Standard Stud |
| Roller Shape: | Cylindrical | Clamping Torque (in-lbf): | 1, 250 lbs |
| Ability to Relubricate: | Yes | UPC: | 726166036874 |
| Weight: | 0.97 LB | Packaged Length: | 2 Inches |
| Packaged Width: | 2 Inches | Packaged Height: | 2.87 Inches |
| HTC: | 8482.40.0000 | Country of Origin: | Mexico |
