- Stud type cam follower
- Cylindrical outside diameter
- Needle rolling elements
- Hex hole
- LUBRI-DISC® seal
CF 1 7/8 SB

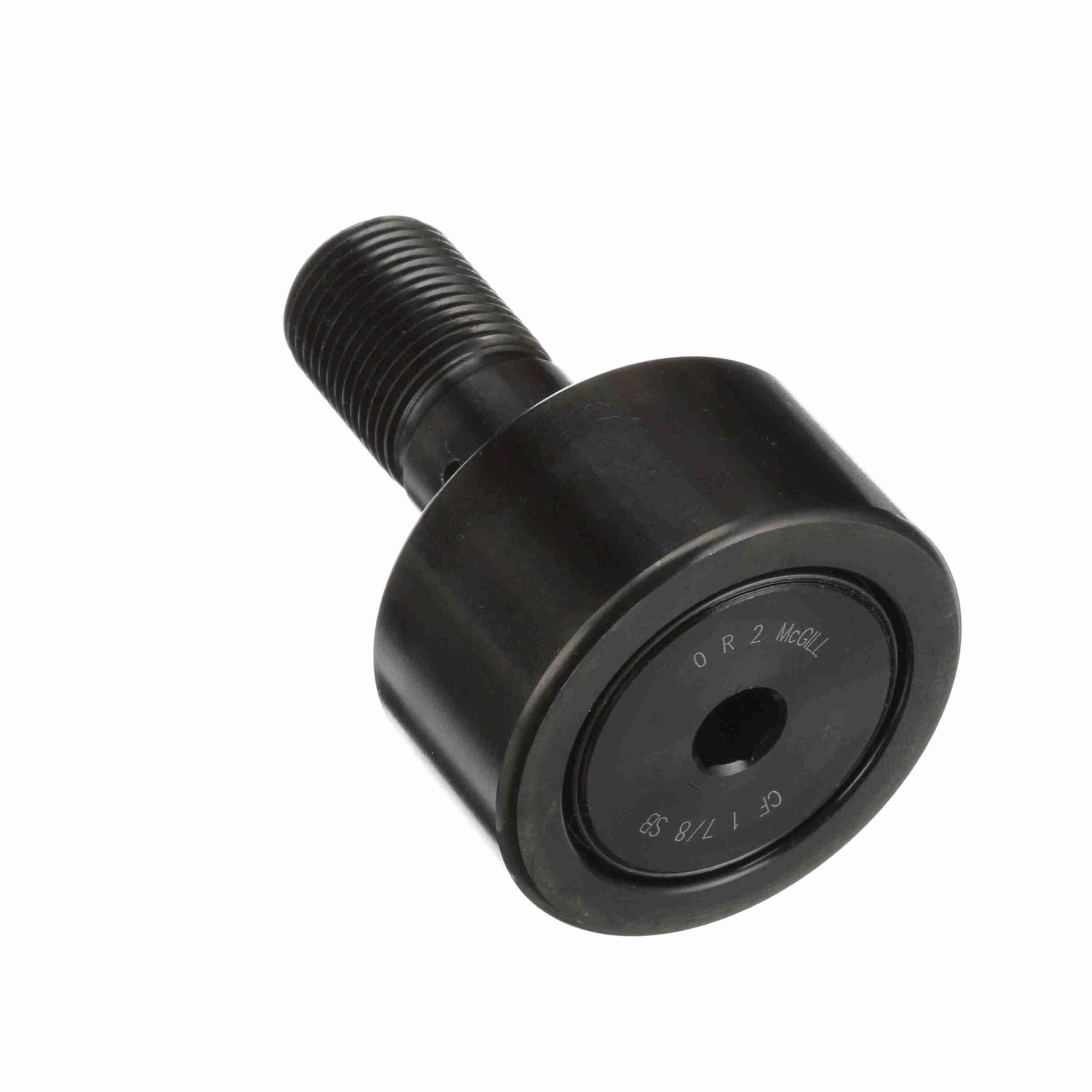

McGill CAMROL® Cylindrical Inch Cam Follower – Stud Mount Roller – Hex Hole – Sealed – CF 1 7/8 SB
$42.63
Availability: 79 in stock
Availability: 79 in stock
| Dynamic Radial Rating: | 6 | Rolling Element: | Needle Roller - Full Complement |
|---|---|---|---|
| Hex/Slot: | Hex Hole | Sealing: | Sealed |
| Adjustment: | None | Series: | Inch CAMROL® |
| O.D. Configuration: | Cylindrical | Limiting Speed: | 2 |
| Material: | Bearing Steel, Black Oxide Finish | Stud Type: | Standard Stud |
| Platform: | CAMROL® | Roller Shape: | Cylindrical |
| Tolerance Class: | P0 Equivalent | Dynamic Load Rating (lb): | 6, 385 lb |
| Static Load Rating: | 6 | Ability to Relubricate: | Yes |
| Clamping Torque (in-lbf): | 1, 250 lbs | UPC: | 726166036973 |
| Weight: | 0.89 LB | Packaged Length: | 2 Inches |
| Packaged Width: | 2 Inches | Packaged Height: | 2.87 Inches |
| HTC: | 8482.40.0000 | Country of Origin: | Mexico |
