- Stud type cam follower
- Cylindrical outside diameter
- Needle rolling elements
- Slot hole
- Narrow roller width
CF 1/2 N

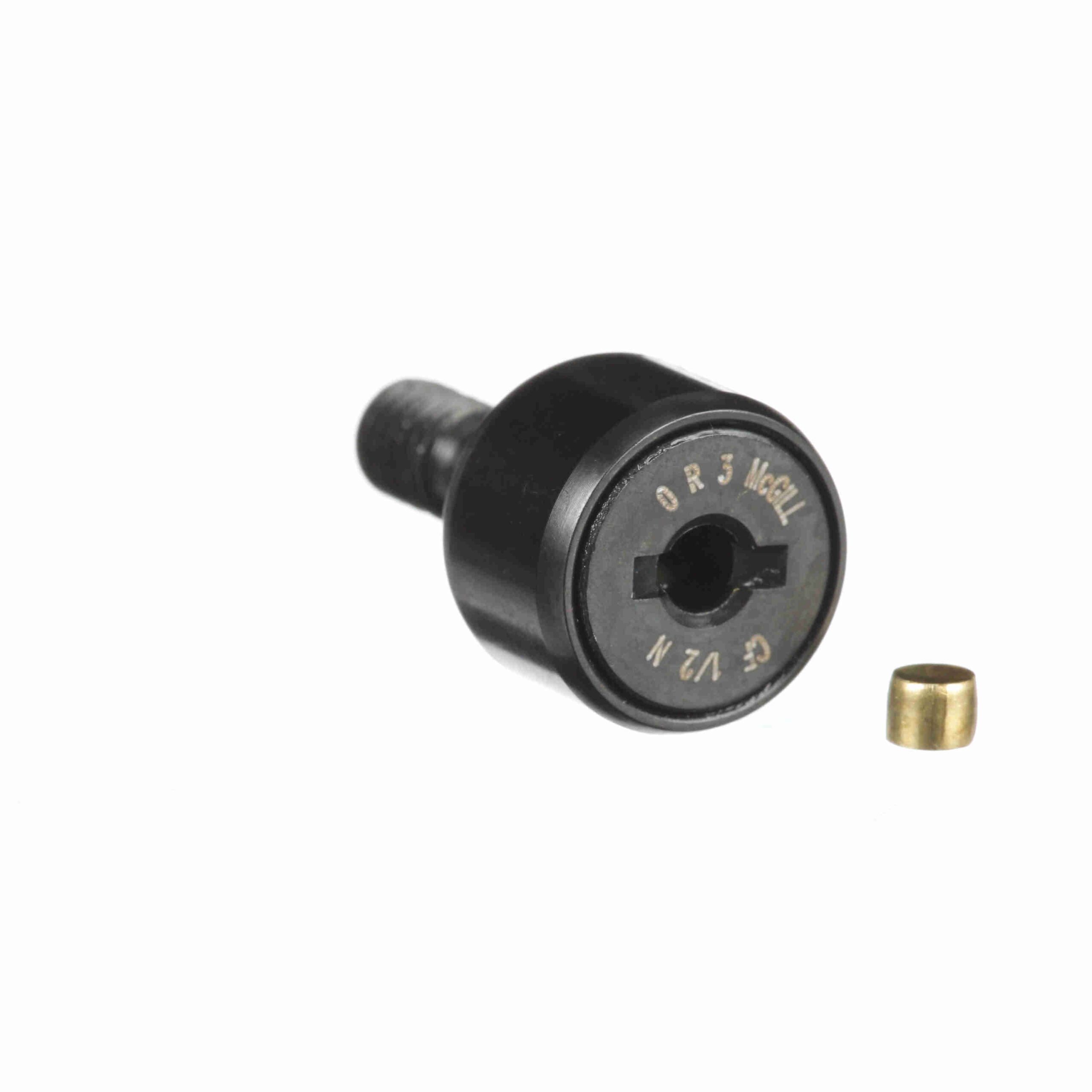

McGill CAMROL® Cylindrical Inch Cam Follower – Stud Mount Roller – Screwdriver Slot – CF 1/2 N
$24.40
Availability: 19 in stock
Availability: 19 in stock
| Dynamic Radial Rating: | 620 | Limiting Speed: | 12 |
|---|---|---|---|
| Series: | Inch CAMROL® | Rolling Element: | Needle Roller - Full Complement |
| Sealing: | Unsealed | Adjustment: | None |
| Hex/Slot: | Screwdriver Slot | O.D. Configuration: | Cylindrical |
| Material: | Bearing Steel, Black Oxide Finish | Platform: | CAMROL® |
| Tolerance Class: | P0 Equivalent | Stud Type: | Standard Stud |
| Static Load Rating: | 720 | Dynamic Load Rating (lb): | 620 lb |
| Roller Shape: | Cylindrical | Lubrication Hole Location: | Stud side |
| Ability to Relubricate: | No | Clamping Torque (in-lbf): | 15 lbs |
| UPC: | 726166029586 | Weight: | 0.04 LB |
| Packaged Length: | 1.75 Inches | Packaged Width: | 1 Inches |
| Packaged Height: | 1.75 Inches | HTC: | 8482.40.0000 |
