- Stud type cam follower
- Cylindrical outside diameter
- Needle rolling elements
- Slot hole
CF 1 1/4

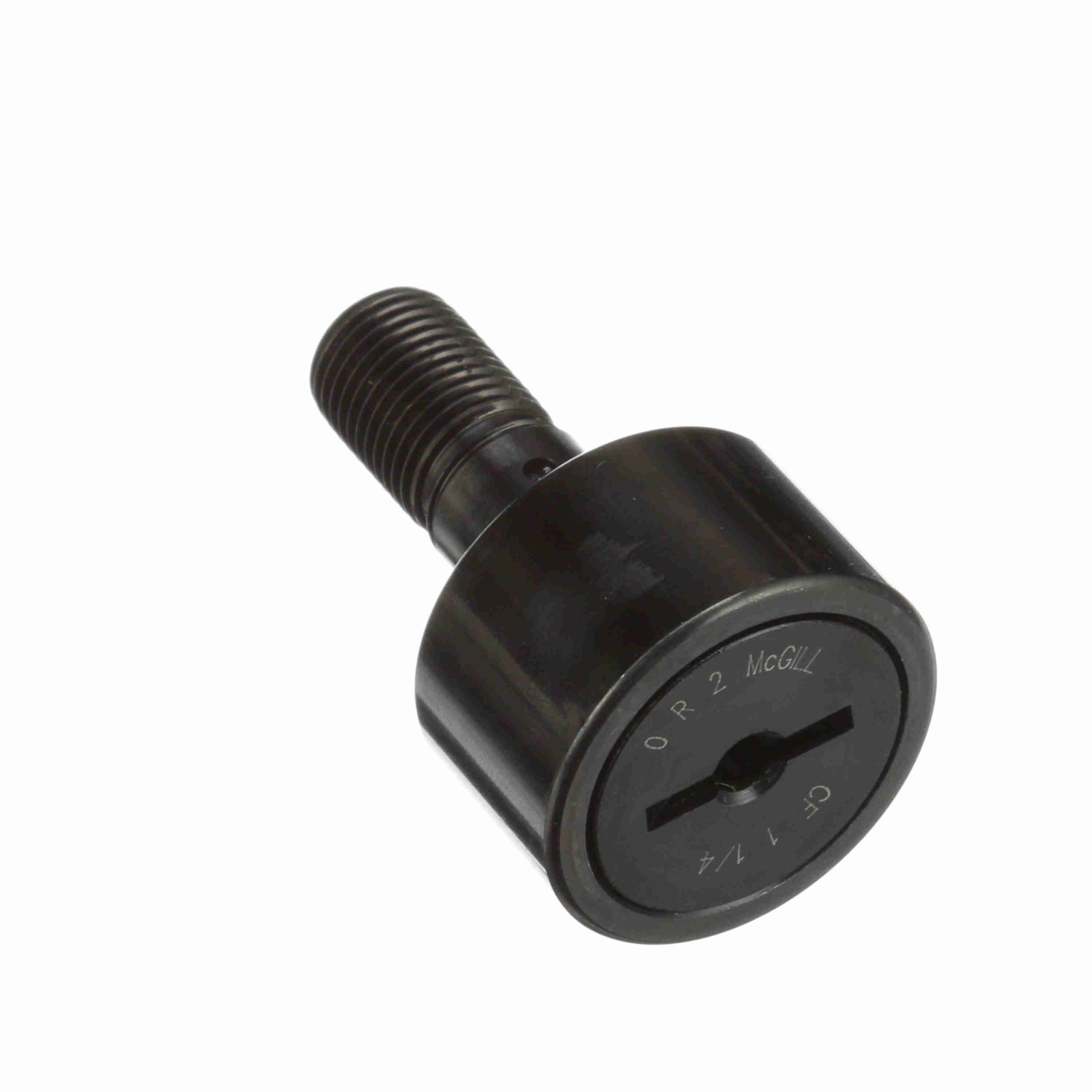

McGill CAMROL® Cylindrical Inch Cam Follower – Stud Mount Roller – Screwdriver Slot – CF 1 1/4
$22.59
Availability: 63 in stock
Availability: 63 in stock
| Adjustment: | None | Hex/Slot: | Screwdriver Slot |
|---|---|---|---|
| Sealing: | Unsealed | O.D. Configuration: | Cylindrical |
| Series: | Inch CAMROL® | Limiting Speed: | 3 |
| Rolling Element: | Needle Roller - Full Complement | Dynamic Radial Rating: | 4 |
| Material: | Bearing Steel, Black Oxide Finish | Dynamic Load Rating (lb): | 3, 930 lb |
| Roller Shape: | Cylindrical | Tolerance Class: | P0 Equivalent |
| Platform: | CAMROL® | Stud Type: | Standard Stud |
| Static Load Rating: | 2 | Clamping Torque (in-lbf): | 350 lbs |
| Ability to Relubricate: | Yes | UPC: | 726166034191 |
| Weight: | 0.33 LB | Packaged Length: | 1.5 Inches |
| Packaged Width: | 1.75 Inches | Packaged Height: | 2.18 Inches |
| HTC: | 8482.40.0000 | Country of Origin: | Mexico |
