- Stud type cam follower
- Cylindrical outside diameter
- Needle rolling elements
- Hex hole
- LUBRI-DISC® seal
CF 1 1/4 SB THT

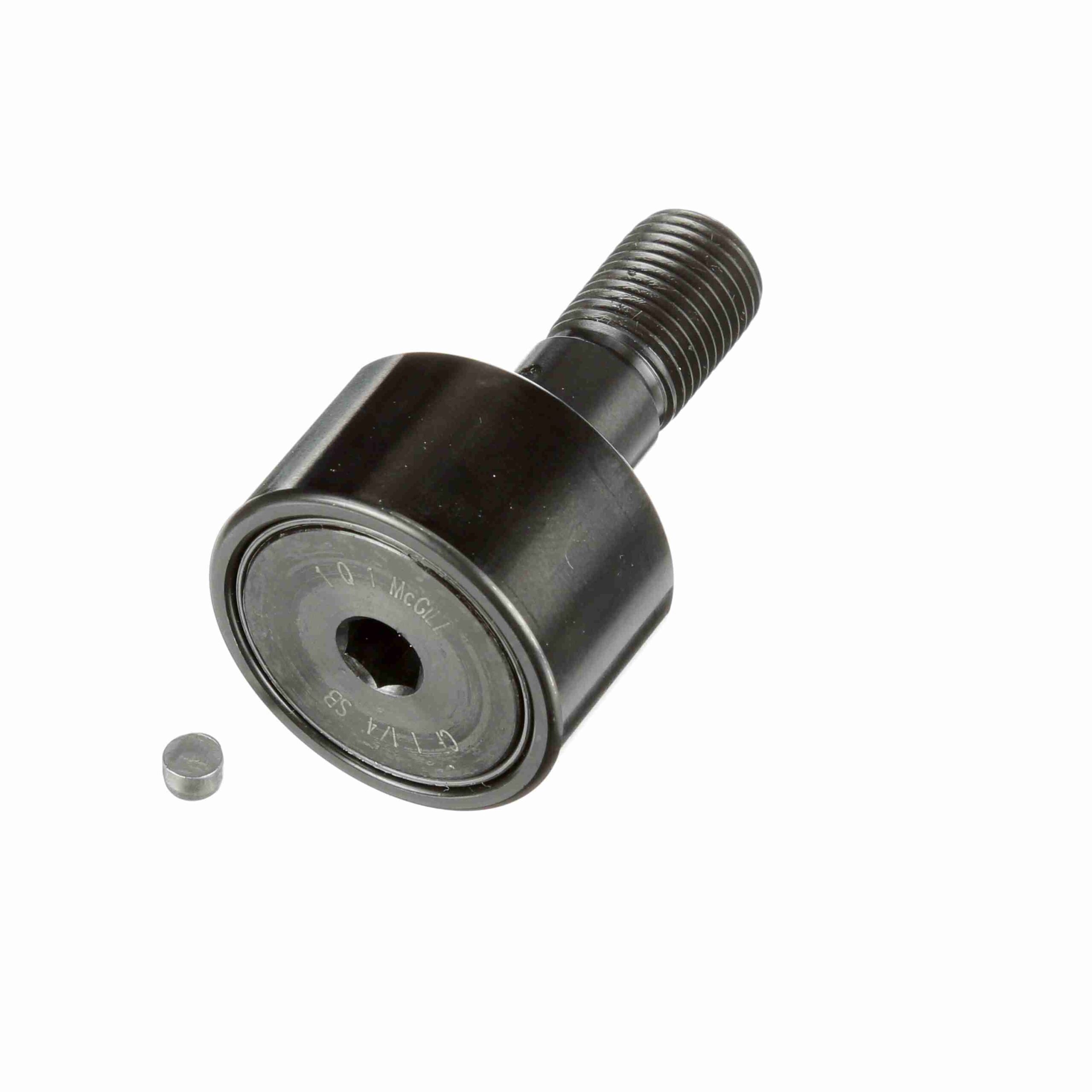

McGill CAMROL® Cylindrical Inch Cam Follower – Stud Mount Roller – Hex Hole – Sealed – CF 1 1/4 SB THT
$115.73
Out of stock
Out of stock
| Series: | Inch CAMROL® | O.D. Configuration: | Cylindrical |
|---|---|---|---|
| Limiting Speed: | 3 | Sealing: | Sealed |
| Dynamic Radial Rating: | 4 | Rolling Element: | Needle Roller - Full Complement |
| Hex/Slot: | Hex Hole | Adjustment: | None |
| Material: | Bearing Steel, Black Oxide Finish | Platform: | CAMROL® |
| Dynamic Load Rating (lb): | 3, 930 lb | Roller Shape: | Cylindrical |
| Tolerance Class: | P0 Equivalent | Stud Type: | Standard Stud |
| Static Load Rating: | 2 | Ability to Relubricate: | Yes |
| Clamping Torque (in-lbf): | 350 lbs | UPC: | 726166088682 |
| Weight: | 0.28 LB | Packaged Length: | 1.5 Inches |
| Packaged Width: | 1.75 Inches | Packaged Height: | 2.18 Inches |
| HTC: | 8482.40.0000 | Country of Origin: | Mexico |
