- Stud type cam follower
- Crowned outside diameter
- Needle rolling elements
- Slot hole
- LUBRI-DISC® seal

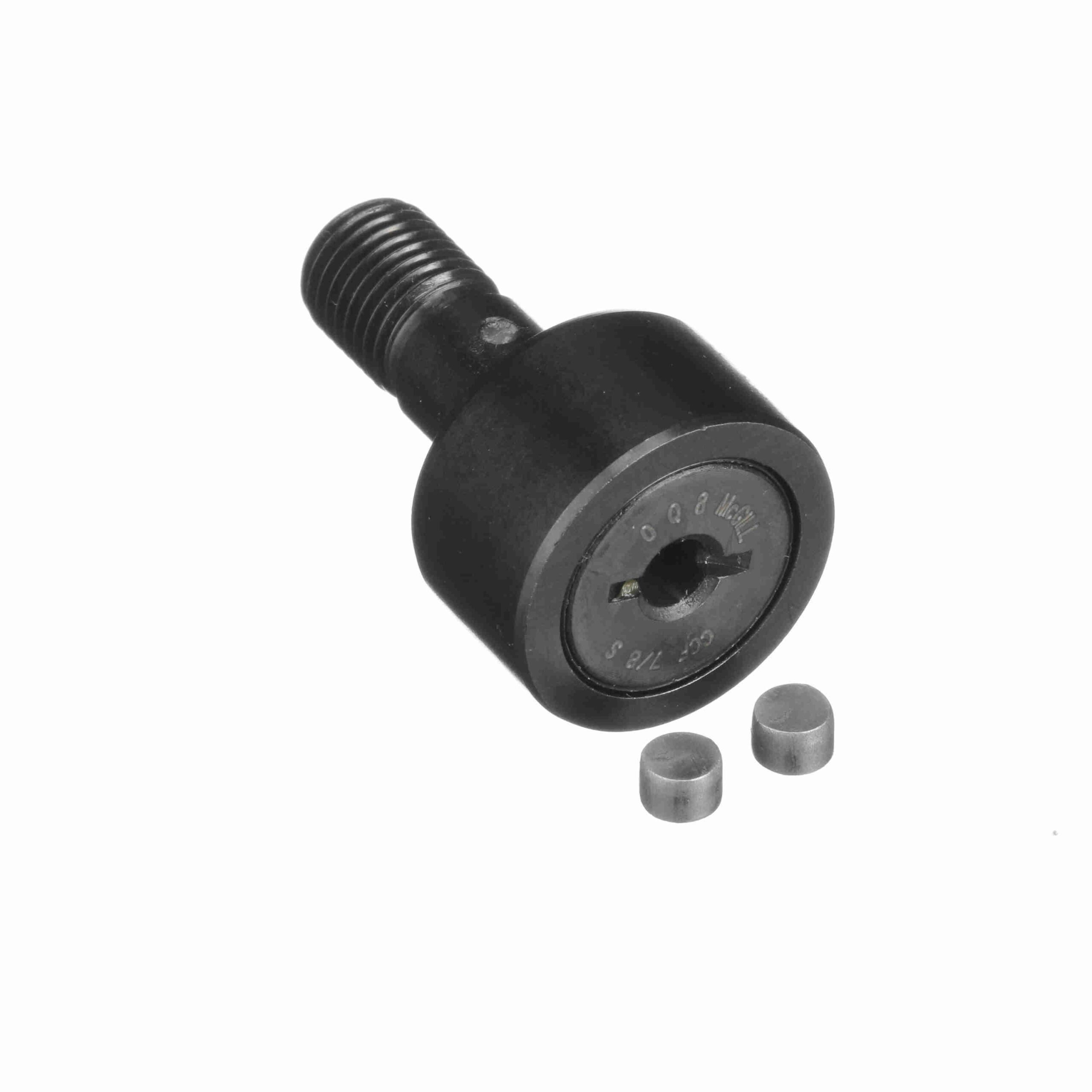

CCF 7/8 S
McGill CAMROL® Crowned Inch Cam Follower – Stud Mount Roller – Screwdriver Slot – Sealed – CCF 7/8 S
$28.55
Availability: 92 in stock
Availability: 92 in stock
| Hex/Slot: | Screwdriver Slot | Sealing: | Sealed |
|---|---|---|---|
| Rolling Element: | Needle Roller - Full Complement | Series: | Inch CAMROL® |
| Adjustment: | None | O.D. Configuration: | Crowned |
| Limiting Speed: | 5 | Dynamic Radial Rating: | 2 |
| Material: | Bearing Steel, Black Oxide Finish | Dynamic Load Rating (lb): | 1, 660 lb |
| Platform: | CAMROL® | Tolerance Class: | P0 Equivalent |
| Roller Shape: | Crowned | Static Load Rating: | 2 |
| Stud Type: | Standard Stud | Clamping Torque (in-lbf): | 95 lbs |
| Ability to Relubricate: | Yes | UPC: | 726166032869 |
| Weight: | 0.11 LB | Packaged Length: | 1.75 Inches |
| Packaged Width: | 1 Inches | Packaged Height: | 1.75 Inches |
| HTC: | 8482.40.0000 | Country of Origin: | Mexico |
