- Stud type cam follower
- Crowned outside diameter
- Needle rolling elements
- Slot hole
- LUBRI-DISC® seal
CCF 1 S

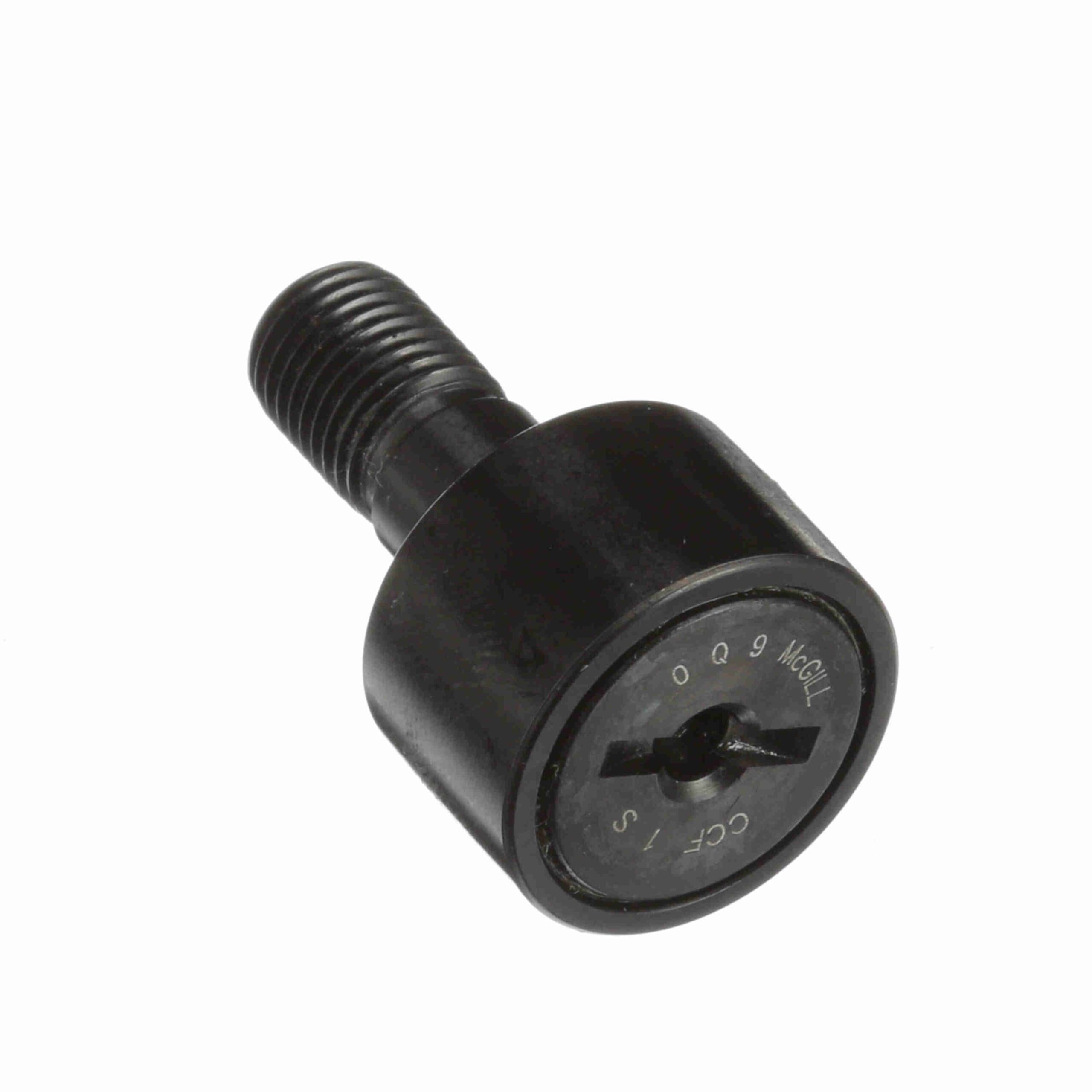

McGill CAMROL® Crowned Inch Cam Follower – Stud Mount Roller – Screwdriver Slot – Sealed – CCF 1 S
$26.93
Availability: 14 in stock
Availability: 14 in stock
| Limiting Speed: | 5 | Adjustment: | None |
|---|---|---|---|
| Rolling Element: | Needle Roller - Full Complement | O.D. Configuration: | Crowned |
| Sealing: | Sealed | Hex/Slot: | Screwdriver Slot |
| Dynamic Radial Rating: | 2 | Series: | Inch CAMROL® |
| Material: | Bearing Steel, Black Oxide Finish | Roller Shape: | Crowned |
| Tolerance Class: | P0 Equivalent | Platform: | CAMROL® |
| Dynamic Load Rating (lb): | 2, 225 lb | Static Load Rating: | 3 |
| Stud Type: | Standard Stud | Clamping Torque (in-lbf): | 250 lbs |
| Ability to Relubricate: | Yes | UPC: | 726166033545 |
| Weight: | 0.15 LB | Packaged Length: | 1.75 Inches |
| Packaged Width: | 1 Inches | Packaged Height: | 1.75 Inches |
| HTC: | 8482.40.0000 |
