- Stud type cam follower
- Crowned outside diameter
- Needle rolling elements
- Slot hole
- LUBRI-DISC® seal
CCF 1 1/2 S

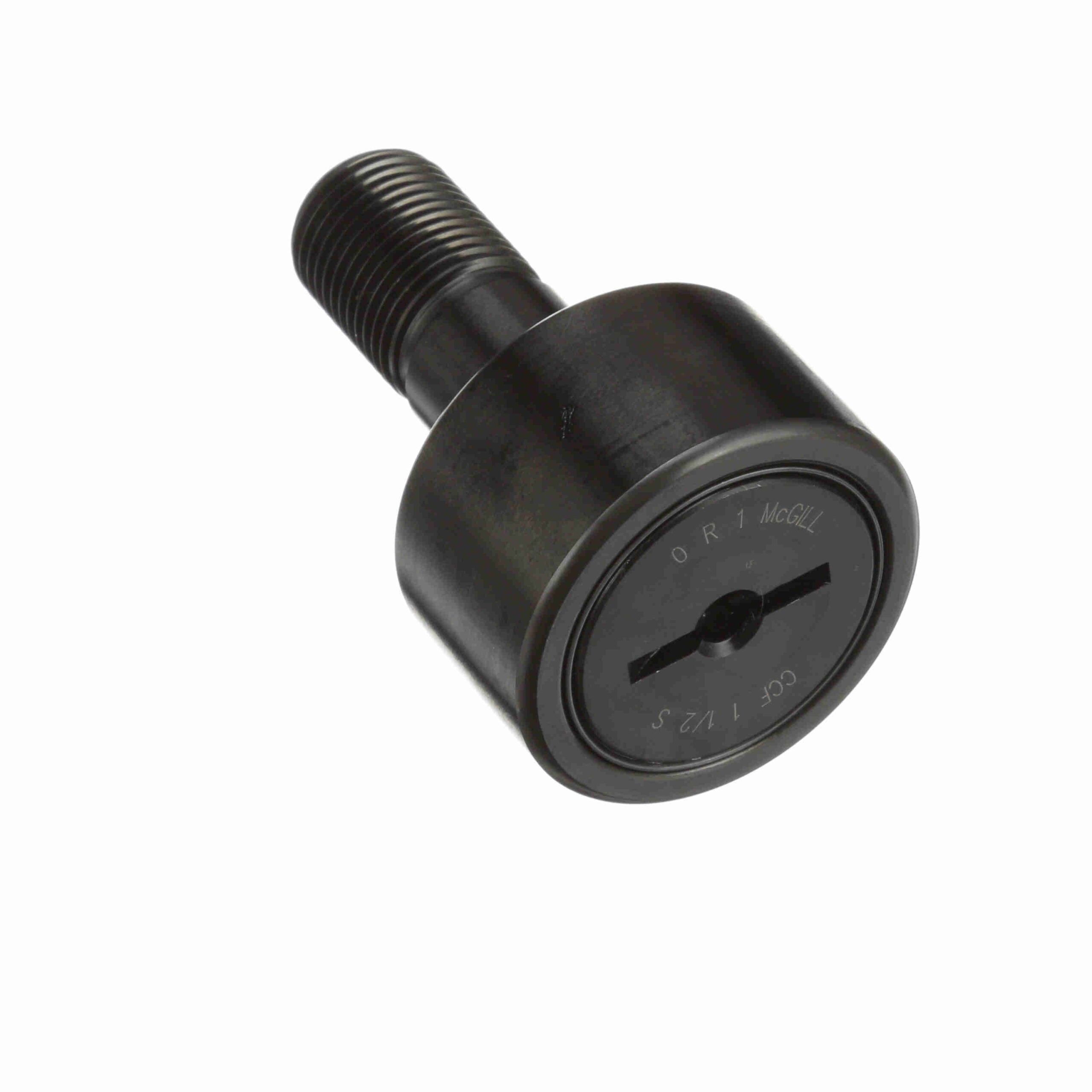

McGill CAMROL® Crowned Inch Cam Follower – Stud Mount Roller – Screwdriver Slot – Sealed – CCF 1 1/2 S
$42.60
Availability: 71 in stock
Availability: 71 in stock
| Series: | Inch CAMROL® | O.D. Configuration: | Crowned |
|---|---|---|---|
| Adjustment: | None | Hex/Slot: | Screwdriver Slot |
| Dynamic Radial Rating: | 5 | Rolling Element: | Needle Roller - Full Complement |
| Sealing: | Sealed | Limiting Speed: | 3 |
| Material: | Bearing Steel, Black Oxide Finish | Stud Type: | Standard Stud |
| Roller Shape: | Crowned | Dynamic Load Rating (lb): | 4, 840 lb |
| Static Load Rating: | 4 | Tolerance Class: | P0 Equivalent |
| Platform: | CAMROL® | Ability to Relubricate: | Yes |
| Clamping Torque (in-lbf): | 650 lbs | UPC: | 726166035822 |
| Weight: | 0.52 LB | Packaged Length: | 1.8 Inches |
| Packaged Width: | 2.5 Inches | Packaged Height: | 1.7 Inches |
| HTC: | 8482.40.0000 |
