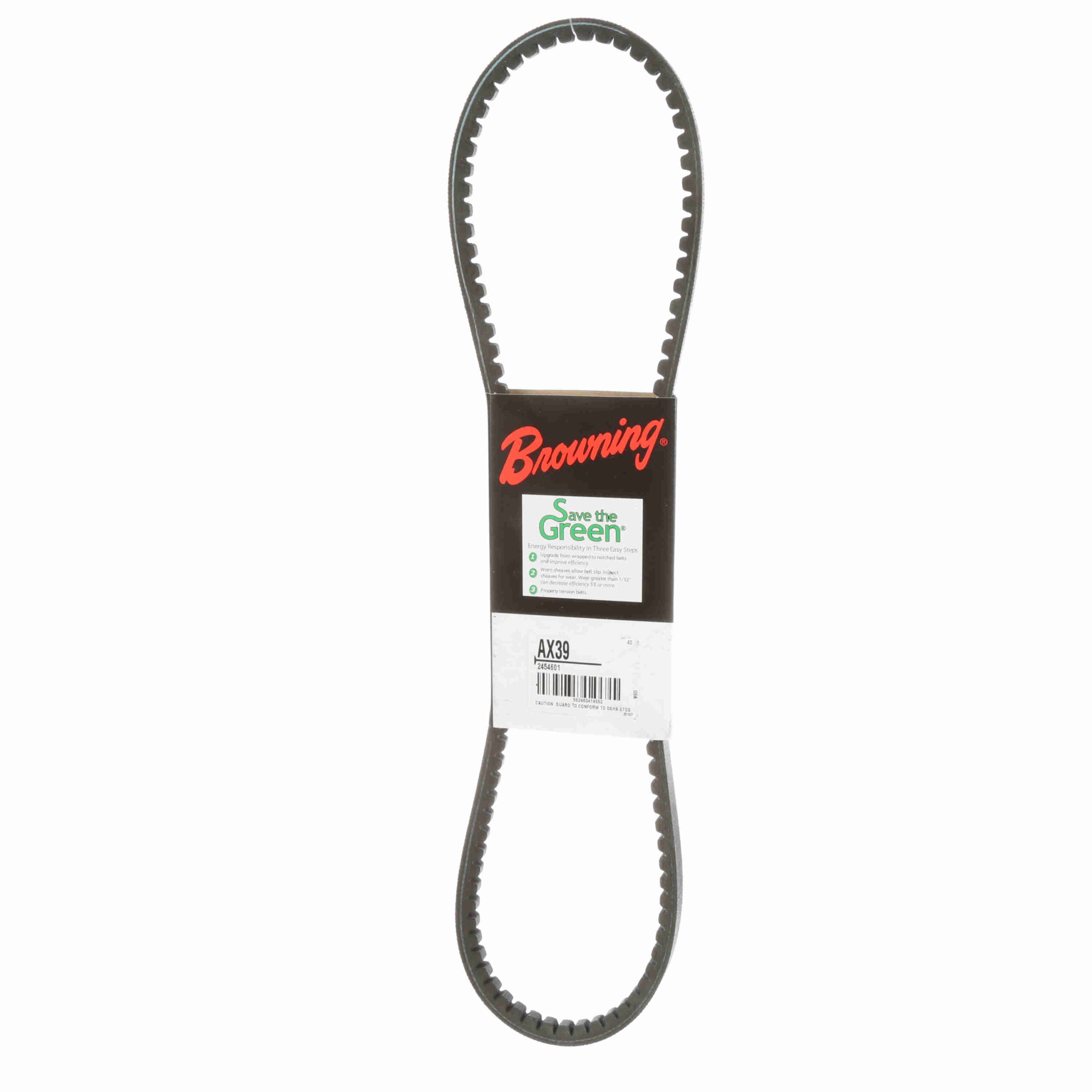

AX39

EPDM Material provides expanded operating temperature range to -60F degrees to 250F degrees which helps ensure long-life and reliable performance in the moste demanding climates and heat sensitive applications.
Precision Molded Cogs – Provide more surface area for heat dissipation and increase belt flexibility. Cooler running means longer life. Browning Notched belts assure longer life when replacing existing Wrapped V-Belts.
Close Belt tolerance – Browning Belts offer the “Code 1” Match belt system on all classical and “358” Belts, allowing easy selection of just one match number for each belt size. This ensures tighter than RMA standards.
High Tensile Cord – Specially treated cords to provide strength and additional flex life while providing resistance to elongation for the belt.
Raw-Edge Sidewalls – Improved gripping contract with pulley sidewalls. Assures less vibration and Smoother , quieter performance. Notched belts provide higher horsepower than wrapped belts.

Pitch Length:	40.3	Belt Section:	AX
Type:	Gripnotch Notched V-Belts	Material:	EPDM
Operating Temperature [Max] ?F:	250 ?F	Operating Temperature [Max] ?C:	121 ?C
Efficiency (%):	0.98	Product Type:	Notched Belt
Outside Length/Diameter (in):	41.2 in	Outside Diameter (in):	41.2 in
Height:	0.312	Number of Ribs:	1
Standards met:	ARPM IP-20	Width (in):	0.5 in
Reinforcing cord material:	Polyester	Belt Series:	Classical Series - Inch
Construction Type:	Cogged	Section Size:	AX
Resistance Features:	Oil & Chemical per ARPM IP-3-2, Static Dissipating per ARPM IP-3-3	Operating Temperature Range:	-70 to +250 ?F
UPC:	662460414652	Weight:	0.23 LB
Packaged Length:	4 Inches	Packaged Width:	18.25 Inches
Packaged Height:	0.75 Inches	HTC:	4010.32.3000
Country of Origin:	United States of America
