- Three-piece precision construction
- Heat Treated, Chrome Plated Ball
- Heat Treated, Plated Alloy steel housing
- Male External Threads
- One-Piece Carbon Steel Outer Race
ARE 8 20N

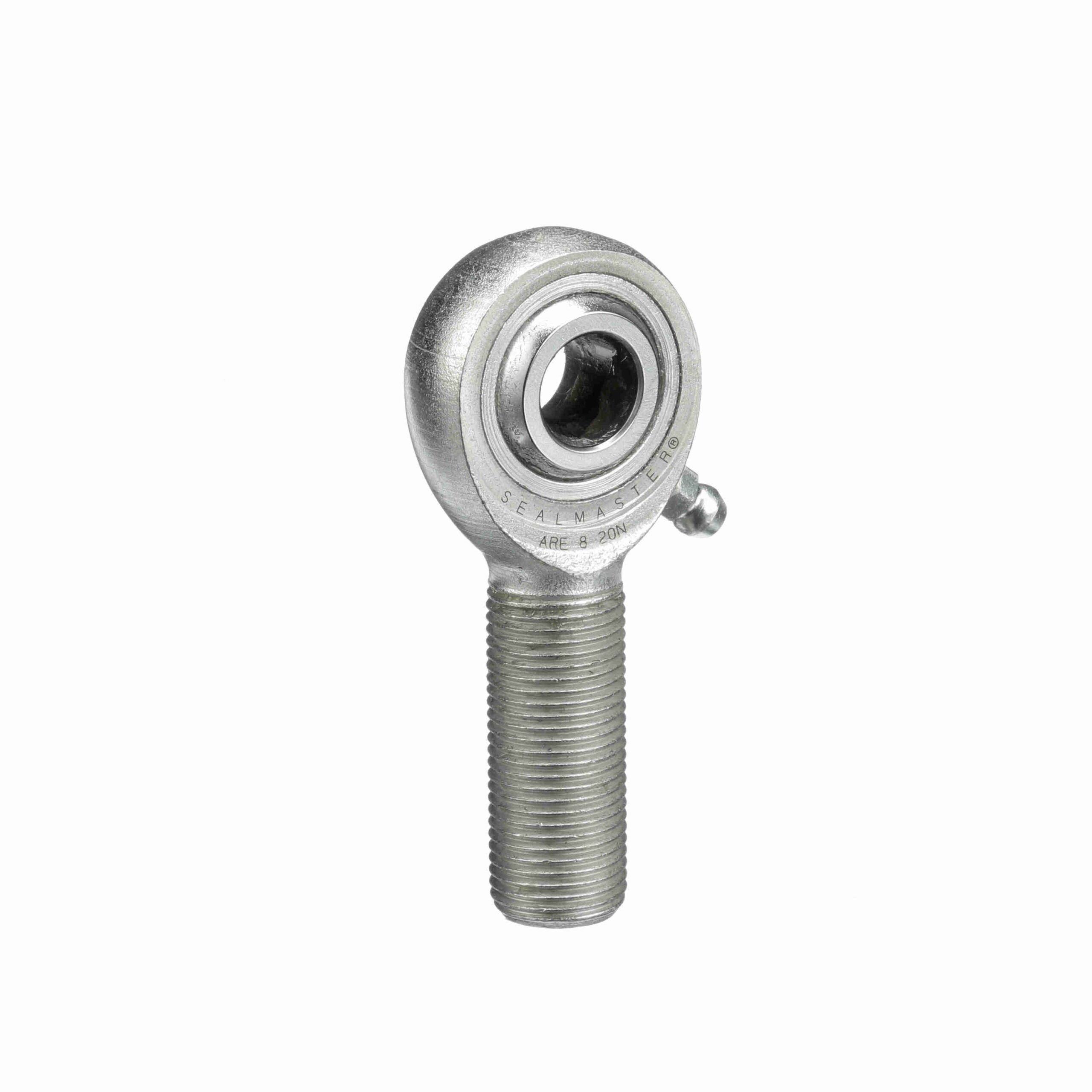

Sealmaster Male Rod End Bearing – Three-Piece Greasable Carbon Steel Race – ARE 8 20N
$82.02
Availability: 5 in stock
Availability: 5 in stock
| Product Selection Available SW: | Y | Maximum Ambient Temperature: | 350 |
|---|---|---|---|
| Ball Material: | Alloy Steel - Heat Treated - Chrome Plated | Construction: | Three-Piece Rod End with Zerk Fitting |
| Zerk Fitting SW: | Y | Lubrication Type: | Grease |
| Race Material: | Carbon Steel - corrosion resistant plating | Outer Material: | 4130 Alloy Steel - Heat Treated - Corrosion Resistant Plating |
| Thread Type: | UNF | Configuration: | Male |
| Bearing Type: | Rod End | Housing Style: | Male Rod End |
| Series: | Precision Extra Capacity | Axial Load: | 1, 350 |
| Misalignment Angle - a Deg. +/-: | 6 | Product Type: | ARE-20 |
| Relubricatable: | Yes | Max Static Radial Load: | 13, 500 |
| Thread: | RH | Type: | Male Rod End |
| Lubrication: | Zerk Fitting | Class: | Precision |
| Lubrication Method: | Fitting | UPC: | 662288719816 |
| Weight: | 0.31 LB | Packaged Length: | 3.09 Inches |
| Packaged Width: | 1.31 Inches | Packaged Height: | 0.63 Inches |
| HTC: | 8483.30.8055 | Country of Origin: | Mexico |
