- Three-piece precision construction
- Heat Treated, Chrome Plated Ball
- Heat Treated, Plated Alloy steel housing
- Male External Threads
- One-Piece Carbon Steel Outer Race
ARE 6 20N

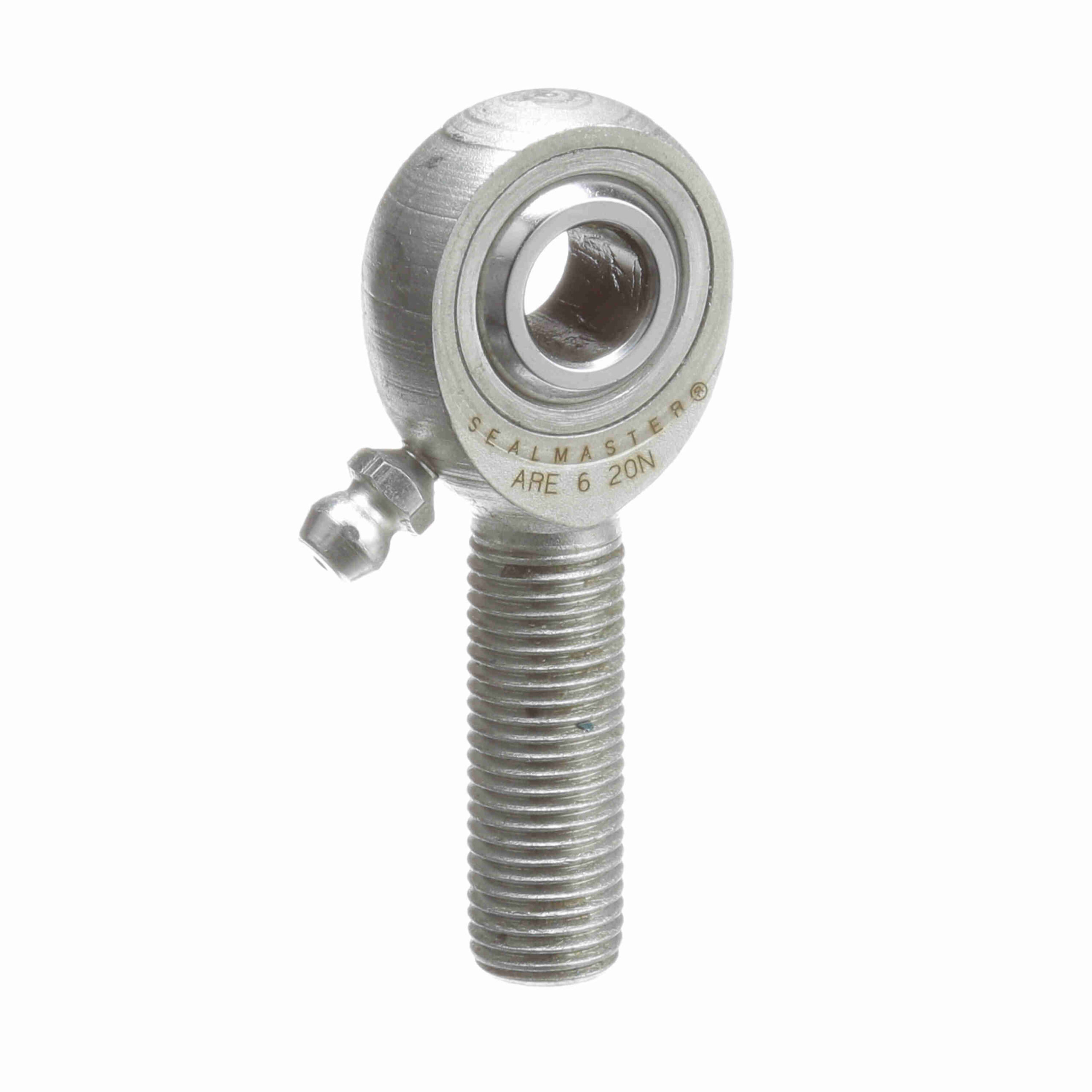

Sealmaster Male Rod End Bearing – Three-Piece Greasable Carbon Steel Race – ARE 6 20N
$54.94
Availability: 5 in stock
Availability: 5 in stock
| Series: | Precision Extra Capacity | Construction: | Three-Piece Rod End with Zerk Fitting |
|---|---|---|---|
| Maximum Ambient Temperature: | 350 | Ball Material: | Alloy Steel - Heat Treated - Chrome Plated |
| Bearing Type: | Rod End | Thread Type: | UNF |
| Race Material: | Carbon Steel - corrosion resistant plating | Misalignment Angle - a Deg. +/-: | 6 |
| Outer Material: | 4130 Alloy Steel - Heat Treated - Corrosion Resistant Plating | Product Selection Available SW: | Y |
| Zerk Fitting SW: | Y | Product Type: | ARE-20 |
| Axial Load: | 957 | Configuration: | Male |
| Housing Style: | Male Rod End | Lubrication Type: | Grease |
| Type: | Male Rod End | Lubrication: | Zerk Fitting |
| Max Static Radial Load: | 9, 570 | Relubricatable: | Yes |
| Thread: | RH | Class: | Precision |
| Lubrication Method: | Fitting | UPC: | 662288719793 |
| Weight: | 0.14 LB | Packaged Length: | 2.7 Inches |
| Packaged Width: | 2.15 Inches | Packaged Height: | 0.7 Inches |
| HTC: | 8483.30.8055 | Country of Origin: | Mexico |
