- Three-piece precision construction
- Heat Treated, Chrome Plated Ball
- Heat Treated, Plated Alloy steel housing
- Male External Threads
- One-Piece Carbon Steel Outer Race
ARE 3 20

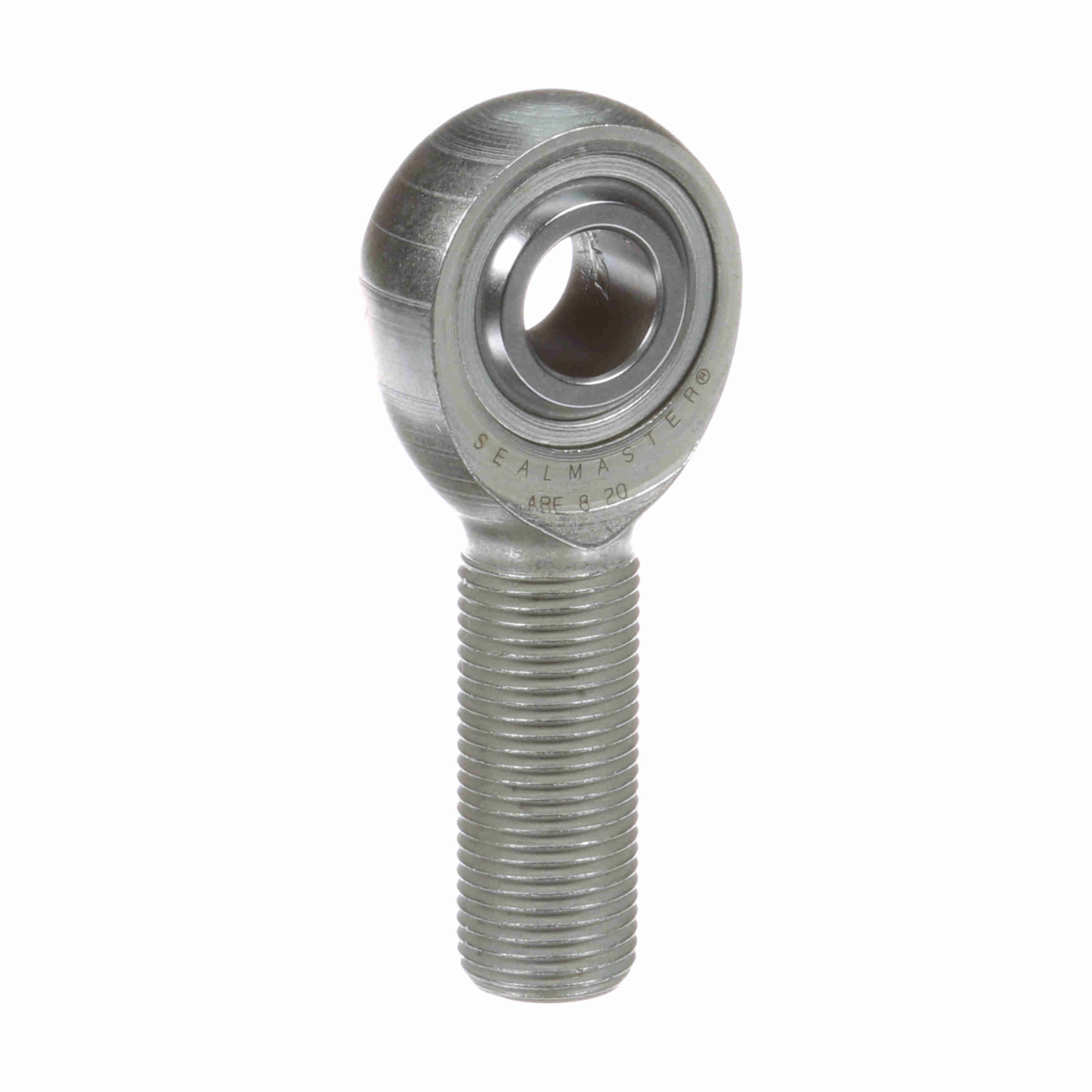

Sealmaster Male Rod End Bearing – Three-Piece Rod End Carbon Steel Race – ARE 3 20
$134.59
Out of stock
Out of stock
| Series: | Precision Extra Capacity | Construction: | Three-Piece Rod End |
|---|---|---|---|
| Thread Type: | UNF | Maximum Ambient Temperature: | 350 |
| Outer Material: | 4130 Alloy Steel - Heat Treated - Corrosion Resistant Plating | Configuration: | Male |
| Race Material: | Carbon Steel - corrosion resistant plating | Ball Material: | Alloy Steel - Heat Treated - Chrome Plated |
| Product Type: | ARE-20 | Housing Style: | Male Rod End |
| Misalignment Angle - a Deg. +/-: | 6.5 | Bearing Type: | Rod End |
| Lubrication Type: | Grease | Zerk Fitting SW: | N |
| Axial Load: | 370 | Product Selection Available SW: | Y |
| Lubrication: | No Zerk Fitting | Max Static Radial Load: | 3, 700 |
| Relubricatable: | None | Thread: | RH |
| Type: | Male Rod End | Class: | Precision |
| Lubrication Method: | No Fitting | UPC: | 662288719007 |
| Weight: | 0.03 LB | Packaged Length: | 1.56 Inches |
| Packaged Width: | 0.63 Inches | Packaged Height: | 0.31 Inches |
| HTC: | 8483.30.8055 | Country of Origin: | Mexico |
