- Bearing insert installed in brass expansion ring
- Skwezloc® concentric locking for near perfect concentricity
- Single lip contact seal
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

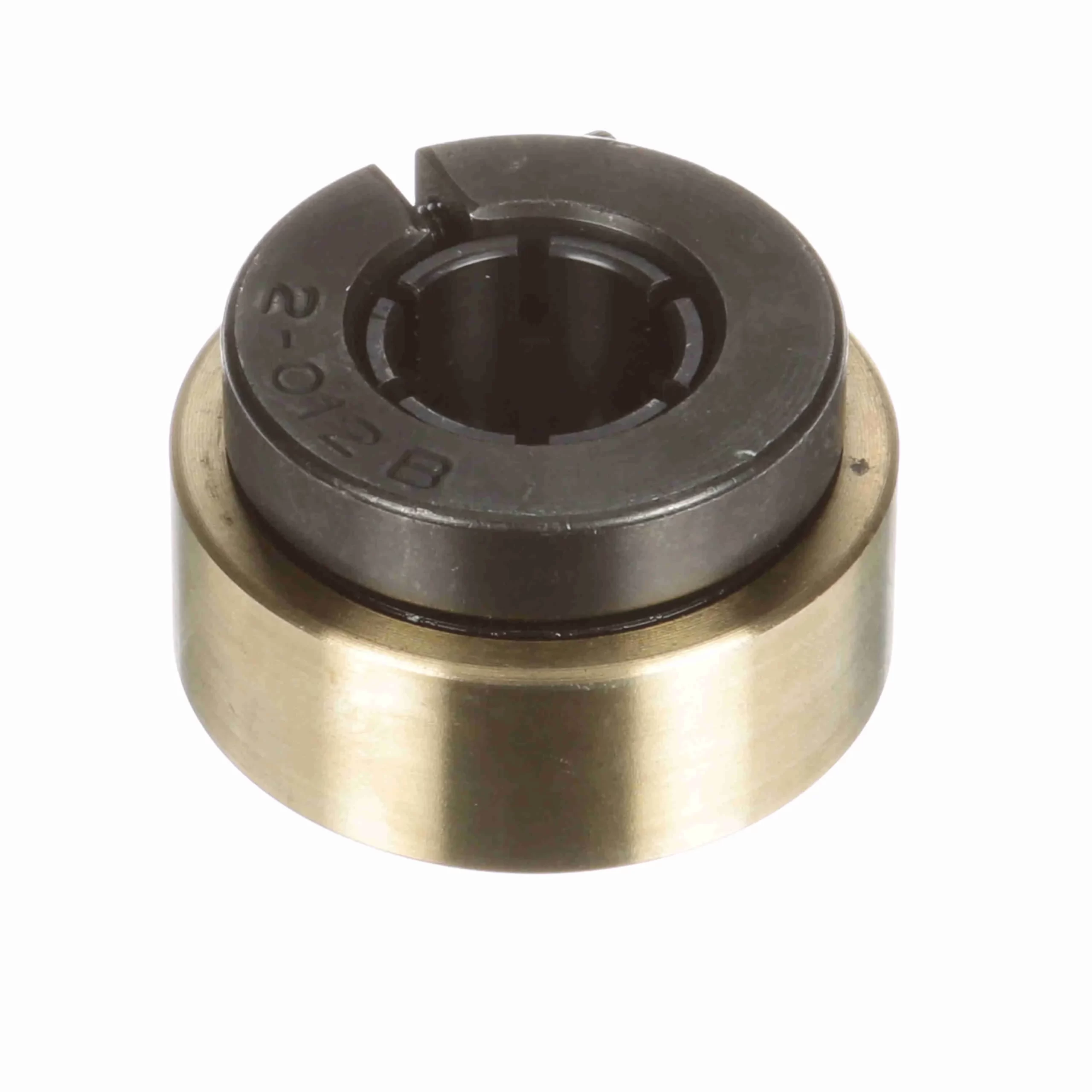

AR-2-18TC
Sealmaster Mounted Insert Only Ball Bearing – 52100 Bearing Steel, Black Oxided – Concentric Lock – AR-2-18TC
$324.65
Out of stock
Out of stock
| Torx Cap Screw: | 10-24 X 3/4 | Bore Shape: | Straight |
|---|---|---|---|
| Housing Type: | Insert Only | Inner-Race Heat-Treat Method: | Zone-Hardened |
| Radius: | 0.062 | Retainer Type: | Land Riding Retainer |
| Insert Material: | 52100 Bearing Steel, Black Oxided | Duty Series: | Standard |
| Measure Units: | Inch | Maximum Operating Temperature: | 220 °F |
| Rolling Element: | Ball Bearing | Seal Type: | Single Lip Contact Seal |
| Radial Dynamic Load Capacity (lb): | 7, 340 | Relubricatable: | Yes |
| Speed (Max): | 4150 | Misalignment: | ±2.0° Misalignment - Static Only |
| Locking Type: | Concentric | Internal Clearance: | Standard |
| Lubrication: | Lithium Complex NLGI 2 Grease | Expansion: | No |
| Misalignment Type: | Static Only | Platform: | Gold Line Ball Bearing |
| Outer Ring Land Profile: | Standard | Bearing Insert Coating: | Black Oxide Coated |
| End Cap: | No | Radial Static Load Capacity (lb): | 4, 467 |
| Precision Rating: | ABEC 1 | Cage Material: | PPS |
| Series: | AR-T | Inner Race Profile: | Wide Inner Ring |
| Outer Race Profile: | Cylindrical | UPC: | 662461034378 |
| Weight: | 2.50 LB | Packaged Length: | 3.63 Inches |
| Packaged Width: | 2 Inches | Packaged Height: | 3.63 Inches |
| HTC: | 8482.10.5052 | Country of Origin: | Mexico |
