- Three-piece precision construction
- Heat Treated, Chrome Plated Ball
- Heat Treated, Plated Alloy steel housing
- Female External Threads
- One-Piece Carbon Steel Outer Race
AR 10

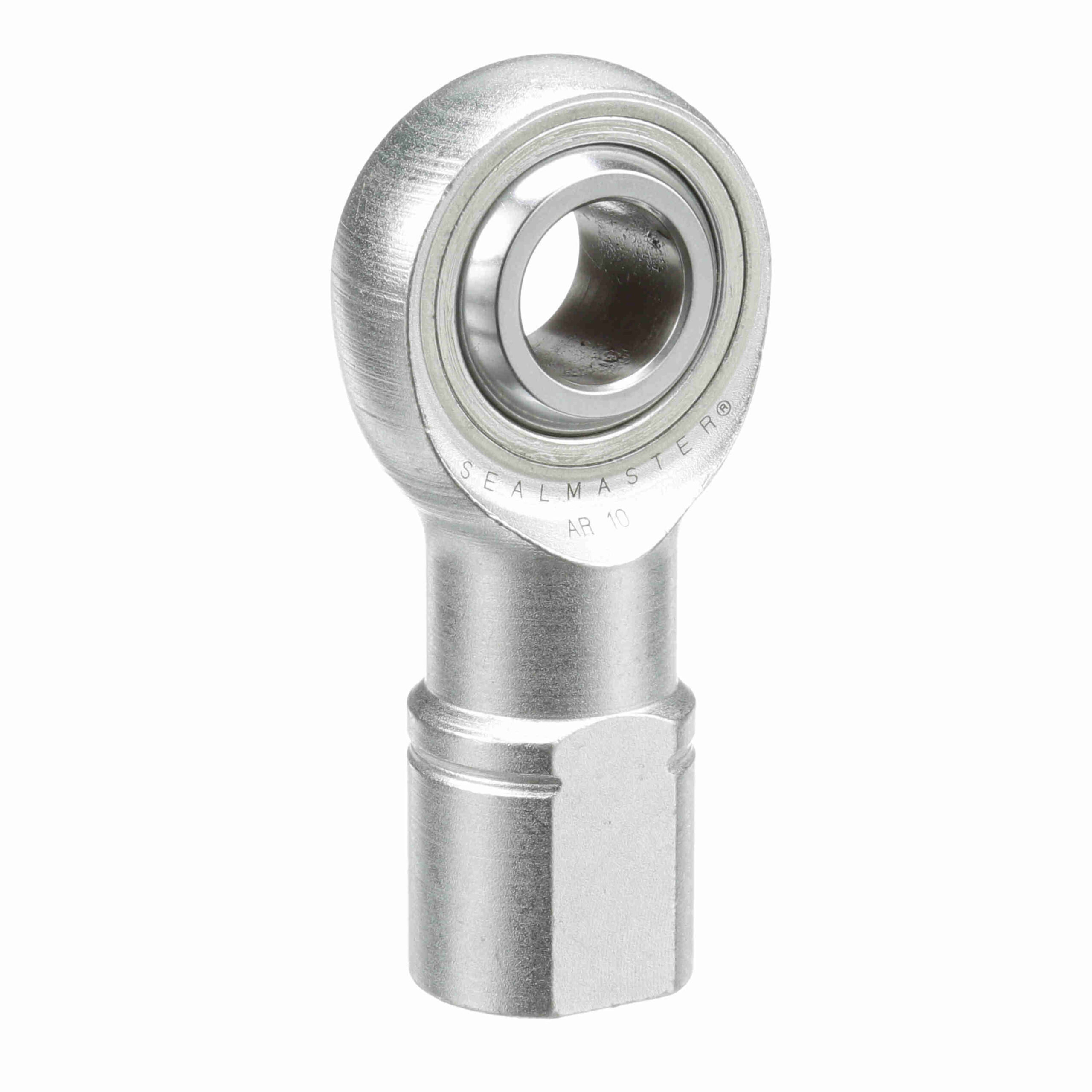

Sealmaster Female Rod End Bearing – Three-Piece Rod End Carbon Steel Race – AR 10
$97.98
Availability: 4 in stock
Availability: 4 in stock
| Configuration: | Female | Product Selection Available SW: | Y |
|---|---|---|---|
| Axial Load: | 1, 730 | Series: | Precision Extra Capacity |
| Bearing Type: | Rod End | Ball Material: | Alloy Steel - Heat Treated - Chrome Plated |
| Outer Material: | 4130 Alloy Steel - Heat Treated - Corrosion Resistant Plating | Housing Style: | Female Rod End |
| Across Wrench Flats: | 0.875 | Product Type: | AR |
| Zerk Fitting SW: | N | Race Material: | Carbon Steel - corrosion resistant plating |
| Lubrication Type: | Grease | Thread Type: | UNF |
| Maximum Ambient Temperature: | 350 | Construction: | Three-Piece Rod End |
| Misalignment Angle - a Deg. +/-: | 8 | Relubricatable: | None |
| Type: | Female Rod End | Max Static Radial Load: | 17, 300 |
| Thread: | RH | Lubrication: | No Zerk Fitting |
| Class: | Precision | Lubrication Method: | No Fitting |
| UPC: | 662288718918 | Weight: | 0.45 LB |
| Packaged Length: | 2.88 Inches | Packaged Width: | 0.88 Inches |
| Packaged Height: | 3.25 Inches | HTC: | 8483.30.8055 |
| Country of Origin: | Mexico |
