- Up to 10 degrees misalignment
- Resilient Design
- Absorbs Vibration
- Exposed and shrouded bolt configurations

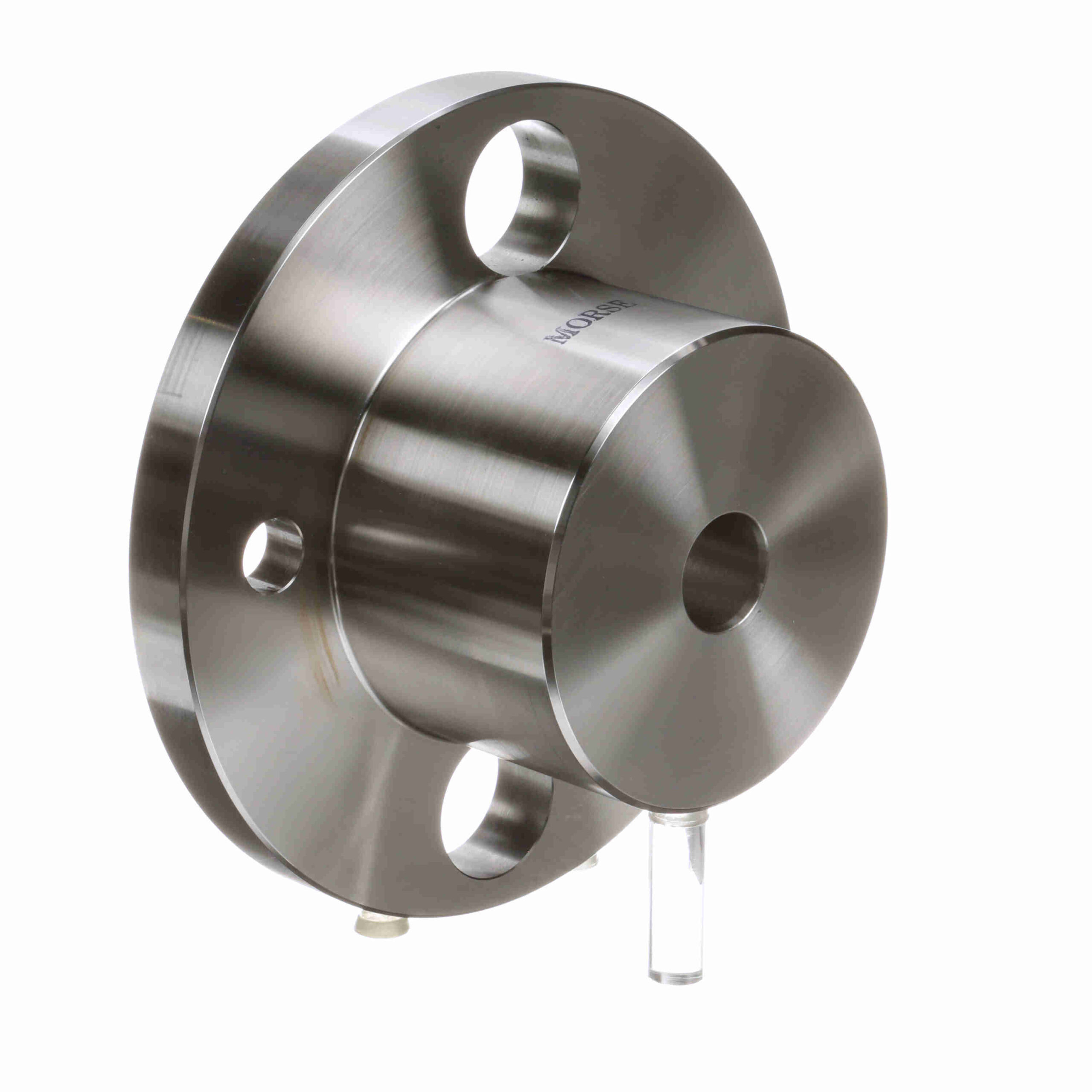

902 MORFLEX FLANGE MB
Morse Elastomeric Coupling – Size 902 – Plain Bore – 902 MORFLEX FLANGE MB
Out of stock
| Max. Bore w/SS over KW (in): | 2.375 in | Bore Type: | Plain Bore |
|---|---|---|---|
| Coupling Size: | 902 | Flange Type: | Round |
| Max Bore w/SS at 180° to KW (in): | 2.75 in | Stock Bore (in): | 1 in |
| Speed Max (rpm): | 4, 200 rpm | Coupling Type: | Elastomeric Coupling |
| Measurement System: | Imperial | Lube/Non-Lube: | Non-Lubricated |
| Torque Rating (in-lb): | 6, 300 in/lbs | Torque Rating (ft-lb): | 525 ft/lbs |
| Bore Size Min (in): | 1 in | UPC: | 662288372028 |
| Weight: | 19.04 LB | Packaged Length: | 8.3 Inches |
| Packaged Width: | 8.4 Inches | Packaged Height: | 4.9 Inches |
| HTC: | 8483.90.8010 | Country of Origin: | Taiwan, Republic of China |
