- Non-Lubricated design for tough industrial applications.
- Maintenance savings through easily replaceable element in the application without moving the driving or driven equipment.
- Available close coupled or spacer configurations.
90 BHUB

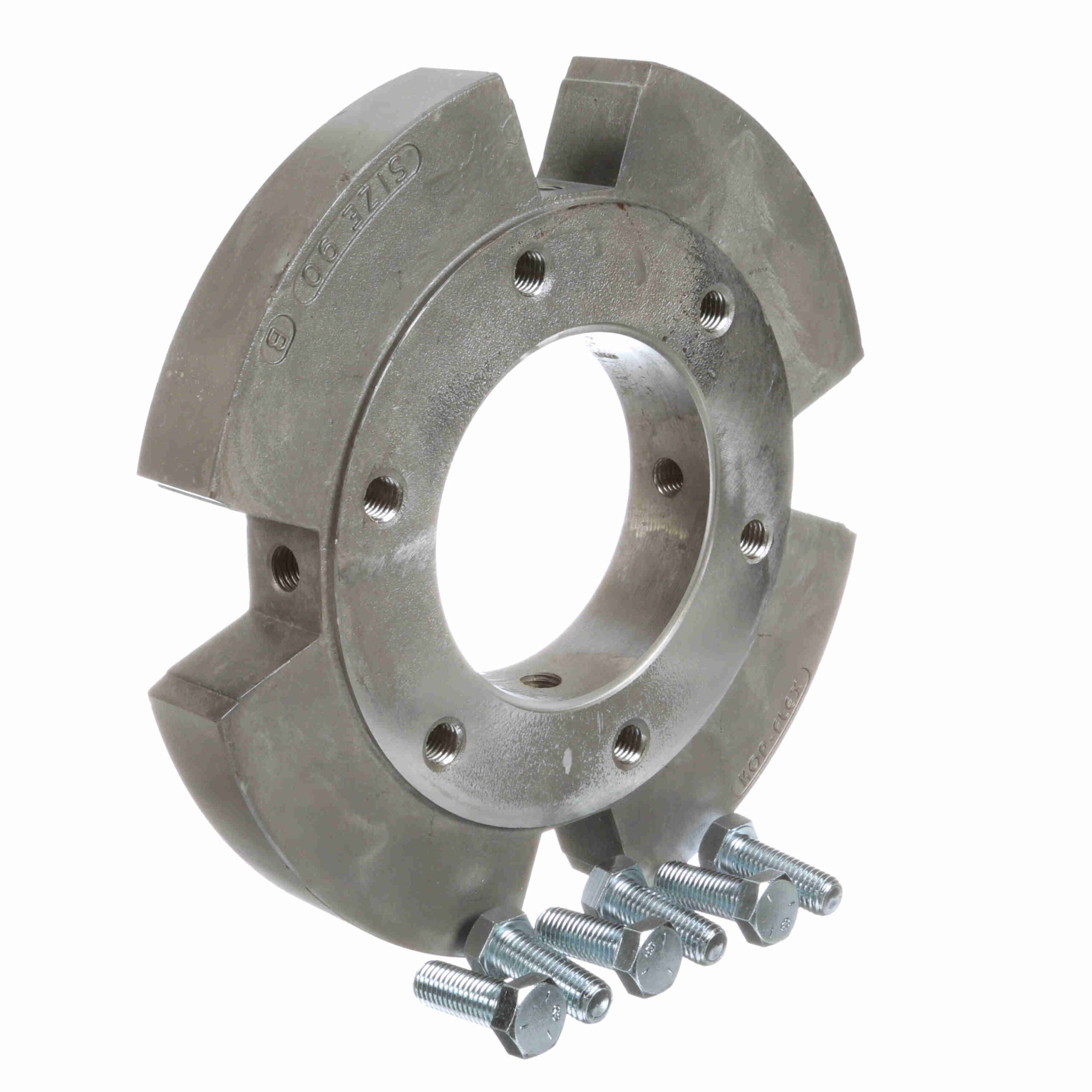

Kop-Flex Elastomeric Coupling Hub – Style Drop-Out Spacer (DO) – Size 90 – Rough Bore – 90 BHUB
Out of stock
| Bore Type: | Rough Bore | Style: | Drop-Out Spacer (DO) |
|---|---|---|---|
| Material: | Aluminum | Model: | Elastomeric |
| Coupling Size: | 90 | Hub Diameter (in): | 12.125 in |
| Outside Diameter (in): | 8.25 in | Length Through Bore (in): | 1.5625 in |
| Coupling Type: | Elastomeric Coupling | Measurement System: | Imperial |
| Lube/Non-Lube: | Non-Lubricated | Component Type: | Hub |
| Speed Max (rpm): | 2, 000 rpm | Torque Rating (in-lb): | 14, 200 in/lbs |
| Bore Size Max (in): | 4.75 in | Bore Size Min (in): | 2.625 in |
| UPC: | 662384006810 | Weight: | 14.35 LB |
| Packaged Length: | 13 Inches | Packaged Width: | 13.1 Inches |
| Packaged Height: | 4.5 Inches | HTC: | 8483.90.8010 |
