- Browning offers one of the largest selection of application shaft ready sprockets in the industry
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
80R72

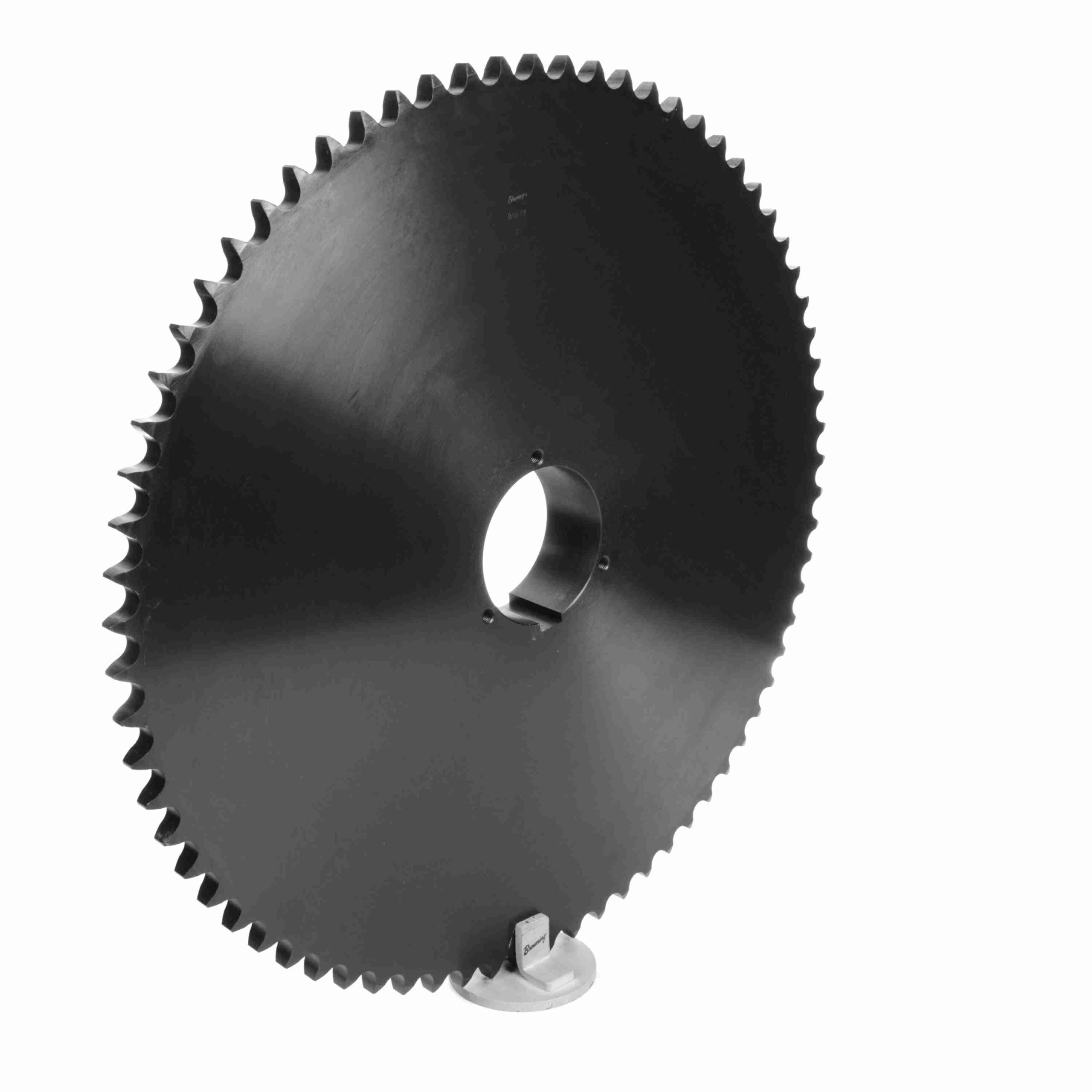

Browning Steel Bushed Bore Roller Chain Sprocket – 80R72
$1,555.95
Out of stock
Out of stock
| Product Type: | Bushed Roller Chain Sprocket | Pitch Diameter (in): | 22.926 in |
|---|---|---|---|
| Bore (Min) (in): | 1.125 in | Chain Used: | No. 80, 1 in. Pitch ANSI Chain |
| Material: | Steel | Bore (Max) (in): | 3.75 in |
| Number of teeth: | 72 | Bushing Used: | Split Taper |
| Chain Pitch (in): | 1 in | Bore Type: | Bushed Bore |
| Overall Length (in): | 3.15625 in | Outside Diameter (in): | 23.515 in |
| Number of Strands/Width: | 1 | Hub Diameter (in): | 5.375 in |
| Minimum Bore (in): | 1.125 | Maximum Bore (in): | 3.75 |
| Width Across Tooth Sets: | 0.575 | Pitch Type: | Single |
| Number of Hubs: | 1 | UPC: | 662289217144 |
| Weight: | 73.00 LB | Packaged Length: | 23.46 Inches |
| Packaged Width: | 23.46 Inches | Packaged Height: | 3.16 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | China |
