- Browning offers one of the largest selection of application shaft ready sprockets in the industry
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
80Q60

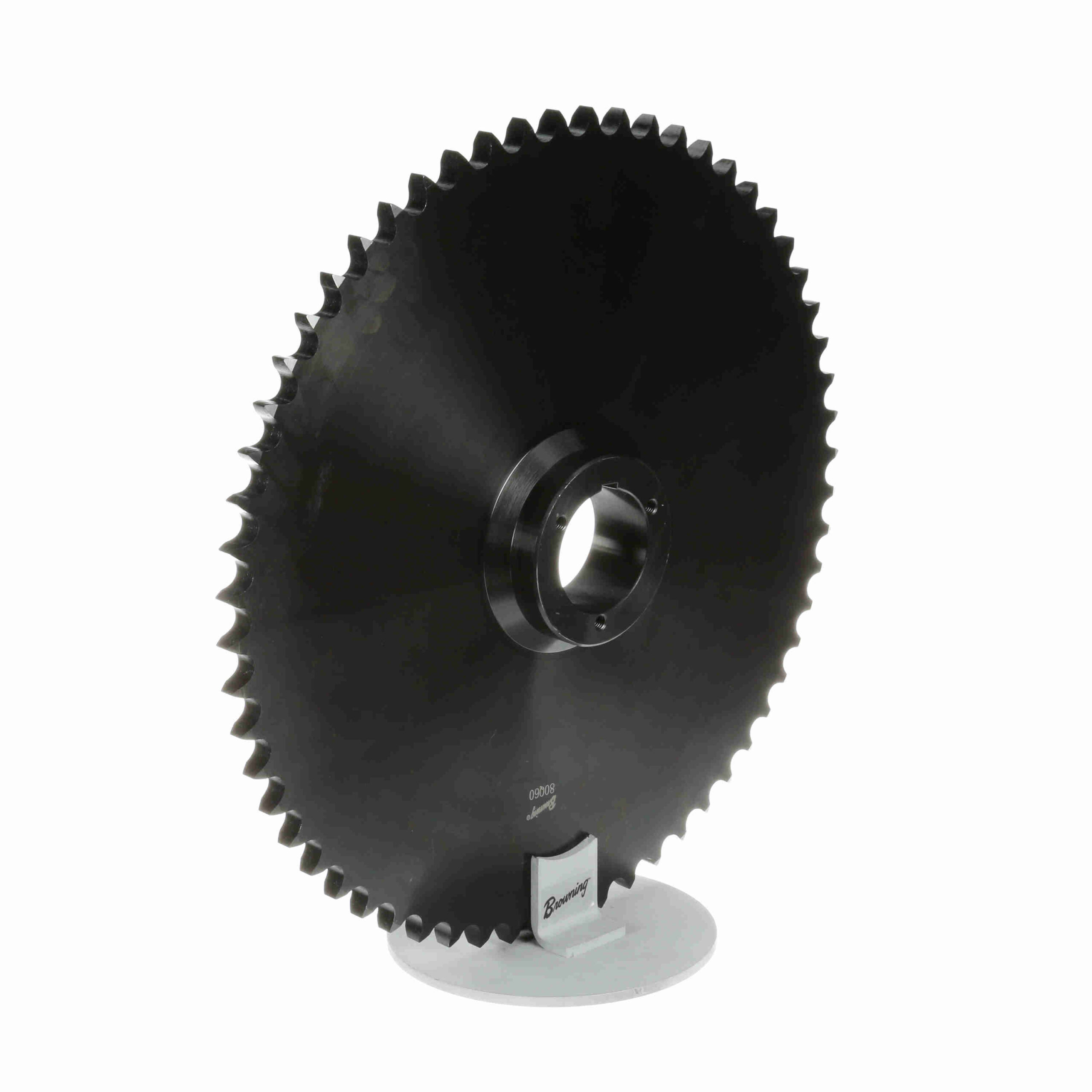

Browning Steel Bushed Bore Roller Chain Sprocket – 80Q60
$1,001.01
Out of stock
Out of stock
| Chain Used: | No. 80, 1 in. Pitch ANSI Chain | Bushing Used: | Split Taper |
|---|---|---|---|
| Bore (Max) (in): | 2.6875 in | Number of teeth: | 60 |
| Product Type: | Bushed Roller Chain Sprocket | Material: | Steel |
| Bore (Min) (in): | 0.75 in | Chain Pitch (in): | 1 in |
| Pitch Diameter (in): | 19.107 in | Outside Diameter (in): | 19.695 in |
| Bore Type: | Bushed Bore | Overall Length (in): | 2.828125 in |
| Number of Strands/Width: | 1 | Hub Diameter (in): | 4.125 in |
| Maximum Bore (in): | 2.6875 | Minimum Bore (in): | 0.75 |
| Number of Hubs: | 1 | Width Across Tooth Sets: | 0.575 |
| Pitch Type: | Single | UPC: | 662289287086 |
| Weight: | 48.78 LB | Packaged Length: | 19.70 Inches |
| Packaged Width: | 18.90 Inches | Packaged Height: | 1.20 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | China |
