- Browning offers one of the largest selection of application shaft ready sprockets in the industry
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
80Q36

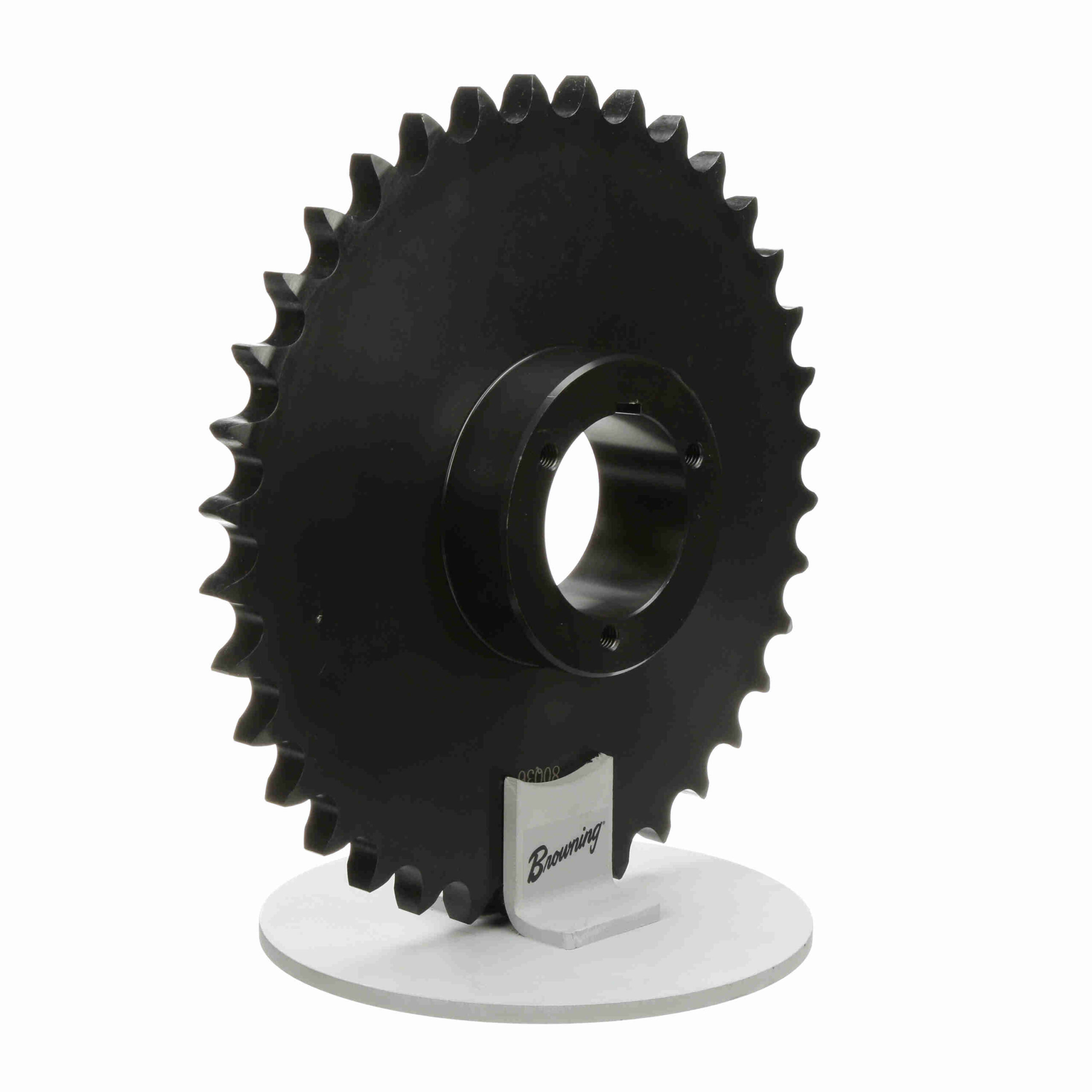

Browning Steel Bushed Bore Roller Chain Sprocket – 80Q36
$557.29
Out of stock
Out of stock
| Chain Pitch (in): | 1 in | Bore (Max) (in): | 2.6875 in |
|---|---|---|---|
| Bushing Used: | Split Taper | Pitch Diameter (in): | 11.474 in |
| Bore (Min) (in): | 0.75 in | Chain Used: | No. 80, 1 in. Pitch ANSI Chain |
| Number of teeth: | 36 | Product Type: | Bushed Roller Chain Sprocket |
| Material: | Steel | Overall Length (in): | 2.828125 in |
| Outside Diameter (in): | 12.03 in | Bore Type: | Bushed Bore |
| Number of Strands/Width: | 1 | Hub Diameter (in): | 4.125 in |
| Minimum Bore (in): | 0.75 | Maximum Bore (in): | 2.6875 |
| Width Across Tooth Sets: | 0.575 | Number of Hubs: | 1 |
| Pitch Type: | Single | UPC: | 662289136889 |
| Weight: | 18.83 LB | Packaged Length: | 12.70 Inches |
| Packaged Width: | 12.60 Inches | Packaged Height: | 2.60 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | China |
