- Browning offers one of the largest selection of application shaft ready sprockets in the industry
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
80Q32

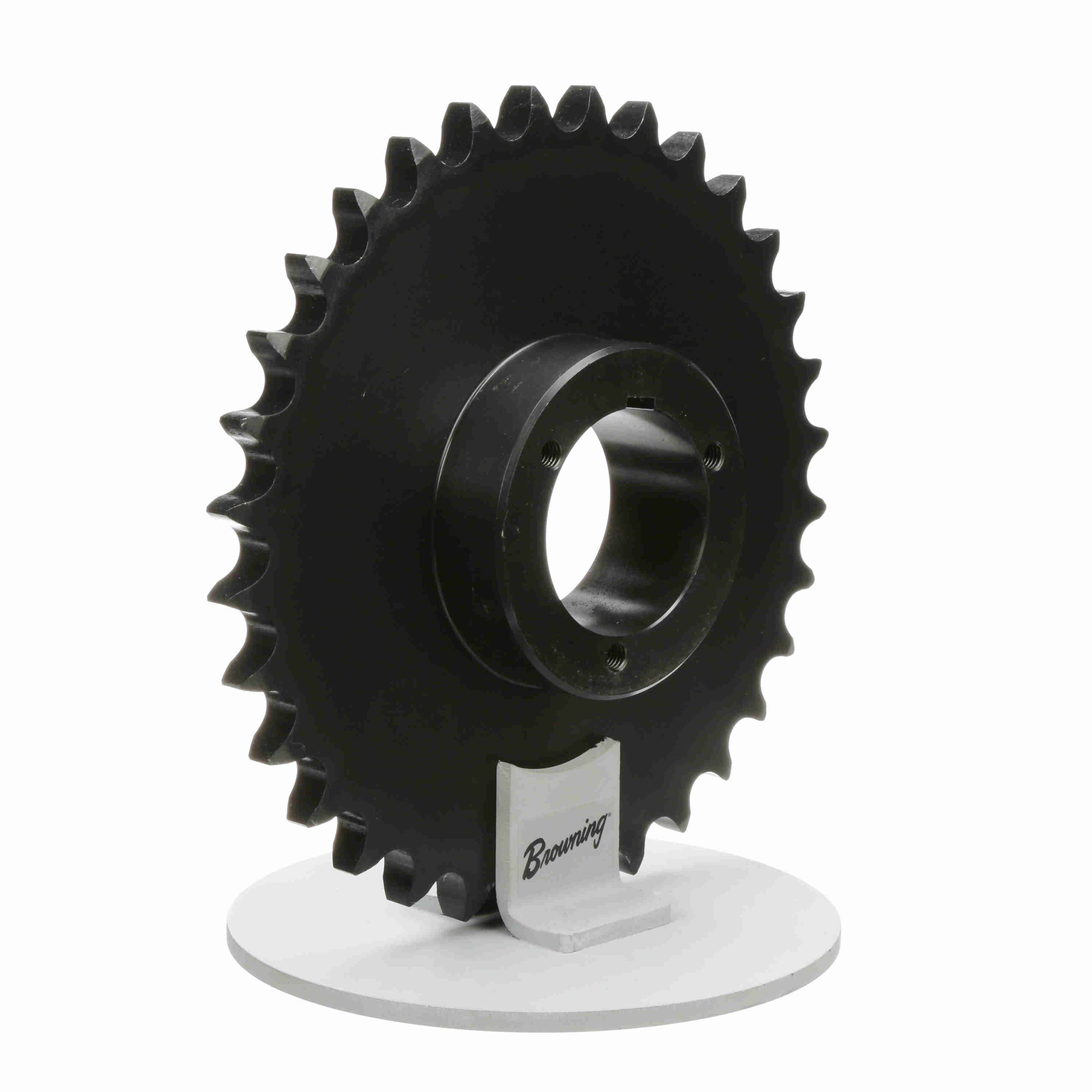

Browning Steel Bushed Bore Roller Chain Sprocket – 80Q32
$466.55
Availability: 7 in stock
Availability: 7 in stock
| Product Type: | Bushed Roller Chain Sprocket | Bore (Min) (in): | 0.75 in |
|---|---|---|---|
| Pitch Diameter (in): | 10.202 in | Material: | Steel |
| Chain Used: | No. 80, 1 in. Pitch ANSI Chain | Chain Pitch (in): | 1 in |
| Bore (Max) (in): | 2.6875 in | Bushing Used: | Split Taper |
| Number of teeth: | 32 | Outside Diameter (in): | 10.753 in |
| Bore Type: | Bushed Bore | Overall Length (in): | 2.828125 in |
| Number of Strands/Width: | 1 | Hub Diameter (in): | 4.125 in |
| Maximum Bore (in): | 2.6875 | Minimum Bore (in): | 0.75 |
| Number of Hubs: | 1 | Width Across Tooth Sets: | 0.575 |
| Pitch Type: | Single | UPC: | 662289106875 |
| Weight: | 13.80 LB | Packaged Length: | 11.06 Inches |
| Packaged Width: | 11.06 Inches | Packaged Height: | 2.25 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | China |
