- Browning offers one of the largest selection of application shaft ready sprockets in the industry
- Browning type A steel plate roller chain sprockets are offered in single pitch range of 25-200
80A40

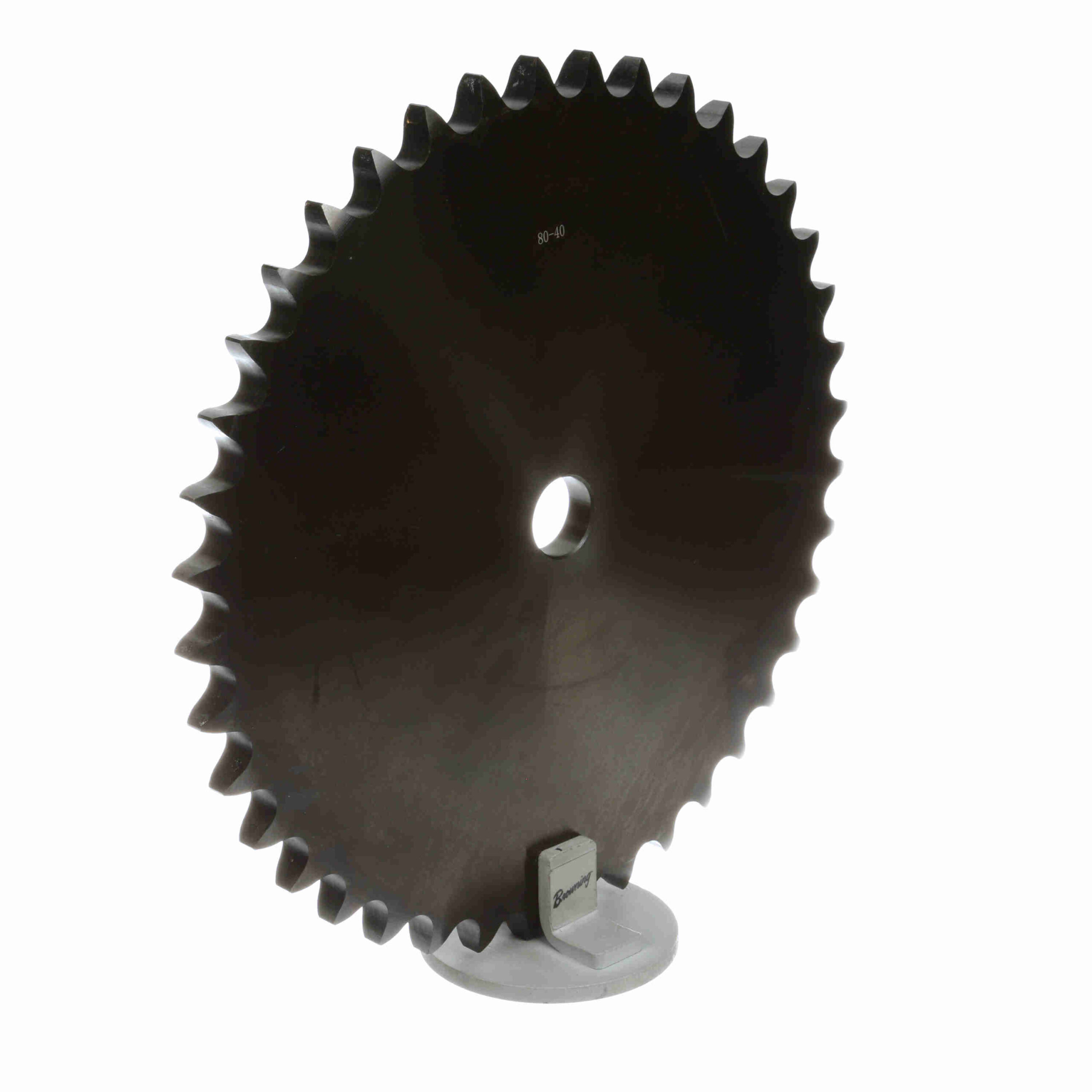

Browning Steel Minimum Plain Bore Roller Chain Sprocket – 80A40
Out of stock
| Chain Used: | No. 80, 1 in. Pitch ANSI Chain | Material: | Steel |
|---|---|---|---|
| Chain Pitch (in): | 1 in | Number of teeth: | 40 |
| Product Type: | Type "A" Plate Sprocket | Bore Type: | Minimum Plain Bore |
| Outside Diameter (in): | 13.306 in | Pitch Diameter (in): | 12.745495 in |
| Number of Strands/Width: | 1 | Bore (in): | 1.1875 in |
| Hub Type: | Type A | Length Through Bore (in): | 0.575 in |
| Maximum Bore (in): | 1 | Number of Hubs: | 0 |
| Hardened Teeth: | Non-Hardened Teeth | Width Across Tooth Sets: | 0.575 |
| UPC: | 662289182466 | Weight: | 20.09 LB |
| Packaged Length: | 13.50 Inches | Packaged Width: | 13.80 Inches |
| Packaged Height: | 1.10 Inches | HTC: | 8483.90.1050 |
| Country of Origin: | China |
