- Up to 10 degrees misalignment
- Resilient Design
- Absorbs Vibration
- Exposed and shrouded bolt configurations
802 MORFLEX FLANGE 1-5/8 FB

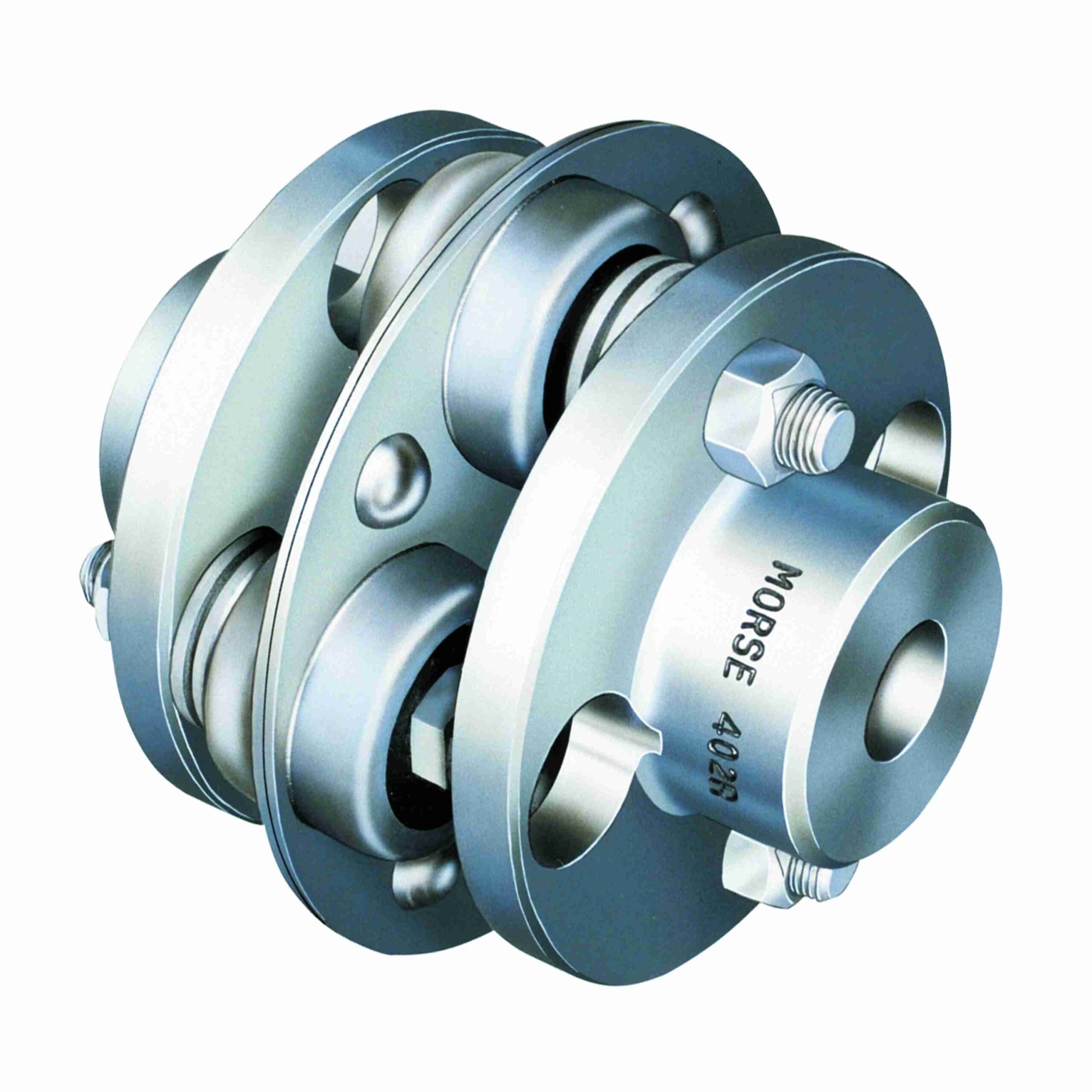

Morse Elastomeric Coupling – Size 802 – Finished Bore – 802 MORFLEX FLANGE 1-5/8 FB
Out of stock
| Max Bore w/SS at 180° to KW (in): | 2.5 in | Max. Bore w/SS over KW (in): | 2.25 in |
|---|---|---|---|
| Bore Type: | Finished Bore | Flange Type: | Round |
| Coupling Size: | 802 | Stock Bore (in): | 1.875 in |
| Measurement System: | Imperial | Lube/Non-Lube: | Non-Lubricated |
| Torque Rating (in-lb): | 4, 668 in/lbs | Speed Max (rpm): | 4, 400 rpm |
| Coupling Type: | Elastomeric Coupling | Torque Rating (ft-lb): | 389 ft/lbs |
| Bore Size Min (in): | 1.875 in | UPC: | 662288378402 |
| Weight: | 11.15 LB | Packaged Length: | 7.2 Inches |
| Packaged Width: | 7.4 Inches | Packaged Height: | 5.7 Inches |
| HTC: | 8483.90.8010 | Country of Origin: | Taiwan, Republic of China |
