- Unmatched Quality and Performance in Morse Brand Chain
- Far exceeds ANSI performance standards. Rigid manufacturing processes result in a fully-featured chain.
- Available from Stock
80-2 C/L C/P S/F

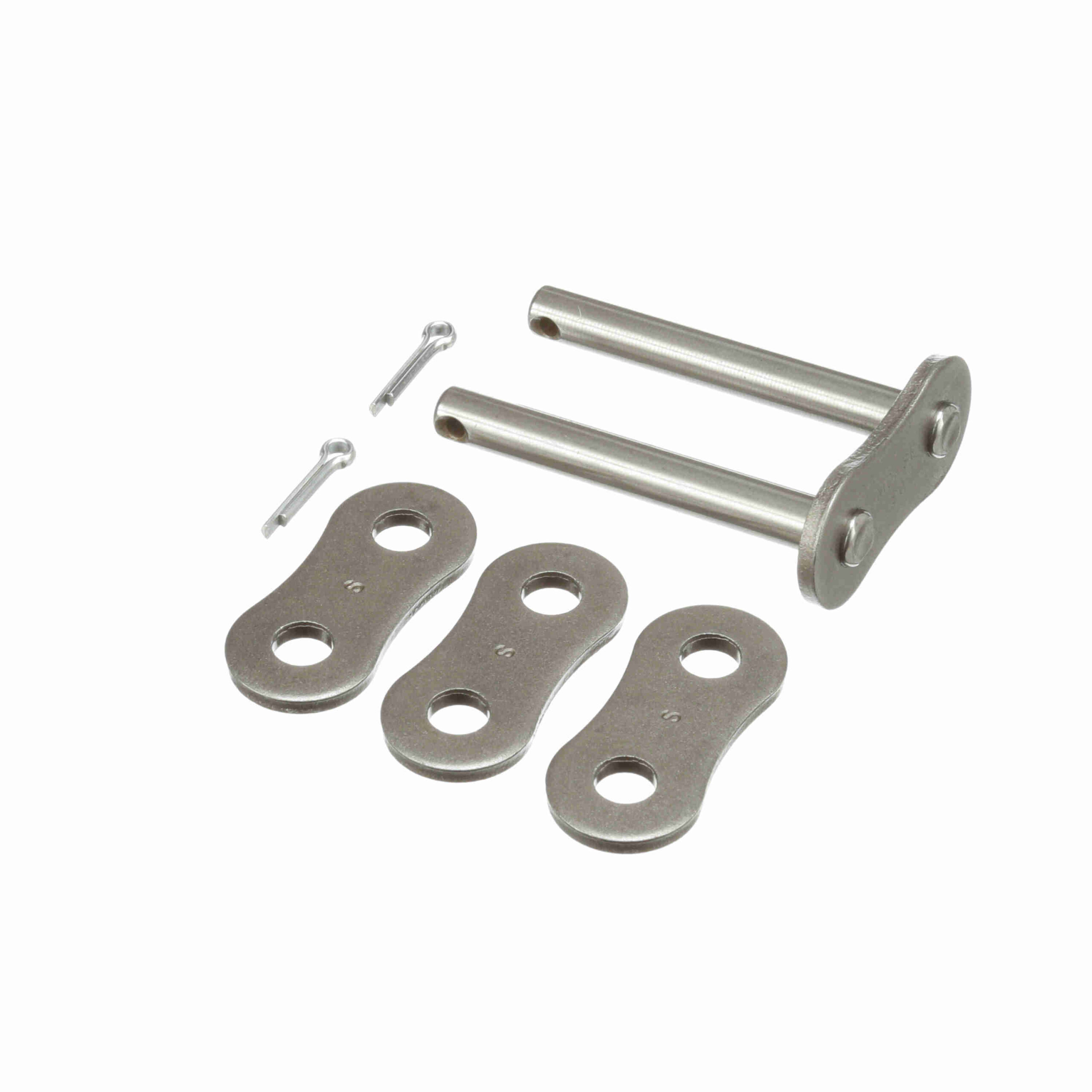

Morse Standard Roller Chain Cotter Pin Connecting Link – 80-2 C/L C/P S/F
$10.43
Out of stock
Out of stock
| Side Plate Cfg.: | Hourglass | Centerline to Opposite cotter Pin Side: | 1.216 |
|---|---|---|---|
| Roller Width (in): | 0.625 in | Pin Diameter (in): | 0.312 in |
| Average Ultimate Tensile Strength (psi): | 29, 000 | Plate Thickness: | 0.125 |
| Width Over Pins/Total Width: | 2.432 | Material: | Steel |
| Number of Strands/Width: | 2 | Inside Plate Height: | 0.934 |
| Chain Size: | 80 | Connecting Link - Slip Fit: | Cotter |
| Number of Connecting Links Included: | 5 | Roller Diameter (in): | 0.625 in |
| Centerline to Outside of cotter Pin: | 1.32 | Product Type: | Roller Chain |
| Chain Pitch (in): | 1 in | Chain Type: | Standard |
| Chain Construction: | Cottered | Link Type: | Connecting Link |
| UPC: | 662288468455 | Weight: | 0.26 LB |
| Packaged Length: | 3.45 Inches | Packaged Width: | 3.65 Inches |
| Packaged Height: | 1.15 Inches | HTC: | 7315.19.0000 |
| Country of Origin: | Taiwan, Republic of China |
